Product Overview
- Uses only 0.49 gallons of water per rack
- Cleans up to 243 racks per hour
- 4 stage washing process
- 1 hp wash pump motor; 1/3 hp rinse pump motor; 1/3 hp conveyor motor
- 208V, 3 Phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$519.00/Each
$14.99/Each
$14.99/Each
$178.99/Case
$82.49/Case
$184.49/Each
$118.99/Case
$61.99/Case
- Quantity
- 1/Each
- Shipping Weight
- 750 lb.
- Width
- 66 Inches
- Depth
- 25 1/8 Inches
- Height
- 56 1/2 Inches
- Conveyor Length
- 66 Inches
- Amps
- 50 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 Volts
- Wattage
- 15.75 Kilowatts
- Conveyor Horsepower
- 1/3 HP
- Conveyor Speed
- 6.75 Feet Per Minute
- Direction
- Left to Right
- High or Low Temp
- High Temp
- Interior Clearance
- 19 Inches
- Minimum Water Inlet Temperature
- 140 Degrees F (180 Recommended)
- Racks Per Hour
- 243
- Rinse Horsepower
- 1/3 HP
- Type
- Conveyor Dishwashers
- Wash Horsepower
- 1 HP
- Wash Tank Capacity
- 18.5 gal.
- Water Inlet Size
- 1/2 Inches
- Water Temperature
- 150 - 195 Degrees F
- Water Usage
- 0.49 Gallons Per Rack

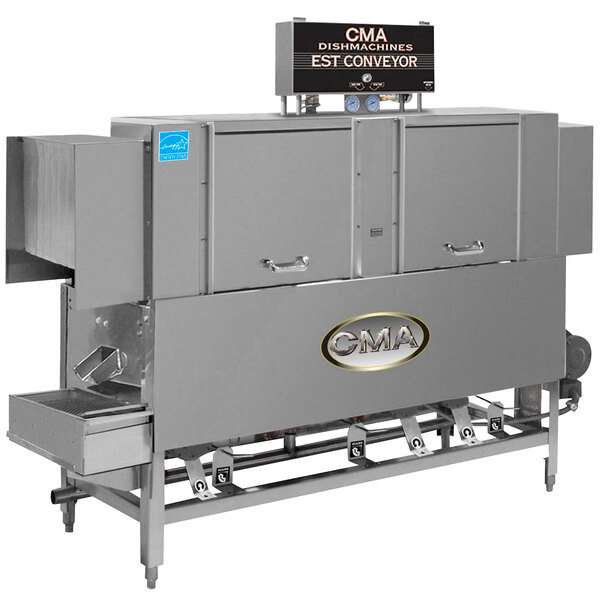

CMA Dishmachines EST-66 L/R 208/3 Details
Boost productivity and efficiency in your dish room with this CMA EST-66 high temperature conveyor dishwasher! Designed for high-output applications, this dish machine moves racks of soiled dishware and glassware left to right along a conveyor, and utilizes two wash stages, a power heated rinse, and final rinse stages to ensure clean results. This system lets it handle up to 243 racks per hour, while using only 0.49 gallons of water per rack. An auto start / stop feature takes all the guesswork out of operation, and it also boasts an automatic soil purging system that filters debris into a removable, external tray.
- Left to right conveyor feed
- 4 stage washing process with 2 wash stages, power heated rinse, and final rinse
- All stainless steel construction
- 12.75 kW wash tank heater; 3 kW rinse tank heater
- Automatic soil purging system
- Curtains easy to remove / replace for easy cleaning
- Auto start / stop
- Table limit switch and rack saver clutch system to protect machine, racks, and table from damage
- It requires a 208V, 3 phase electrical connection
Overall Dimensions:
Width: 66"
Depth: 25 1/8"
Height: 56 1/2"
Inside Chamber Clearance: 19"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
How can I be sure that this product will fit my space?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
