• Quantity Discounts!

$86.73/Each

Buy 1 - 2 $93.99/Each

  • Controls chemical delivery for mop sinks and janitorial applications
  • For use with a single sink
  • Dispenses one product; 4 gallon per minute dispensing
  • Uses a ball valve to control dispensing
  • Includes mounting hardware and metering tips for preset dilution ratios
  • Bilingual decals provide easy identification
  • Acts as an air gap to prevent backflow
  • Chemical dilution ratios of up to 7:1

UPC Code:

400012095023

Condition:

New
Shipping:

Special Order

Some items on our website are not normally stocked in our warehouses. These items are marked "Special Order" underneath the price on the item's page.

Please understand that Special Order items may not be able to ship within 1 business day like our regularly-stocked items.Some may be shipped directly from the manufacturer. Others might have to be ordered into our warehouse with the next order from that manufacturer and then shipped to you; this could take up to several weeks.

As a result, we urge you to contact us if you have questions about the delivery time of a Special Order item you wish to order.

Please note - we are not always able to cancel special order items once the order is placed. These items may also be non-returnable. Please contact us if you have any questions before ordering this item.

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

How To Install A Dema Pro-Fill Chemical Dispenser

How To Install A Dema Pro-Fill Chemical Dispenser

In this video, you will learn how to install a Dema pro-fill 1 chemical dispenser. Keep in mind that some of the parts needed for proper installation are not included. To begin, use a screwdriver to remove the knobs from the dispenser. You'll be able to separate the front cover from the rest of the unit. Loosen the screws, again using a screwdriver. Remove the unit from its mounting plate. With a level, position the mount on the wall and mark where the screws will go. To do this, use a pen, pencil, or marker to dot the wall through the screw holes on the mounting plate. Using a drill, drill into the wall where you made the marks. You should make a total of four holes. Once you do, insert the screw anchors into the holes and then insert the screws into the anchors. Do not push the screws flush into the wall; you need to leave space to hang the mounting plate. Once you position the plate properly against the wall, you can tighten the two top screws to secure the plate.Next, hang the dispensing unit, which hooks onto the two bottom screws. Tighten the screws,, and then grab the water hose, which connects to the spout on the dispensing unit. You will first have to untwist and remove the bottom piece of the spout. Connect the spout and the hose by twisting the two pieces together. Continue the installation by screwing the connector onto a water source. The connector has multiple parts, so make sure to attach them in the proper order. After you finish, connect the dispensing tube, and use the dilution guide and included chart to select the appropriate metering tip, and then screw it on the dispensing tube. You'll need the drill for this next step, so get it ready. Locate the cap, and then drill a hole through it. Attach the cap, weight, and foot valve to the chemical tubing. To do this, feed the tubing through the hole in the cap, and then push the weight onto the tubing. The valve should then be pushed into the end of the tube so that the skinny end is inserted. Attach the chemical tubing to the metering tip, and place the other end of the tube into the chemical. Screw the cap on the chemical container and replace the dispenser cover. Reattach the knobs with a screwdriver. Then, by turning the knobs, prime the lines before correctly positioning the knobs for use.

Copy and paste the embed code above.

Did you know that chemical dispensers are important safeguards against improperly handling dangerous, corrosive chemicals? By watching this short how-to video, learn how easy it is to install the Dema pro-fill chemical dispenser to make quick and safe work of mixing water with harsh cleaning chemicals to sanitize your facility.

Specs
Width 4 Inches
Depth 2 Inches
Height 8 1/4 Inches
Dispensing Rate 4 gallons per minute
Pump Application Liquids
Type Dispensers

Details

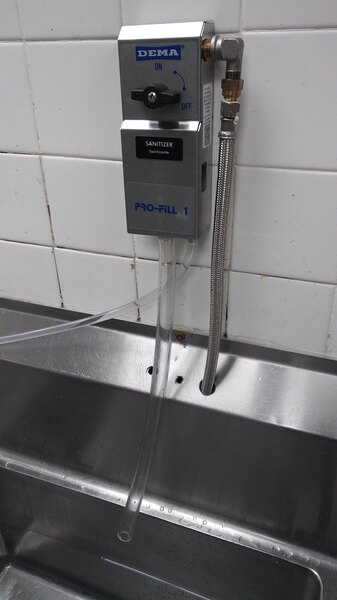

Properly fill sinks and mop buckets by adding this Dema ProFill 651AG2 single sink dispenser to your chemical handling system. This dispenser quickly and easily mixes water with cleaning chemicals and dispenses a single product into a mop sink, mop bucket, or cleaning spray bottles with just a simple turn of the single ball valve.

By adding this dispenser to your janitorial system, you'll be able to replace an old, malfunctioning pump, or create a new dispensing system that protects your employees by reducing the amount of concentrated chemicals that they need to physically handle. This dispenser also acts as an air gap to prevent backflow of dirty water into your clean water supply.

This unit has a 3/8" compression fitting for a water inlet and includes mounting hardware for convenient installation. This chemical dispenser system is a great choice for economically-minded businesses. While the pump itself may require more of an initial investment, you won't be locked into a contract to purchase the corresponding chemicals at inflated prices! In fact, you can choose any compatible chemical from any source so that your overall costs will be lower in the long run.

Overall Dimensions:
Width: 4"
Depth: 2"
Height: 8 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
