• Quantity Discounts!

$114.48/Each

Buy 1 - 2 $118.99/Each

  • Controls chemical delivery to compartment sinks or mop sinks
  • For use with a two or three compartment sink
  • Dispenses two products; 4 gallon per minute dispensing

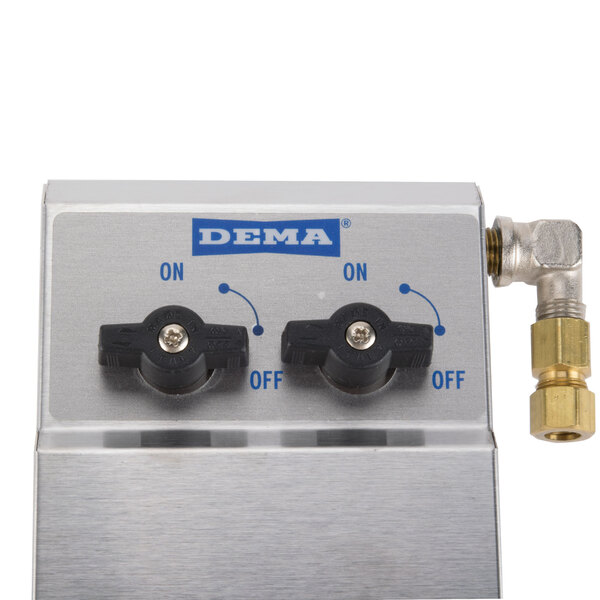

  • Uses ball valves to control dispensing
  • Includes mounting hardware and metering tips for preset dilution ratios
  • Bilingual decals provide easy identification
  • Acts as an air gap to prevent backflow
  • Chemical dilution ratios of up to 7:1

UPC Code:

400012094989

Condition:

New
Shipping:

Special Order

Some items on our website are not normally stocked in our warehouses. These items are marked "Special Order" underneath the price on the item's page.

Please understand that Special Order items may not be able to ship within 1 business day like our regularly-stocked items.Some may be shipped directly from the manufacturer. Others might have to be ordered into our warehouse with the next order from that manufacturer and then shipped to you; this could take up to several weeks.

As a result, we urge you to contact us if you have questions about the delivery time of a Special Order item you wish to order.

Please note - we are not always able to cancel special order items once the order is placed. These items may also be non-returnable. Please contact us if you have any questions before ordering this item.

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

View All Items
How To Install A Dema Pro-Fill 2 Chemical Dispenser

How To Install A Dema Pro-Fill 2 Chemical Dispenser

In this video, you'll learn how to install a Dema pro-fill 2 chemical dispenser. Please note that some of the required parts for proper installation are not included. Start off by cleaning the surface where you are going to be mounting the dispenser. Next, use a screwdriver to remove the knobs from the unit. Take the front plate off, and then loosen the screws on the remaining unit. Remove it from the mounting plate. Grab a level and position the mount on the wall where you want to install it. Using a pen, pencil, or marker, mark the wall where you want to drill holes for mounting. After drilling, insert the screw anchors and then the screws. Make sure you leave room on the screws to hang the mounting plate. Once the plate is hung, tighten the screws to secure it to the wall, and then hang the dispensing unit. Depending on the room's layout, you may need to drill a hole in order to run the water hose up to the spigot on the side of the unit. Connect the two pieces by twisting. The next step requires you to connect the unit to the existing water line. It's helpful to also make distinguishing marks on the tubing to indicate that it's being used for a chemical. Run the tubing alongside the water house, and then use the dilution guide and included chart to select the appropriate metering tips. Once you know what tips to use, screw them on and attach to the tubing. Next, attach the dispensing tubing by pushing it over the two, large, white spigots. Replace the dispenser cover, attach the knobs, and then screw them in. With a drill, drill a hole through the cap of the chemical container and attach the cap, weight, and foot valve to the chemical tubing. The weight should go on first. Once finished, insert the ends of the two tubes into separate chemical containers, remembering to secure the caps. Don't forget to prime the lines before use.

Copy and paste the embed code above.

Chemical dispensers make handling dangerous chemicals a safer process, but only if the dispenser is installed correctly! Watch this short video to learn how to properly install the Dema pro-fill 2 chemical dispenser in your facility.

Specs
Width 5 3/4 Inches
Depth 2 Inches
Height 8 1/4 Inches
Dispenser Type Pump
Dispensing Rate 4 gallons per minute
Pump Application Warewashing
Type Dispensers

Details

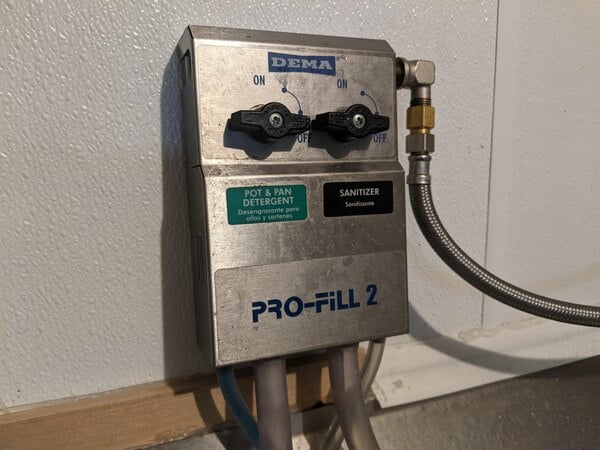

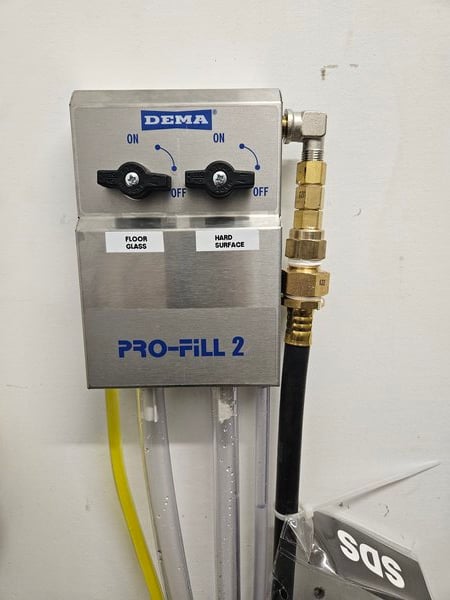

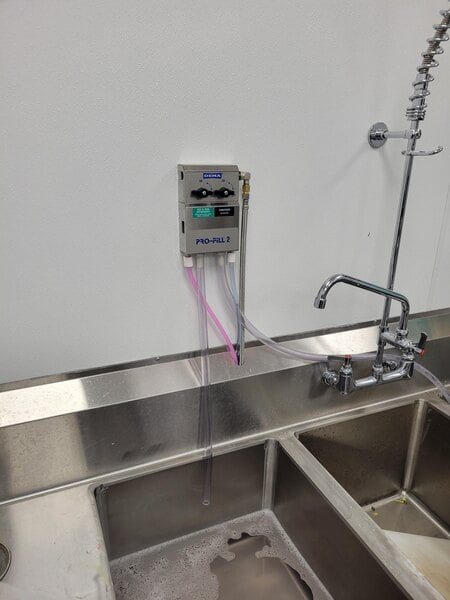

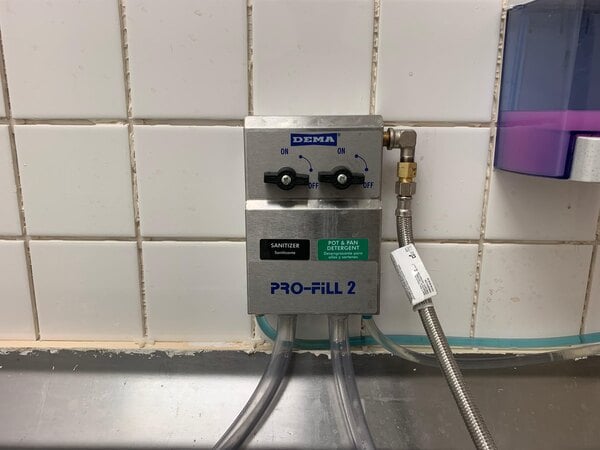

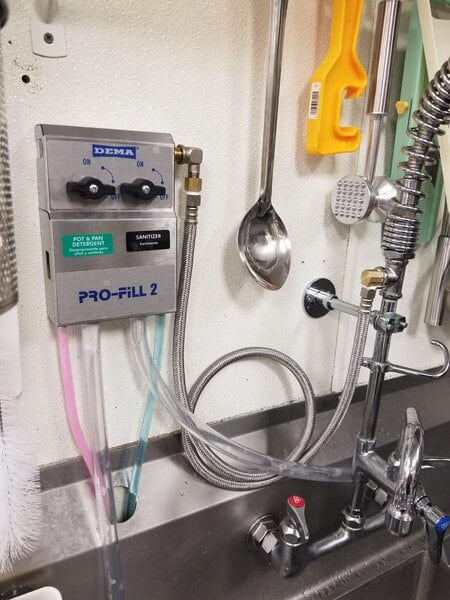

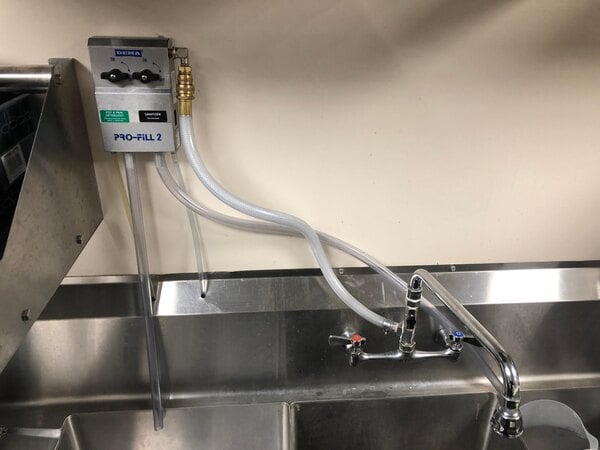

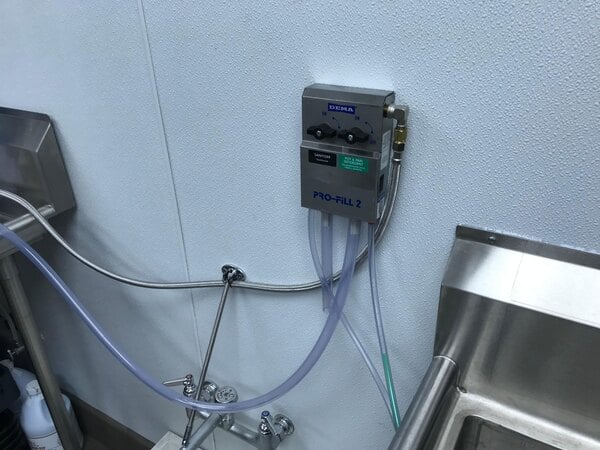

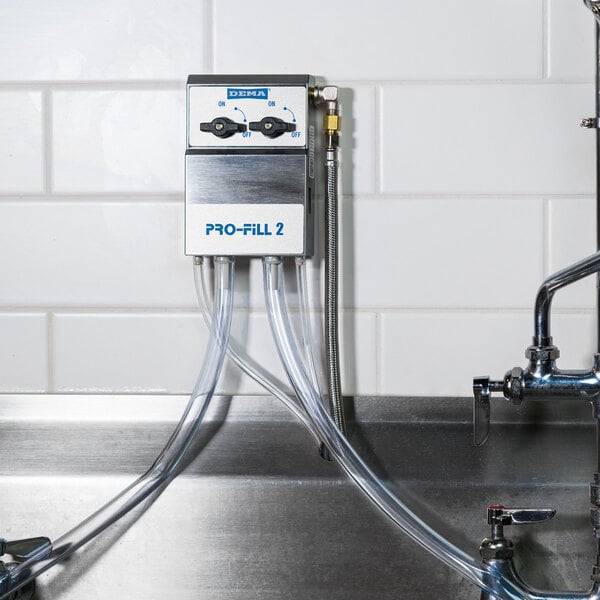

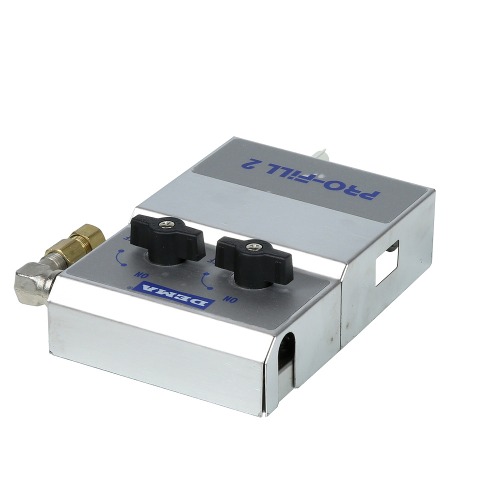

Properly fill warewashing sinks by adding this Dema ProFill 2 652AG dual chemical dispenser to your chemical handling system. This dispenser quickly and easily mixes water with manual dish washing and sanitizing chemicals and dispenses two separate products into a compartment sink with just a simple turn of the ball valves.

By adding this dispenser to your kitchen, you'll be able to replace an old, malfunctioning pump, or create a new dispensing system that protects your employees by reducing the amount of chemicals that they need to physically handle. This dispenser also acts as an air gap to prevent backflow of dirty water into your clean water supply.

This dispenser has a 3/8" compression fitting for a water inlet and includes mounting hardware for convenient installation. In addition, this model comes with a set of bilingual decals that let you clearly label the dispenser with the types of product that it will dispense.

This chemical dispenser system is a great choice for economically-minded businesses. While the pump itself may require more of an initial investment, you won't be locked into a contract to purchase the corresponding chemicals at inflated prices! In fact, you can choose any compatible chemical from any source so that your overall costs will be lower in the long run.

Overall Dimensions:
Width: 5 3/4"
Depth: 2"
Height: 8 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
