Other Available Voltages:
- Cleans up to 60 racks per hour
- Uses only 1.24 gallons of water per cycle
- Configured for high temperature operation with use of external booster heater (sold separately)
- 27" door opening for larger items; split door feature provides sheet pan clearance
- 208/240V, 3 Phase; 1 hp wash pump
Works WithView All Items
$122.49/EachOut Of Stock
$57.99/CaseOut Of Stock
- Noble Chemical 8 lb. / 128 oz. Power Green Environmentally Friendly Solid Dish Machine Detergent - 4/Case
$122.99/CaseOut Of Stock
CMA Dishmachines CMA-180TC NB 208/2403 Specs
- Shipping Weight
- 353 lb.
- 25 1/2 Inches
- 25 Inches
- 70 Inches
- Dishwasher Height
- 24 - 26 Amps
- 60 Hertz
- 3 Phase
- 208/240 Volts
- Dishwasher Style
- Energy Star Qualified
Made in America
- High or Low Temp
- High Temp
- 1 HP
- Interior Clearance
- 27 Inches
- Minimum Water Inlet Temperature
- 140 Degrees F
- Number of Cycles
- 1 Cycle
- Plug Type
- Racks Per Hour
- Single Rack
- Wash Cycle Time
- 55 Seconds
- Wash Tank Capacity
- 8 gal.
- Water Inlet Size
- 3/4 Inches
- Water Temperature
- 155 - 195 Degrees F
- Water Usage
- 1.24 Gallons Per Rack
CMA Dishmachines CMA-180TC NB 208/2403 Details

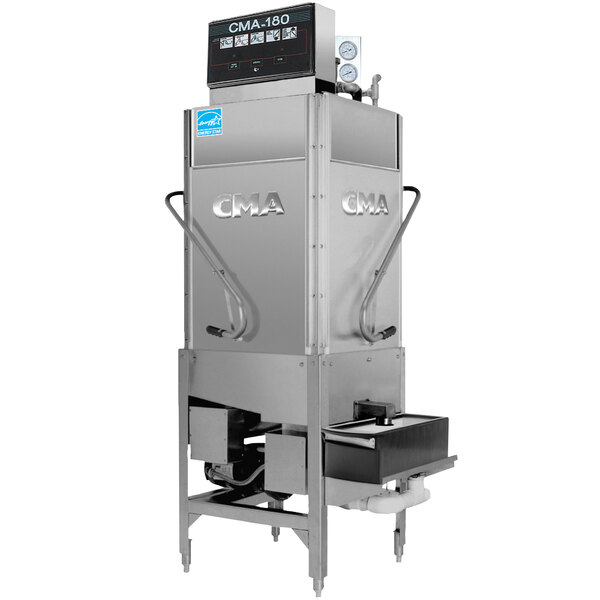

Use this CMA-180TC single rack high temperature tall corner dishwasher to quickly and efficiently clean soiled dishware and glassware! This corner dish machine is designed to accept racks of dish and glassware in through the front and to have them removed from the side, and it can wash up to 60 racks per hour with only 1.24 gallons of water per cycle! Additionally, it boasts a 27" door opening and split door design to accommodate larger items such as sheet pans, while still keeping the overall height (with door open) at only 93 1/2". Upper and lower stainless steel wash arms are removable and interchangeable for easy cleaning, and it incorporates an automatic soil purging system which traps plate debris in a removable external tray, keeping the wash water clean.
- Tall 27" door clearance with split door design to accommodate sheet pans
- Chemical resistant 7 kW heater
- 8 gallon wash tank; 1 hp wash pump motor
- All stainless steel construction
- Top mounted control box with rack counter, extended wash/delimer switch, and easy to read temperature gauges
- Automatic start / stop for easy use
- Upper and lower wash arms are interchangeable for easy operation
- It requires a 208/240V, 3 phase electrical connection
Width: 25 1/2"
Inside Chamber Clearance: 27"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/4" Water Connection
This unit comes with a 3/4" water connection.
