Product Overview

  • 16 gallon storage capacity
  • Castone lined tank
  • 13 kW
  • 208V, 3 Phase
Quality Rating:
UPC Code:400011006723

Hatco S-13 208/3 Specs

Quantity
1/Each
Shipping Weight
200 lb.
Width
23 1/2 Inches
Depth
23 Inches
Height
31 3/8 Inches
Amps
38 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
13 Kilowatts
Features
Made in America  NSF Listed
Flow Rate
77 - 135 GPH
Plug Type
Hardwire
Power Type
Electric
Tank Capacity
16 Gallons
Usage
Heavy Duty

Hatco S-13 208/3 Details

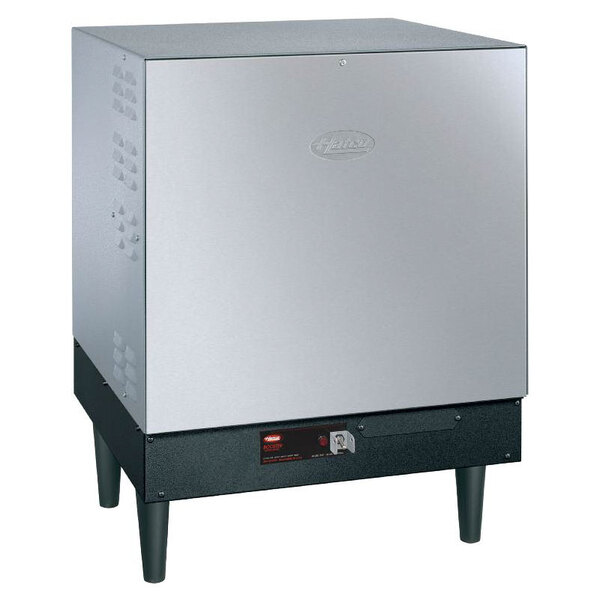

The space saving Hatco S-13 13 kW Imperial booster water heater has a 16 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware! This electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch, and features fiberglass insulation to minimize heat loss. A sizing chart is included at the end of the Spec Sheet to help you match the correct booster heater to your needs.

To help reduce energy costs, this unit operates by step loading, or using its heating elements only as needed. When first turned on, the booster heater uses the first of its several heating element banks; as more demand is placed on creating hot water, the other banks of elements will begin to heat, one after another. This process limits how many elements are operating at any given time to ensure that energy is not wasted.

- Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easy servicing

- Gauges for temperature / pressure

- Stainless steel front panel and powder coated body provide long-lasting durability

- Metal sheathed heating elements

- 6" legs

Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit. Product failure caused by liming or sediment buildup is not covered under warranty.

Dimensions & Specs:
Width: 23 1/2"
Depth: 23"
Height (including legs): 31 3/8"
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 135 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 77 GPH

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can this booster water heater replace a primary water heater?

No, it is not designed for that purpose. This unit should only be used as a secondary water heater.
Ask your own question!
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Classified, US & Canada

    UL Classified, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) for safe use against a limited range of hazards or usage conditions, within applicable safety standards required for safe use in the United States and Canada.
