  • Dual outlets simultaneously supply multiple pieces of equipment
  • 60,000 gal. capacity; 5 GPM flow rate; 5 micron rating
  • Sanitary Quick Change (SQC) with 1/4 of a turn
  • Reduces sediment, chlorine taste, and odor
  • Recommended for ice machines, coffee brewers, and cold beverage applications
UPC Code: 00016145266263
3M DP Systems

3M DP Systems

Provide top-quality water with 3M Water Filtration Products! 3M's dual port systems offer two outlets for function with multiple pieces of equipment. This makes them ideal for combo use with ice, coffee, steam or cold beverage machines. One side even has built-in scale inhibition to protect equipment from scale buildup. These models also feature high flow rates and capacities. Plus, with multi-stage filtration, no pre-filter is needed! Each model uses Integrated Membrane Pre-Activated Carbon Technology. This filtration media includes an activated carbon block and membrane that reduce chlorine taste and odor. This lowers the level of particulates, cyst, and in select 3M models, even bacteria in water. They even help prolong cartridge life and reduce change-out frequency. The Sanitary Quick-Change encapsulated cartridges enable fast, easy removal as well. For superior quality and efficiency, count on 3M dual port systems.

Copy and paste the embed code above.

Serving top-quality water is easy with the help of 3M's dual port systems! Learn more about these efficient systems by watching this video.

3M Water Filtration Products 5624204 Specs
Width 25 1/16 Inches
Height 24 1/16 Inches
Capacity 60,000 Gallons
Filter Type Bacteria / Viruses





Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating 5 Microns
Service Flow Rate 5 GPM
Style Sanitary Quick Change
Type Filtration Systems

Customer questions about this product

My water filter hasn’t been used since the COVID-19 shutdowns, does my cartridge need replaced?
If you haven’t used your water filter for a prolonged period of time, the cartridges should be replaced. Leaving a filter unused means that water has sat in the cartridge and there is potential for micro biologic growth. Please reference your user manual or contact customer service with any questions.
Ask your own question!

3M Water Filtration Products 5624204 Details

This 3M DP295-CL water filter system is the perfect way to provide top-quality water for your business! This system is designed to filter for scale, sediment, chloramines, and chlorine taste / odor in your water supply, and is a great choice when you need to operate multiple ice machines, and coffee brewers, carbonators, and cold beverage units simultaneously. This keeps your water tasting fresh and clean, and ensures that the equipment using that water creates a quality finished product to serve to your customers. It boasts a 5 micron rating and a flow rate of 5 GPM, while its 12 month / 60,000 gallon capacity changeout time gives you plenty of use between cartridge replacements.

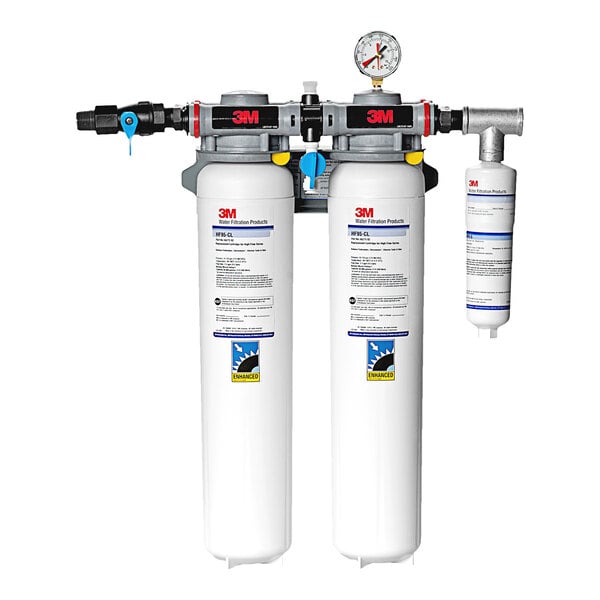

Two separate streams exit the manifold. Both streams have reduced sediment, chloramines, and chlorine taste / odor. One stream also has added scale-inhibition media from a dedicated cartridge. And when it is time to replace the cartridge, the process couldn't be easier thanks to its encapsulated quick-change design. Simply give the cartridge a 1/4 turn to remove, and replace with a new one. The system comes with a 2-cartridge manifold, pressure gauge, inlet water shutoff valve, outlet check valves, mounting brackets, (2) filter cartridges, and (1) scale inhibition cartridge. The inlet and outlet connections are 3/4" NPT.

Overall Dimensions:
Width: 25 1/16"
Height: 24 1/16"

  • 3/4

    3/4" Water Connection

    This unit comes with a 3/4" water connection.
