Fuel Type: Liquid Propane

Installation Services

Check if installation is currently available for your area.

Usually Ships in 6 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 24", 7/8" thick thermostatic griddle perfect for frying and searing
  • 6 open top, 30,000 BTU burners with lift off cast-iron grates
  • Refrigerated base keeps cold food close by and ready to use
  • 35,000 BTU standard oven with porcelainized interior
  • R-404A refrigerant; 1/3 hp compressor; liquid propane connection required
UPC Code:400013249937

Vulcan 60RS-24GT6BP Specs

Quantity
1/Each
Shipping Weight
1015 lb.
Width
60 Inches
Depth
34 Inches
Height
58 Inches
Griddle Width
24 Inches
Nominal Width
60 Inches
Burner BTU
30,000 BTU
Control Type
Thermostatic
Features
Made in America  NSF Listed
Gas Connection Size
1 Inch
Installation Type
Freestanding
Number of Burners
6 Burners
Number of Ovens
1 Oven
Plate Thickness
7/8 Inch
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Range Base Style
Standard Oven / Refrigerated Chef Base
Refrigerant Type
R-404A
Top Configuration
Burners with Right Griddle
Total BTU
220,000 BTU
Usage
Medium Duty

Vulcan 60RS-24GT6BP Details

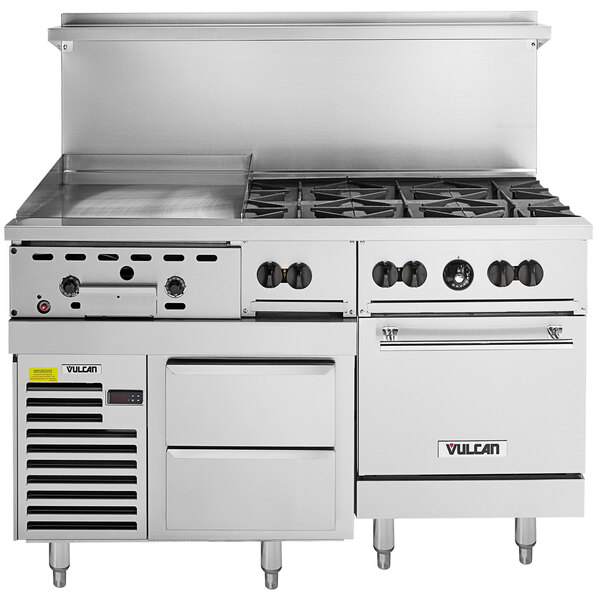

Add an invaluable piece of cooking equipment to your busy commercial kitchen with this Vulcan 60RS-24GT6B Endurance 60" liquid propane gas range with 6 burners, a 24" thermostatic griddle, standard oven, and refrigerated base! A great way to produce consistently high-quality food while getting the most out of your operation's valuable floor space, this single versatile machine is equipped to handle a variety of tasks. Since this unit features a standard oven and refrigerated base, you can handle your baking and warming needs while also keeping proteins within reach in the refrigerated base until it's time to prepare them. The 7/8" thick, 24" wide griddle offers plenty of cooking space for pancakes, bacon, burgers, or cheesesteaks, and even features a 4" grease trough for easy cleanup. And for the chef who is looking for precise temperature control, the thermostatic controls allow you to set the temperature of the griddle top to suit the cooking requirements of different foods.

Each of the 6 burners delivers 30,000 BTU of heating power, and thanks to the lift-off heads, cleaning and maintenance is a simple process. The 12" x 14 1/2" rear lift-off cast iron grates and front 12" x 12 1/2" lift-off grates allow easy access to the burners while supporting your largest stock pots and frying pans. For quick ignition, the unit comes with a shrouded flash tube pilot system per two burners.

For an additional charge, this item features a flame safety upgrade that protects against unexpected outages by monitoring each standing pilot. If one is extinguished, the gas flow halts to that independent burner section while unaffected burners remain lit. Easily restart the burner using a manual ignition process when the burner is secure.

This range has a standard bakery depth oven that delivers 35,000 BTU for maximum efficiency. two oven racks are included, and with four rack positions, you can customize the cavity to best suit your requirements. With controls located in a cool zone, the oven may be used by itself or in conjunction with the range top. The oven's bottom and door panel is porcelainized for easy cleanup.

The refrigerated base includes 2 heavy duty drawers that can accommodate 12" x 20" x 6" pans. The drawers remain at 34-38 degrees Fahrenheit even when frequently opened and closed in a warm kitchen environment. The refrigeration system uses R-404A refrigerant and runs an off-cycle defrost.

A fully welded frame combines with the stainless steel front, sides, backriser, and lift-off high shelf to ensure long-lasting use in your commercial kitchen. 6" stainless steel adjustable legs come standard. A liquid propane gas connection are required for operation.

Overall Dimensions:
Left to Right: 60"
Front to Back: 34"
Height: 58"

Oven Dimensions:
Left to Right: 26 3/8"
Front to Back: 27"
Height: 14"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1" Gas Connection

    1" Gas Connection

    This unit comes with a 1" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Resources and Downloads for
Vulcan 60RS-24GT6BP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
