Fuel Type: Natural Gas
Installation Services
Product Overview
- 8 open top, 30,000 BTU burners
- Robust stainless steel construction
- Refrigerated base keeps cold food close by and ready to use
- Lift off cast-iron grates allow easy access to burners
- 240,000 BTU; R-404A refrigerant; 1/3 hp compressor; natural gas gas connection required
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
$677.00/Each
$431.00/Each
$4,615.00/Each
$4,100.00/Each
$566.00/Set
$174.99/Each
$510.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 720 lb.
- Width
- 48 Inches
- Depth
- 34 Inches
- Height
- 58 Inches
- Nominal Width
- 48 Inches
- Burner BTU
- 30,000 BTU
- Features
- Made in America NSF Listed
- Gas Connection Size
- 1 Inch
- Installation Type
- Freestanding
- Number of Burners
- 8 Burners
- Number of Ovens
- None
- Plug Type
- NEMA 5-15P
- Power Type
- Natural Gas
- Range Base Style
- Refrigerated Chef Base
- Refrigerant Type
- R-404A
- Top Configuration
- Burners
- Total BTU
- 240,000 BTU

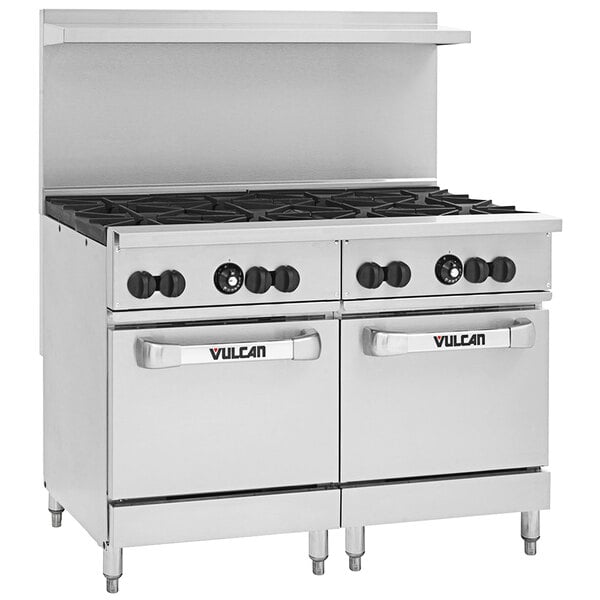

Vulcan 48R-8BN Details
Build the kitchen best suited for your needs with this Vulcan 48R-8B Endurance natural gas range with 8 burners and a refrigerated base! This heavy-duty, versatile piece of cooking equipment is perfect for when you need one piece of equipment to do multiple tasks. Since this unit features 8 open top burners with a refrigerated base, you can fry and simmer on top while eliminating wasted space by storing cold food right below.
Each of the 8 burners delivers 30,000 BTU of heating power, and thanks to the lift-off heads, cleaning and maintenance is a simple process. The 12" x 14 1/2" rear lift-off cast iron grates and front 12" x 12 1/2" lift-off grates allow easy access to the burners while supporting your largest stock pots and frying pans. For quick ignition, the unit comes with a shrouded flash tube pilot system per two burners.
For an additional charge, this item features a flame safety upgrade that protects against unexpected outages by monitoring each standing pilot. If one is extinguished, the gas flow halts to that independent burner section while unaffected burners remain lit. Easily restart the burner using a manual ignition process when the burner is secure.
The refrigerated base includes 2 heavy duty drawers that can accommodate 12" x 20" x 6" pans. Since the drawers have a self-closing and stay-open feature, they make loading and unloading easy. The drawers remain at 34-38 degrees Fahrenheit even when frequently opened and closed in a warm kitchen environment. The refrigeration system uses R-404A refrigerant and runs an off-cycle defrost.
A fully welded frame combines with stainless steel front, sides, backriser, and lift-off high shelf to ensure long-lasting use in your commercial kitchen. Stainless steel 6" adjustable legs come standard. A natural gas connection is required for operation.
Overall Dimensions:
Left to Right: 48"
Front to Back: 34"
Height: 58"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I modify this item?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
1" Gas Connection
This unit comes with a 1" gas connection to be installed by a professional.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
Resources and Downloads for
Vulcan 48R-8BN
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
