Vulcan 4VHG50DF-LP QuickFry Series 200 lb. Liquid Propane 4 Unit Floor Fryer with Digital Controls and KleenScreen PLUS Filtration System - 280,000 BTU

Vulcan 4VHG50DF LP Details

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 200 lb. total, this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 13 3/8" x 14 1/8" frying area per tank, this tube-style fryer system delivers 280,000 BTU of power and comes with 2 twin fry baskets per tank, so you can get to frying as soon as you fill the tank! This fryer's output capacity can produce up to 69 lb. of 1/4" french fries per hour per tank.

This fryer is equipped with user-friendly solid state digital controls that allow the operator to cook with actual time or compensating time. Per tank, it features two countdown timers, an automatic and manual boil-out mode, and a digital temperature display that shows Fahrenheit or Celsius for added convenience. This fryer can be adjusted to provide a precise 150 to 390 degrees Fahrenheit temperature control within +/- 2 degrees Fahrenheit from the set point. This accurate temperature control combined with the unit's four heat exchanger tubes per tank allows the oil temperature to recover rapidly as food is immersed for delicious and consistent results every time. An electric matchless ignition system combined with a standard preheat cycle and two melt modes per tank allows you to gradually heat up your oil and help preserve its life.

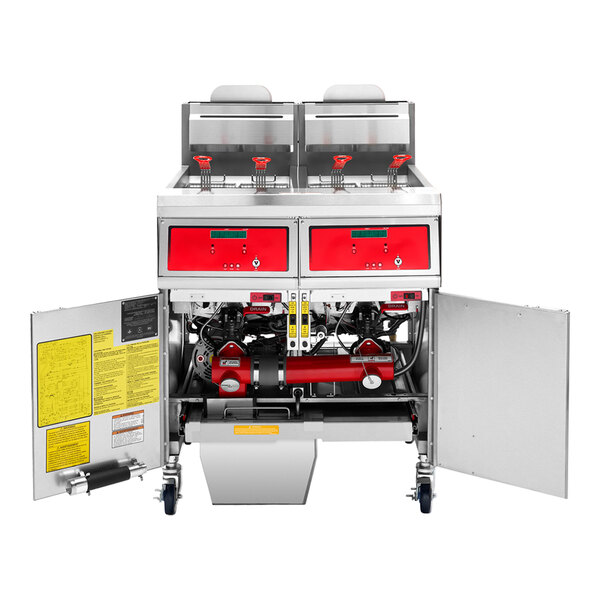

This fryer features a dry fire safety prevention sequence that will prevent the fryer from turning on if there is no oil in the tank. Plus, to ensure safety for all employees, a high-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. Its large cold zones hold larger amounts of sediment and help prevent it from burning and contaminating the oil, helping to extend your oil life and the amount of time needed between filtering. For ultimate oil preservation, the KleenScreen PLUS filtration system aids by removing impurities, which improves the quality and taste of your product while extending the life of the oil by 200-400%. A one-touch button to engage the pump and motor for filtration and a 1 1/4" full port drain valve make oil filtration and removal a quick and hassle-free process. Its drain valve interlock switch automatically turns the gas burners off when draining the oil. This unit features a 1/3 hp motor and pump that circulates hot frying compound at an impressive rate of 8 gallons per minute while the stainless steel mesh screen filter has a filter area of 330 square inches and filters from two sides. It has a hands-free oil return line connection, and the included 16 gauge stainless steel filter pan has a 65 lb. compound capacity.

For added durability and long-lasting use, the cabinets and fry tanks are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean-out rod. When cleaning behind the unit, the four adjustable 6" casters provide easy maneuverability. Two of the casters are locking to secure the unit in place while it's in use. Energy Star certified, this fryer offers 56% energy efficiency to ensure lower energy bills and possible energy rebates while helping you create delicious fried foods (see Energy Star website for a potential rebate on your purchase). This unit's filter battery comes with a filter pan, suction tube, screen assembly, high-temperature discard hose, crumb basket, manual, quick start guide, and warranty. This unit requires liquid propane and a 120V phase 1 electrical connection for operation.

Overall Dimensions:
Left to Right: 62 1/2"
Front to Back: 35 1/8"
Height: 47 3/4"

Fry Pot Dimensions (per unit):
Width: 13 3/8"
Depth: 14 1/8"
Cooking Depth: 4 1/2"
Capacity: 50 lb.
