Product Overview

  • 3 fryer system with 85-90 lb. oil capacity per tank
  • Solid state digital control with 3 melt modes
  • Fast recovery that reacts within 2 degrees Fahrenheit of set temperature
  • Exclusive ThreePass heat transfer system yields 60.0% cooking and 72% thermal efficiency
  • Energy-saving SoftStart ignition system extends oil life
  • 1-touch button activates KleenScreen filtration system
  • Durable stainless steel construction with twin fry baskets per fryer
  • 90,000 BTU per tank, 120V, requires natural gas
UPC Code:400012113703

Vulcan 3TR85DF Specs

Quantity
1/Each
Shipping Weight
968 lb.
Width
63 Inches
Depth
34 3/8 Inches
Height
47 1/4 Inches
Fry Pot Width
18 1/4 Inches
Fry Pot Depth
19 1/2 Inches
Amps
6 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
120 Volts
Burner Style
Tube
Cabinet
Stainless Steel
Capacity
255 - 270 lb.
Capacity per Fry Pot
85 - 90 lb.
Features
Built-In Filtration System  Energy Star Qualified  Made in America  NSF Listed
Fry Pot BTU
90,000
Gas Connection Size
1 1/4 Inches
Number of Fry Baskets
6 Fry Baskets
Number of Fry Pots
3 Fry Pots
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Split Pot
Without Split Pot
Total BTU
270,000 BTU
Type
Gas Floor Fryers

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!

Vulcan 3TR85DF Details

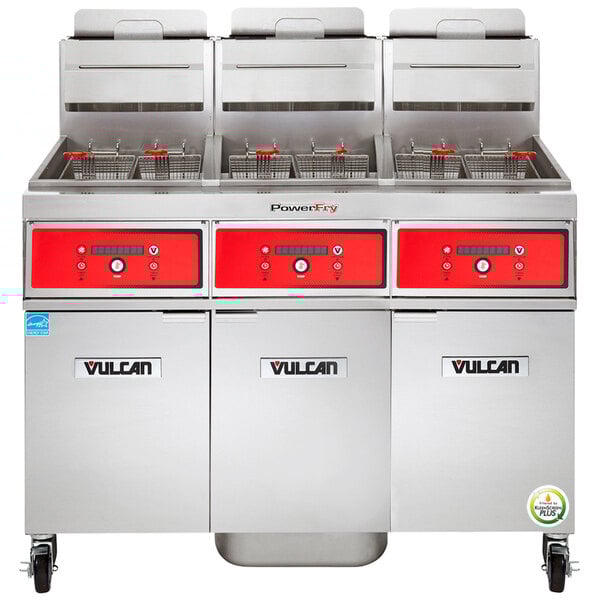

Deliver basket after basket of freshly fried foods to your customers with this Vulcan 3TR85DF-1 PowerFry3 255-270 lb. 3 unit natural gas floor fryer system with solid state digital controls and KleenScreen filtration! With an oil capacity of 255-270 lb. total, this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 19 1/2" x 18 1/4" frying area per tank, this tube-style fryer system delivers 270,000 BTU of power and comes with 2 twin fry baskets per fryer, so you can get to frying as soon as you fill the tank!

Equipped with digital controls, this unit features 2 countdown timers per fryer, compensating time adjustment, and an automated temperature control boil-out mode. Each fryer's temperature can be adjusted from 200-390 degrees Fahrenheit, and the controls allow the unit to react within 2 degrees Fahrenheit of the set temperatures, which provides faster recovery and improves overall performance. A SoftStart ignition system combines with 3 selectable melt modes per tank to allow you to gradually heat up your oil and help preserve its life, while also using less BTUs. By maintaining an idle temperature setting that only uses 5575 BTU of power per fryer, the entire system conserves energy and proves to be a very efficient addition to your equipment lineup.

This fryer system features Vulcan's exclusive ThreePass heat transfer system that passes heat to the oil for a much quicker recovery, yielding 60.0% cooking and 72% thermal efficiency. At its maximum production rate, the flue temperatures are less than 750 degrees Fahrenheit! Plus, to ensure safety for all employees, a hi-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. A large V-shaped cold zone at the bottom of each fry tank prevents crumbs and other debris from burning, which extends the life of your shortening. For ultimate oil preservation, the KleenScreen filtration system aids by removing impurities, which improves the quality and taste of your product. A 1 1/4" full port drain valve makes oil removal a quick and hassle-free process.

The cabinet and each fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean out rod. When you need to clean behind the unit, the 6" casters provide easy maneuverability. This unit requires natural gas and a 120V electrical connection for operation.

Overall Dimensions:
Left to Right: 63"
Front to Back: 34 3/8"
Height: 47 1/4"
Frying Area (per unit): 19 1/2" x 18 1/4"
Oil Capacity (per unit): 85-90 lb.

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • 1 1/4" Gas Connection

    1 1/4" Gas Connection

    This unit comes with a 1 1/4" gas connection to be installed by a professional.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
