Product Overview

  • 85 lb. oil capacity
  • Computer controls with 10 programmable menu options
  • Fast recovery that reacts within 2 degrees Fahrenheit of set temperature
  • 1-touch button activates KleenScreen filtration system
  • Ribbon style heating elements for efficiency
UPC Code:400012114793

Vulcan 1ER85CF-1 Specs

Quantity
1/Each
Shipping Weight
225 lb.
Width
21 Inches
Depth
34 3/8 Inches
Height
39 7/16 Inches
Fry Pot Width
19 1/2 Inches
Fry Pot Depth
18 Inches
Amps
67 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
24 Kilowatts
Cabinet
Stainless Steel
Capacity
85 lb.
Capacity per Fry Pot
85 lb.
Electric Fryer Usage
Heavy Duty
Element Style
Ribbon
Features
Built-In Filtration System  Energy Star Qualified  Made in America  NSF Listed  Programmable Controls
Number of Fry Baskets
2 Fry Baskets
Number of Fry Pots
1 Fry Pot
Plug Type
Hardwire
Power Type
Electric
Split Pot
Without Split Pot
Temperature Range
200 - 390 Degrees F
Type
Electric Floor Fryers

Vulcan 1ER85CF-1 Details

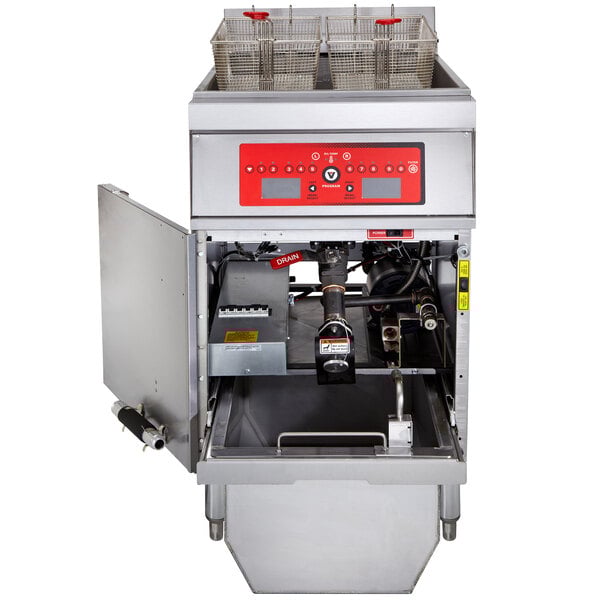

Deliver basket after basket of freshly fried foods to your customers with this Vulcan 1ER85CF-1 85 lb. electric floor fryer with computer controls and KleenScreen filtration! With an oil capacity of 85 lb., this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 19 1/2" x 18" frying area, this fryer delivers 24 kW of power and comes with 2 twin fry baskets, so you can get to frying as soon as you fill the tank!

Equipped with computer controls, this unit features 10 different menu items that can be preprogrammed with your most popular products. This not only saves you time and labor, but also ensures consistency across the board. It doesn't matter which employee is operating the fryer, because your items will be perfectly fried, every time. For your convenience, the unit is easy to program through the USB interface, touchpad, or a laptop. Other great features include compensating time adjustment, shake and hold times, and an automated temperature control boil-out mode.

The temperature can be adjusted from 200-390 degrees Fahrenheit, and the control allows the unit to react within 2 degrees Fahrenheit of the set temperature, which provides faster recovery and improves overall performance. Three selectable melt modes allow you to gradually heat up your oil and help preserve its life, which conserves energy and proves to be a very efficient addition to your equipment lineup.

This fryer features low watt density ribbon style heating elements for fast, thorough heating. Plus, to ensure safety for all employees, a high limit control shuts off the electrical connection if the oil temperatures get too high. For ultimate oil preservation, the KleenScreen filtration system aids by removing impurities, which improves the quality and taste of your product. A 1 1/4" full port drain valve makes oil removal a quick and hassle-free process.

Both the cabinet and fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean out rod. A set of four 6" adjustable legs provide stability on any surface. This unit requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Left to Right: 21"
Front to Back: 34 3/8"
Height: 39 7/16"
Frying Area: 19 1/2" x 18"
Oil Capacity: 85 lb.

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
