Product Overview
- 0.5 GPM multi-laminar spray device
- Hands-free sensor prevents germs from spreading
- Timeout adjustment settings of 30 seconds reduces energy
- Cast brass spout with a polished chrome finish
- Infrared sensor reaches 4" - 5"
Other Products from this Line
$929.92/Each
$827.00/Each
$925.44/Each
$782.24/Each
$827.00/Each
$925.44/Each
$782.24/Each
$844.90/Each
$943.35/Each
$800.15/Each
$844.90/Each
$943.35/Each
$791.25/Each
$889.62/Each
$746.46/Each
$746.46/Each
$791.25/Each
$889.62/Each
$970.45/Each
$746.46/Each
$746.46/Each
$970.45/Each
$970.45/Each
- Quantity
- 1/Each
- Shipping Weight
- 7.38 lb.
- Spout Length
- 5 3/16 Inches
- Faucet Width
- 2 7/8 Inches
- Faucet Height
- 7 Inches
- Faucet Centers
- Single
- Features
- ADA Compliant Hands Free Mixer
- Finish
- Chrome
- Flow Rate
- 0.5 GPM
- Material
- Brass
- Mounting Holes Required
- 1 Mounting Hole
- Mounting Style
- Deck Mounted
- Plug Type
- Hardwire
- Spout Clearance
- 4 Inches
- Spout Type
- Cast
- Type
- Touchless Faucets
- Water Inlet Size
- 3/8 Inches
Customer questions about this product
Can I use this product to serve drinking water?
Does this item have any additional agency approvals and certifications?
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

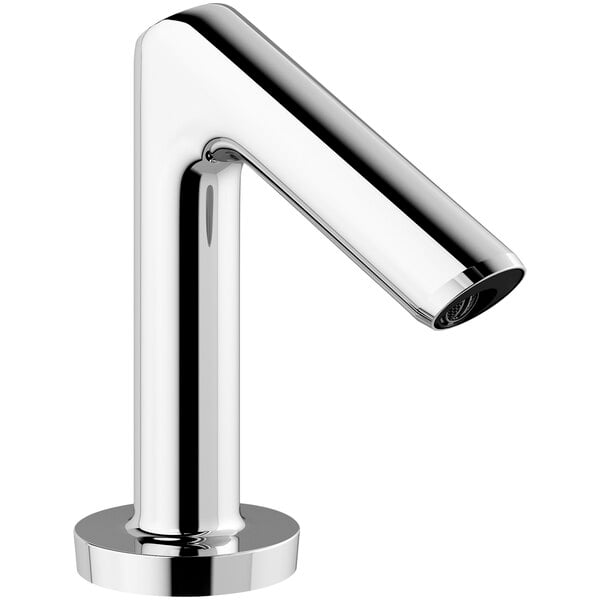

Sloan 3365817BT Details
Bring the convenience and safety of hands-free operation to your restroom with this Sloan 3365817BT Optima hardwired deck mount sensor faucet with 0.5 GPM multi-laminar spray, polished chrome finish, 8" trim plate, plug adapter, and back-check tee mixer! The polished chrome finish complements nearly any design aesthetic, lending a subtle, modern accent to your sink. It features a 0.5 GPM multi-laminar spray device, which creates a comfortable flow pattern without aerating the water stream. This design is particularly important in applications where contamination is a concern since a typical aerator can introduce airborne germs into the water supply.
For energy efficiency, the infrared sensor comes with timeout adjustment settings of 30 seconds. By using a sensor, you eliminate the faucet handle, which is a key contact point for germs to spread. Combined with an integrated water shut-off and hygienic line flush, this all helps to make your business safer and more sanitary for guests and employees alike! The sensor reaches 4" to 5", providing an ideal range for customers to use.
This cast brass spout comes with quick-connect fittings so it's ready to use right out of the box. For versatility, it includes wireless settings adjustment as well as on-demand or metered activation, a self-adapting sensor, and battery strength reporting. You can even keep track of water usage! An 8" trim plate, back-check tee mixer, and plug adapter for simple hardwiring are also included.
Overall Dimensions:
Spout Length: 5 3/16"
Faucet Width: 2 7/8"
Faucet Height: 7"
Spout Clearance: 4"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
CalGreen Compliant
This product is compliant with California's CalGreen Green Building Standards Code.
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
