Saleregular price$209.99

$199.99/Each

Ships free with Plus

Earn up to $6.00 back (600 points)with a Webstaurant Rewards Visa® Credit Card

Other Available Colors:

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Dual sensor foam soap dispenser and water faucet, 1.2 GPM flow rate

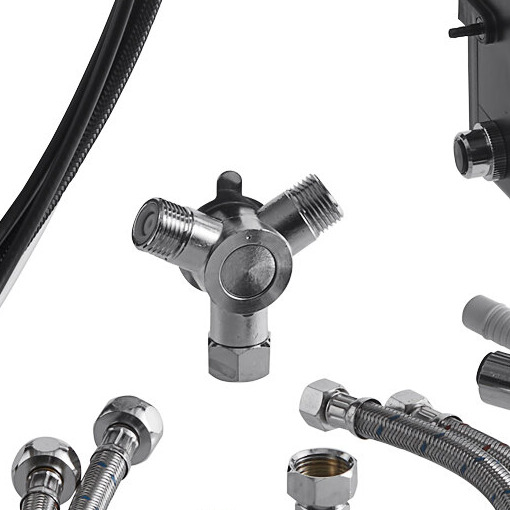

  • Deck-mounted single hole base with stainless steel supply line to connect module to faucet
  • 9/16"-24 female connector fittings
  • Solid brass construction with matte black finish for long life

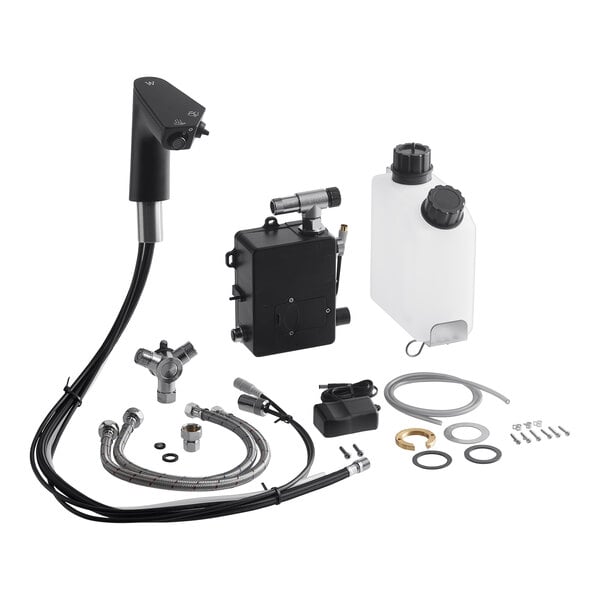

  • Includes AC adapter and control module
UPC Code:400016090642

Specs

Quantity
1/Each
Shipping Weight
10 lb.
Spout Length
6 5/16 Inches
Faucet Width
2 3/4 Inches
Faucet Height
5 7/8 Inches
Capacity
1,500 ml
Color
Black
Dispenser Style
Deck Mount
Dispenser Type
Automatic
Faucet Centers
Single
Features
ASME A112.18.1-2018 / CSA B125.1-18  California AB100 Compliant  Flex Inlets Included  Massachusetts Accepted Plumbing Product  NSF/ANSI 372  NSF/ANSI 61
Finish
Matte Black
Flow Rate
1.2 GPM
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Power Type
AC Adapter
Spout Clearance
3 1/8 Inches
Spout Type
Cast
Style
Foaming
Temperature Rating
41 - 158 Degrees Fahrenheit
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

Customer questions about this product

Can I change the sensing distance on my faucet?

The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

Details

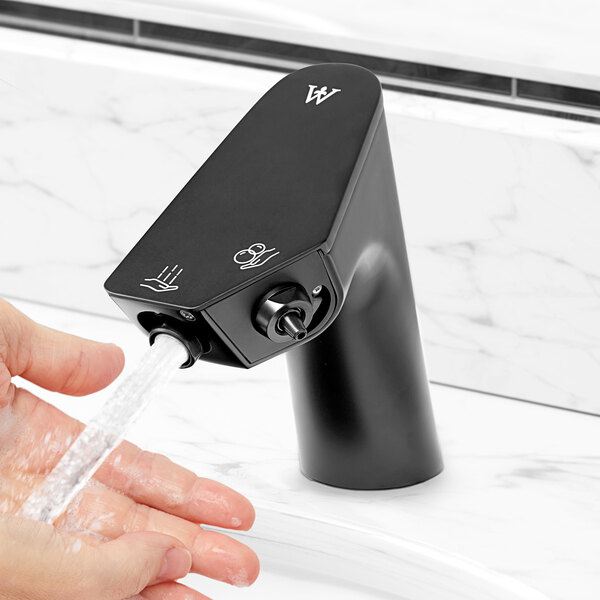

This Waterloo matte black dual-sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a dual sensor foam soap dispenser and water faucet on a single hole base, with a matte black finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor. Made from solid brass with a matte black finish, this dual faucet provides a polished look and superior durability.

This faucet features an infrared proximity sensor with a 0.2 second water response time, as well as a 1500 mL soap reservoir that dispenses soap in 2 seconds. Foaming soap (sold separately) is required for use. To avoid the risk of clogging, the soap dispenser will automatically dispense soap once every 12 hours when not in use. Because a sensor activates both the soap and water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with a flexible stainless steel supply line. A mixing valve also allows you to easily set the output temperature to the desired level between 41 and 158 degrees Fahrenheit. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. 9/16"-24 female connector fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 6 5/16"
Faucet Width: 2 3/4"
Faucet Height: 5 7/8"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • 1-15P

    1-15P

    This unit comes with a NEMA 1-15P plug.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
