$299.99/Each
Ships free with Plus
Earn up to $9.00 back (900 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business dayEstimated shipping time tooltip
Product Overview
- Saves water
- Reduces cross-contamination
- Quantity
- 1/Each
- Shipping Weight
- 6.5 lb.
- Spout Length
- 4 9/16 Inches
- Faucet Width
- 2 1/16 Inches
- Faucet Height
- 4 11/16 Inches
- Battery Type
- AA
- Faucet Centers
- Single
- Features
- ADA Compliant
California AB100 Compliant
Flex Inlets Included
Hands Free
Motion Sensor
With Mixing Valve - Finish
- Chrome
- Flow Rate
- 2.2 GPM
- Mounting Holes Required
- 1 Mounting Hole
- Mounting Style
- Deck Mounted
- Pressure Rating
- 125 PSI
- Spout Clearance
- 3 11/16 Inches
- Spout Type
- Cast
- Temperature Rating
- 140 Degrees Fahrenheit
- Type
- Touchless Faucets
- Water Inlet Size
- 3/8 Inches
Customer questions about this product
Can I use this product to serve drinking water?
This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
What measurements do I need to install a faucet?
When installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

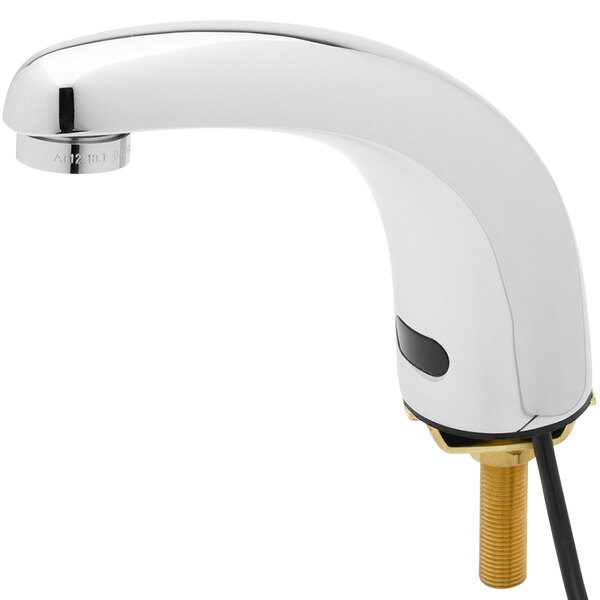

T&S Brass and Bronze Works 5EF-1D-DS Details
This ADA Compliant Equip by T&S 5EF-1D-DS electronic deck mounted cast spout faucet is ideal for hand washing sinks. Its electronic sensor will help you save water and also helps reduce cross-contamination because you don't have to touch anything to turn it on!
The electronic control module features a battery backup (4 AA batteries sold separately). The total height of the faucet is 4 11/16", and its nozzle extends 4 9/16" from the center line.
Overall Dimensions:
Spout Length: 4 9/16"
Faucet Height: 4 11/16"
Faucet Width: 2 1/16"
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
