Product Overview
- Made for use with select iCombi Classic or iCombi Pro ovens
- Condensation / filtering technology helps dissipate steam and prevents build-up of vapor and smoke
- Requires zero external connection to an existing exhaust air system
- Smoothly discharges waste water through the unit while grease filter is dishwasher safe
- Boasts a proximity door contact switch, high extraction power, and a stainless steel design
- Quantity
- 1/Each
- Shipping Weight
- 216 lb.
- Length
- 33 5/8 Inches
- Depth
- 38 3/8 Inches
- Height
- 15 7/8 Inches
- Voltage
- 125 Volts
- Fire Suppression
- Without Fire Suppression
- Material
- Stainless Steel
- Plug Type
- NEMA 5-15P
- Style
- Condensate Hoods
- Type
- Hoods
Customer questions about this product
Am I able to order this item if I am outside of the United States?
Yes, however please note that on orders with a destination outside of the United States, we are required to add an additional 30% to our quoted price, due to Rational's cross border policy.
How do I know what size hood I need?
To be compliant with NFPA and International Mechanical Code, canopy hoods must be sized to have a minimum 6” (152mm) overhang beyond the top horizontal edge of the surface of the cooking appliance on all sides. To size your hood accordingly, measure the horizontal distance (width) of the cooking surface, add 12" to cover the 6" for each side, and round up to the nearest foot. Example: You have a 36” flat top griddle, 24” charbroiler, 24” range, and a 16” deep fryer. This setup has a total width of 100", plus 12" for overhang, which is 112" or 9 feet 4". Round this up to a 10' hood.
Is a ventless hood the right option for my application?
A ventless hood is a great option for commercial kitchens that do not have the capabilities for traditional vented hoods. However, ventless hoods have a special set of requirements and limitations due to their design. Because ventless hoods work by recirculating air through a system of filters, fresh air supply and ventilation of the room is needed for proper safety and functionality. We recommend consulting your local authority to find out if ventless can work in your kitchen.
Rational 60.76.177 Details

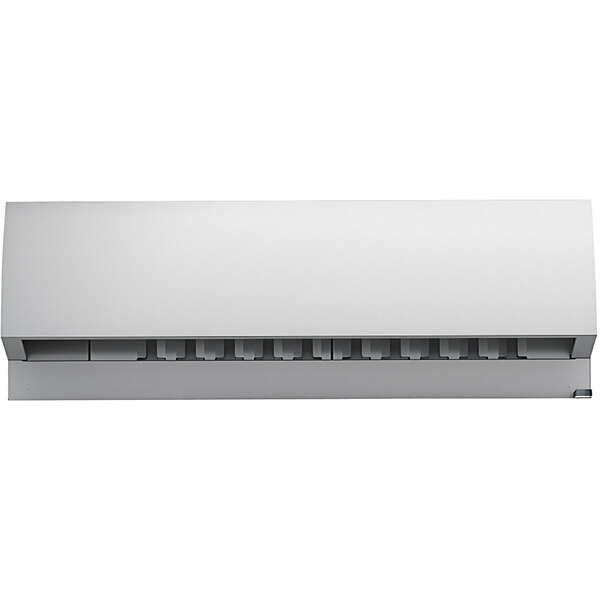

Equip your busy commercial kitchen with this Rational 60.76.177 UltraVent Plus Model 6-Half Size / 10-Half Size ventless condensation hood. Designed with cutting-edge condensation technology, this unit not only absorbs and dissipates steam to achieve a safer work environment for your staff members, but it also offers special filtering technology to prevent the build-up of vapor and smoke caused by grilling and roasting. This easy-to-use device can be installed in critical locations as well, since it requires zero external connection to an existing exhaust air system for operation in back-of-house or front-shop areas. It also comes with a proximity door contact switch for your utmost convenience, which is nicely complemented by a high extraction power that will automatically increase whenever your oven door is open. Plus, its grease filter is dishwasher safe.
This particular ventless condensation hood was constructed to accommodate single or stacked half size sheet pan combi-duo electric oven pairings by Rational. It's perfect for installation above your Rational iCombi Classic or iCombi Pro Model 6-Half Size or 10-Half Size ovens and will open up a world of possibilities in any congested kitchen. Additionally, this item features a durable stainless steel construction, which means that it's built to withstand the wear and tear of frequent use in busy back-of-house areas. Ensure that your establishment is as safe and efficient as possible with the help of this ventless condensation hood by Rational!
This unit is not designed, nor certified, for use with gas combi ovens or use with a rational vario smoker. This unit is not compatible with Rational 201 series ovens.
Overall Dimensions:
Length: 33 5/8"
Depth: 38 3/8"
Height: 15 7/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
5-15P
This unit comes with a NEMA 5-15P plug.
Kitchen Innovations Award Winner
This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Resources and Downloads for
Rational 60.76.177
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS:
Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
