$13,223.00/Each

Ships free with Plus

for details

Earn up to $396.69 back (39,669 points)with a Webstaurant Rewards Visa® Credit Card

Other Available Colors:

  • Black
  • Stainless Steel

Installation Services

Check if installation is currently available for your area.

Enter ZIP Code >

Usually Ships in 5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Versatile, high-speed oven delivers speeds up to 80% faster than a conventional oven
  • Tri-plex technology offers high performance by combining microwave, convection, and impingement heat
  • Access to over 100 programmed recipes on the KitchenConnect program with Wi-Fi or ethernet access
  • Quick pre-heat and ventless operation to save energy; does not require a hood
  • 2023 Kitchen Innovations Award recipient for progressively boosting efficiency and productivity
UPC Code:400016276923

Merrychef X12DBMV6DFL1BKUS Specs

Quantity
1/Each
Shipping Weight
151 lb.
Width
14 Inches
Depth
25 3/16 Inches
Height
24 7/16 Inches
Interior Width
12 1/4 Inches
Interior Depth
12 3/16 Inches
Interior Height
6 11/16 Inches
Amps
30 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
208/240 Volts
Wattage
6,000 Watts
Application
High Performance
Capacity
0.58 cu. ft.
Color
Black
Control Type
Touchscreen
Door Type
Solid
Exterior Material
Powder Coated Stainless Steel
Features
Programmable  Ventless
Finish
Carbon Black
Heating Source
Microwave, Impinged Convection, & Radiant
Hinge Location
Bottom
Installation Type
Countertop
Maximum Temperature
527 Degrees F
Number of Chambers
1 Chamber
Number of Doors
1 Door
Plug Type
NEMA 6-30P
Power Type
Electric
Type
Rapid Cook Ovens

Merrychef X12DBMV6DFL1BKUS Details

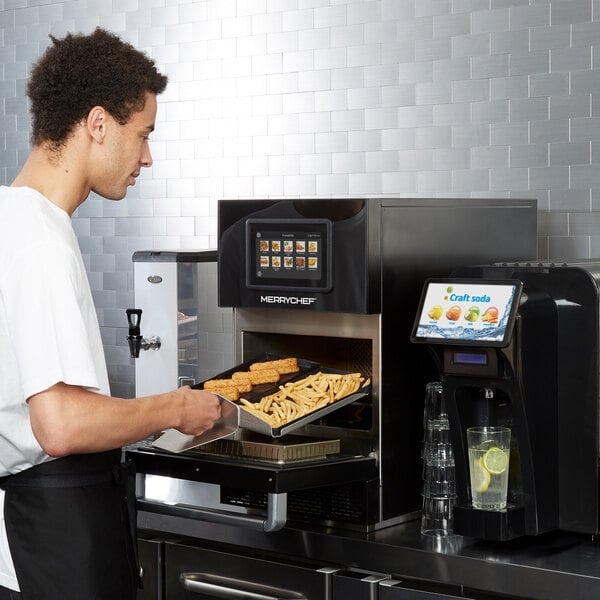

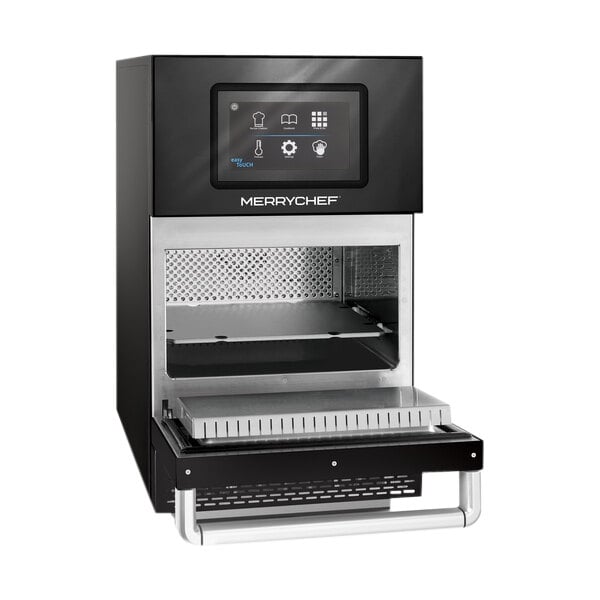

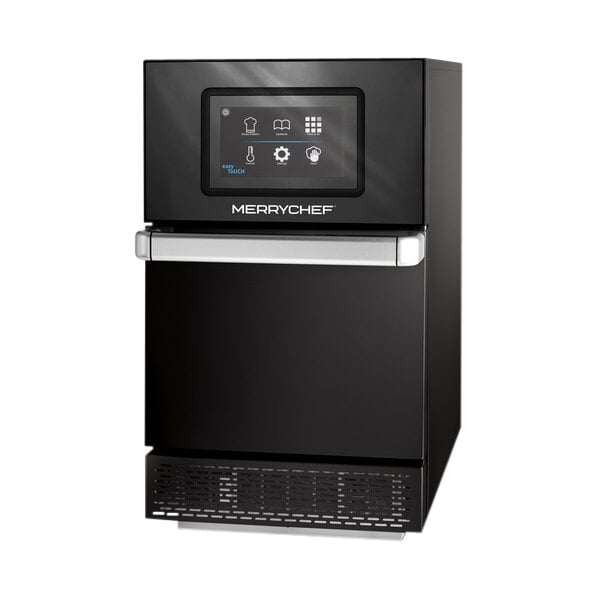

Cut down on cooking times and produce consistent, quality food at up to 80% faster than a conventional oven with the Merrychef conneX12 high power oven with carbon black finish. Great for toasting subs, heating sandwiches, grilling, or warming frozen pizza at kiosks, concession stands, cafes, and quick-serve restaurants, the conneX12 features tri-plex technology with microwave, impingement, and convection heating to produce quality results at top speeds. This all-in-one unit allows you to prepare and cook food as it is ordered, which will reduce waste and costs. Plus, its built-in catalytic converter allows it to be operated without a venting system - which saves energy! Instead, a removable easy access front mounted air filter helps to maintain the performance and cleanliness of the unit and its surrounding area. This helps to keep a quiet and efficient environment in any kitchen.

Because of its ventless design, the oven is easy to place in your kitchen, as it doesn't require a hood for operation; however, as local codes may vary, please contact your local regulatory authority to confirm that ventless operation is permitted.

This unit has one of the largest cavity-to-width ratios with a stainless steel 12" x 12" cooking cavity inside of the 14" wide unit, making it the perfect unit for when space is a premium. When finished, the black stainless steel body and large rounded interior corners are easy to clean.

Designed with user convenience in mind, the conneX12 features the easyTouch 2.0 control panel, an icon-based color touch screen that comes with 100 pre-programmed recipes. This enables you to provide a wide variety menu to customers and in return increase sales! Wi-Fi and ethernet connectivity allows recipe pre-programmed recipes. Programs can easily be updated and ovens can be monitored from a far with the industry leading Welbilt KitchenConnect platform.

The Merrychef conneX12 also features a cool-touch door exterior for increased operator comfort and safety. It requires a 208/240V electrical connection for operation. The unit should not be stacked. With three different cooking levels for a variety of food items, this unit saves you time and energy and is a great addition to any establishment with a need to serve quality food in a short amount of time.

Oven Includes:
- flat cook plate
- guarded hand paddle with supporting sides
- full size cooking tray
- cool down pan
- cook plate liner

Overall Dimensions:
Width: 14"
Depth: 25 3/16"
Height: 24 7/16"

Interior Dimensions:
Width: 12"
Depth: 12 3/16"
Height: 6 11/16"
Capacity: 1 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • 6-30P

    6-30P

    This unit comes with a NEMA 6-30P plug.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • Kitchen Innovations Award Winner

    Kitchen Innovations Award Winner

    This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.

Need Parts & Accessories?

Show replacement parts and accessories for Merrychef X12DBMV6DFL1BKUS today!

Resources and Downloads for
Merrychef X12DBMV6DFL1BKUS

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note that this item is subject to a 7% export warranty administration fee for all international orders.
