$452.99/Each

Ships free with Plus

Earn up to $13.59 back (1,359 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 5 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Drop-in design with 1 ledge
  • (1) 14" x 14" x 5 1/2" bowl with 1 1/2" rear center drain
  • Seamless, die-drawn construction, 18 gauge, type 304 stainless steel
  • Features 1 3/4" radius corners for easy cleaning
  • Fully coated underside insulates sound and reduces condensation; (3) 1 1/2" diameter holes for faucet mounting
UPC Code:400014309555

Just Manufacturing SLADA2017A3,5.5,DCR Specs

Quantity
1/Each
Shipping Weight
10.01 lb.
Length
17 Inches
Width
20 Inches
Height
5 1/2 Inches
Cutout Length
16 1/4 Inches
Cutout Width
19 1/4 Inches
Bowl Depth
5 1/2 Inches
Bowl Front to Back
14 Inches
Bowl Left to Right
14 Inches
Color
Silver
Corner Radius
1 3/4 Inches
Edge Style
Flush
Features
ADA Compliant  Made in America  NSF Listed
Gauge
18 Gauge
Installation Type
Drop In
Material
Stainless Steel
Number of Compartments
1 Compartment
Stainless Steel Type
Type 304
Type
Drop-In Sinks

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What cutout do I need for my sink?

If you're choosing a drop-in sink, this information should be provided in the specifications for the product. The cutout must be large enough to accommodate the sink bowl(s) but also not bigger than the lip of the sink, which overhangs the cutout and holds it in place.

If you're choosing an undermount sink, the sink will install underneath the counter, so your cutout size should be about the same as the total, combined dimensions of your sink bowl(s) for a clean look. Your countertop must also have a finished edge around the cutout, since top of the bowl installs below the cut, leaving it exposed.

Ask your own question!

Just Manufacturing SLADA2017A3,5.5,DCR Details

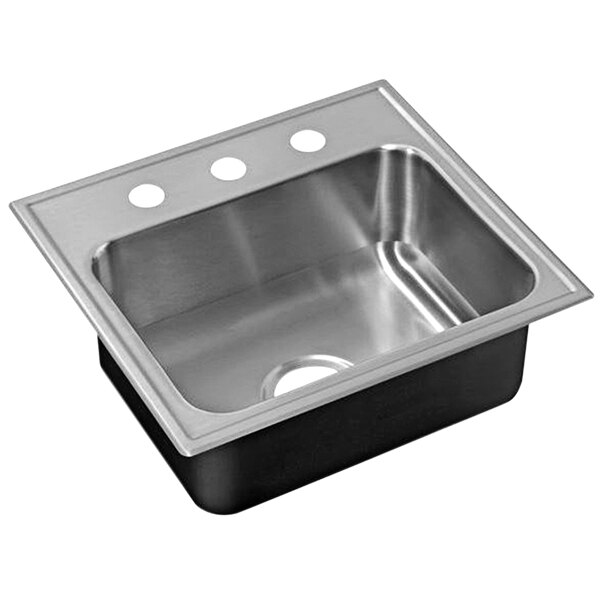

This SL-ADA-2017-A-355DCR 14" x 14" x 5 1/2" 1 compartment drop-in sink from Just Manufacturing is an excellent solution for countertop sink installations, pairing the superior durability you expect with an easy-install design that lets you get set up and working fast. The sink is designed to drop into a 16 1/4" x 19 1/4" cutout, giving you the flexibility to install it in the most convenient location within your facility's countertops. The 14" x 14" x 5 1/2" bowl features a straight-sided compartment design with 1 3/4" radius corners to make cleaning easy, and a 1 1/2" rear-mounted drain. And since it boasts a seamless, die-drawn design and an 18 gauge, type 304 stainless steel construction, it is sure to provide the quality and durability needed for even high-use applications. Additionally, the underside is fully coated to reduce noise and condensation.

The sink ledge comes with (3) 1 1/2" diameter holes to make faucet mounting easy. The sink is polished with a satin blend #4 finish that provides a clean, professional look, while Grip-Rim Plus self-rimming 300 series SS mounting channels help to simplify the installation process.

Overall Dimensions:
Length: 17"
Width: 20"
Height: 5 1/2"

Bowl Dimensions:
Length: 14"
Width: 14"
Height: 5 1/2"

Cutout Dimensions:
Length: 16 1/4"
Width: 19 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.
