$2,585.55/Each

Ships free with Plus

Earn up to $77.57 back (7,757 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Space-saving compact design is easy to install next to dishwasher
  • 6 gallon storage capacity
  • Fiberglass insulation to minimize heat loss
  • Stainless steel front panel with 6" legs
  • Easy to service
  • Castone lined tank backed by 10 year limited warranty
  • 480V, 1 phase, 13.5 kW
UPC Code:400012839986

Hatco C-13 480/1 Specs

Quantity
1/Each
Shipping Weight
120 lb.
Width
13 1/6 Inches
Depth
20 11/16 Inches
Height
19 3/4 Inches
Amps
28.2 Amps
Phase
1 Phase
Voltage
480 Volts
Wattage
13.5 Kilowatts
Features
Made in America  NSF Listed
Plug Type
Hardwire
Power Type
Electric
Tank Capacity
6 Gallons
Usage
Medium Duty

Hatco C-13 480/1 Details

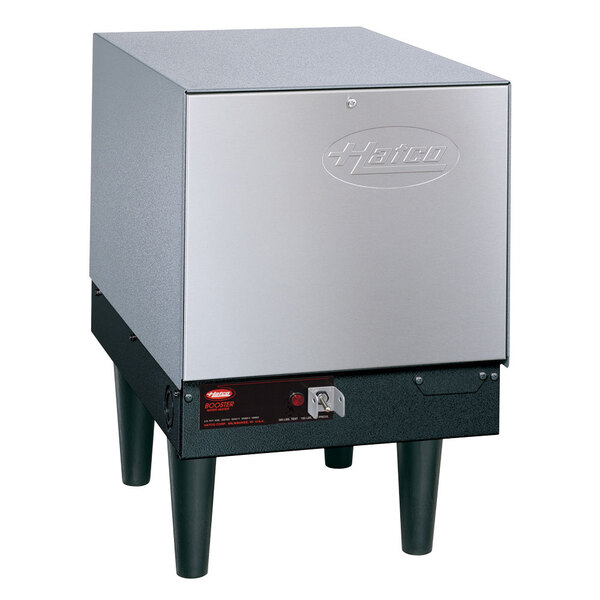

The space-saving Hatco C-13 compact booster water heater has a 6 gallon capacity to provide the hot water you require to properly sanitize and flash-dry dishes and flatware! This 13.5 kW electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing. The heater is easy to install next to your dishwasher, and comes with 6" legs. A 480V, 1 phase electrical connection is required.

Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.

Overall Dimensions:
Width: 13 1/6"
Depth: 20 11/16"
Height: 19 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can this booster water heater replace a primary water heater?

No, it is not designed for that purpose. This unit should only be used as a secondary water heater.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Need Parts & Accessories?

Show replacement parts and accessories for Hatco C-13 480/1 today!

Resources and Downloads for
Hatco C-13 480/1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
