Name: Halifax FTHO630 Package Type 1 Concession Trailer / Food Truck Hood System - 6' x 30"
Brand: Halifax
SKU: 421FTHP630
Price: 2039 USD
Availability: LimitedAvailability
Rating: 5.0 (1 reviews)

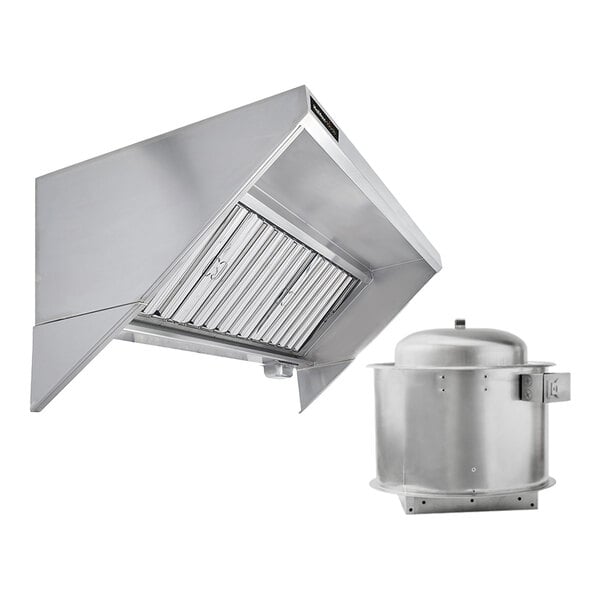

A silver metal Halifax FTHP630 restaurant hood system cabinet with a lid.

Note: 5' hood shown

Only

$2,039.00/Each

Earn up to $61.17 back (6,117 points)with a Webstaurant Rewards Visa® Credit Card

Size: 6'

Usually Ships in 5-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

Type 1 hood for grease-producing equipment; exhaust-only system with no makeup air
Includes sloped-front hood canopy and exhaust fan
18-gauge 430 stainless steel construction on all exposed surfaces
For food truck and concession trailer installations
115/230V direct-drive exhaust fan (1200 CFM)

UPC Code:811568031500

View all Halifax Restaurant Hood Systems

Keep your kitchen free of hazardous grease buildup with this Halifax FTHO630 package 6' x 30" type 1 concession trailer / food truck hood system.

This unit is suitable for use over any equipment that has a surface operating temperature under 700 degrees Fahrenheit, and that is required by fire code to have a type 1 hood when installed in a food truck or concession trailer - this includes fryers, griddles, charbroilers, conveyor pizza ovens, or any equipment that produces grease during the cooking process.

Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

Exceptional Ventilation

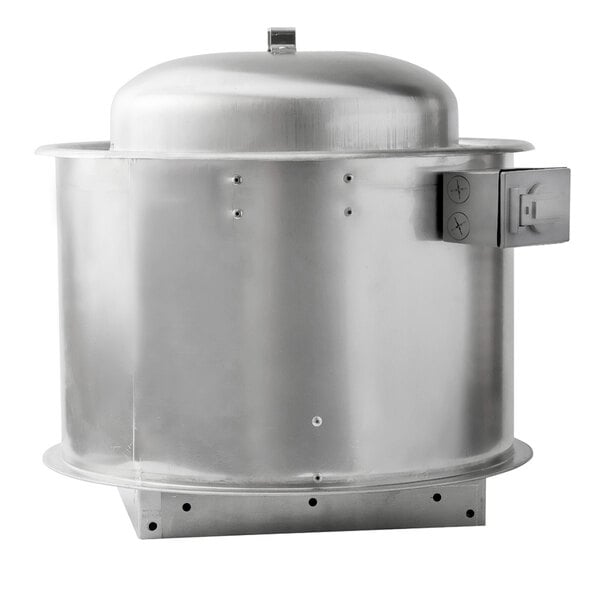

It is an exhaust-only system with no makeup or supply fan needed and also contains one 115/230V direct-drive exhaust fan designed for a total of 1200 CFM. To make installation easy, it also includes a 2" high concession curb for the fan, a 12" length of duct work, a curb plate, and 12" x 9" side curtains. A variable dial control makes it easy to adjust the fan speed as needed to account for higher or lower ventilation needs.

Superior Construction

The hood uses (2) 20" x 20" and (2) 20" x 16" baffle-type filters, and grease is collected in a trough that drains into a stainless steel cup for disposal. 18-gauge 430 stainless steel is used on all surfaces to provide excellent durability while the MIG-welded frame provides seamless, liquid-tight joints. The hood features a box-style canopy design to provide superior performance, and a 3" gap on the back of the hood provides clearance and protection for combustible walls where code requires.

Vital Illumination

2 pre-wired lights illuminate the equipment under your hood so that you can easily see what you're doing while cooking, and they require a 115V electrical connection to the junction box. This hood should be used in applications where the ceiling is under 10' tall. 4 hanger brackets are included to make installation easy. It must be hard-wired, cords and plugs are not included.

Customer Q&AAsk a Question

Does my hood package include a control panel for operating the fans and lights?

Hood packages do not include control panels with the package. A control panel is often provided by the installer, or it can be purchased separately.

How do I choose the right hood for my application and local codes?

Each local jurisdiction has different rules and regulations regarding exhaust hoods. We recommend you contact your local authority to obtain the specific requirements and regulations for your intended application in your respective jurisdiction before placing your order; typically the approval authority will be the building, fire, or health department. We may also reach out to gather additional information about the layout of your application to help ensure that this hood will meet your needs and suggest modifications so that you are getting the best performance possible for your specific layout. For further assistance in selecting the right hood for your application, please contact our Customer Solutions team.

How do I know what size hood I need?

To be compliant with NFPA and International Mechanical Code, canopy hoods must be sized to have a minimum 6” (152mm) overhang beyond the top horizontal edge of the surface of the cooking appliance on all sides. To size your hood accordingly, measure the horizontal distance (width) of the cooking surface, add 12" to cover the 6" for each side, and round up to the nearest foot. Example: You have a 36” flat top griddle, 24” charbroiler, 24” range, and a 16” deep fryer. This setup has a total width of 100", plus 12" for overhang, which is 112" or 9 feet 4". Round this up to a 10' hood.

I am interested in an “island” type hood in the middle of the kitchen. Where can I order this type of Hood?

Island hoods require a quote from our special orders team. Please email Customer Solutions with any questions.

I am interested in ordering fire suppression with my food truck hood, what is involved in that process?

Fire suppression systems are frequently required by code for type 1 hoods, and need to be designed to fit the specific layout of your cooking line. We offer units with fire suppression included as part of the package to make ordering easy.

Our food truck hoods with Kidde fire suppression factory installed use an Aqueous Potassium Carbonate (APC) wet chemical fire suppression system to meet UL300 standards for fire protection. The tank comes pre-filled, and it must be hooked up, tested, and inspected by a certified fire safety installer. A space on the wall is needed to mount the tank near the hood.

A member of our team will reach out to gather more information about your application so that the fire suppression system can be configured correctly. The sooner you provide answers to these questions, the sooner we can proceed with your order! If our team has any additional questions or concerns based on the information provided, we will work with you to resolve them and find the correct fire suppression solution for your business.

Is anything else needed to process my hood order?

Yes! In the Resources & Downloads section we list 2 forms – Receiving Agreement & Order Acknowledgement. These forms are required by the manufacturer to begin processing your order. We encourage you to promptly complete these forms after your order has been placed and email them directly to [email protected] with your order number in the subject line. If you selected Fire Suppression as part of your hood package, please also complete and submit the Fire Suppression Layout form located in the Resources & Downloads section. A member of our team will also contact you after the hood is ordered to ensure completion of the forms and processing of the order.

Will the layout of my facility affect the fan specifications?

The CFM ratings given in the description are what your hood will most likely be designed to perform at - however, factors like long duct runs, multiple duct turns, and high heat equipment like fryers and charbroilers may necessitate a more powerful fan with a different drive type or different specifications, and we will work with you to determine whether any modifications are needed after your order is placed. The fan specifications given in the description are reflective of most installations.
