- Type 1 hood for grease-producing equipment; designed to use PSP makeup air
- Includes box-style hood canopy only; exhaust and supply fans sold separately
- 18-gauge 430 stainless steel construction on all exposed surfaces
- For ceilings 10' or higher
- Steelton 20"(H) x 20"(W) x 1 1/2"(T) Stainless Steel Hood Filter
- Noble Chemical Excel Stainless Steel Cleaner / Metal Polish - Aerosol 18 oz. (AMR A142)
- NAKS 36D-ECA Direct Drive Premium Efficiency Centrifugal Upblast Exhaust Fan - 2200-3500 CFM, 1450 RPM, 115V, 1 Phase
- NAKS LEDLGT Replacement 12 Watt LED Light Bulb
- NAKS PWLGT Pre-Wired Canopy Hood Lighting Fixture with Tempered Globe
- Steelton 20"(H) x 16"(W) x 2"(T) Stainless Steel Hood Filter
- NAKS END_CAPS 84" Stainless Steel End Cap
- Halifax 421CURTHALF Half Side Curtains for Type 1 Box Hoods and Type 2 Heat Removal Hoods - 2/Set

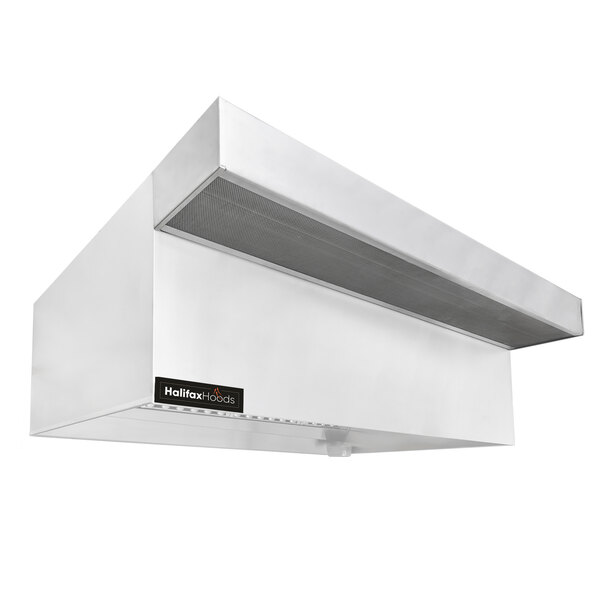

Keep your kitchen free of hazardous grease buildup with this Halifax PSPHO1248 12' x 48" type 1 commercial kitchen hood.
This hood removes the grease-laden vapors produced by your equipment and prevents them from accumulating in places where they could become a fire or sanitation hazard, leaving your kitchen clean and safe to use! This unit is suitable for use over any equipment that has a surface operating temperature under 700 degrees Fahrenheit, and that is required by fire code to have a type 1 hood - this includes fryers, griddles, charbroilers, conveyor pizza ovens, or any equipment that produces grease during the cooking process.
Made in America
This item was made in the United States of America.
This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in Canada.
UL Classified EPH
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Maintains a Consistent Fresh Air Supply
This hood is designed to use PSP (perforated supply plenum) makeup air, which introduces supply air into the room through the front of the hood. Makeup air is important in applications where the kitchen doesn't have enough fresh air coming in to replace the air exhausted by the hood, since your hood requires this replacement air to perform to specifications and remove grease, smoke, and VOCs effectively. It contains the hood only, the exhaust fan and fresh air / makeup fans are sold separately.
Durable Stainless Steel Construction

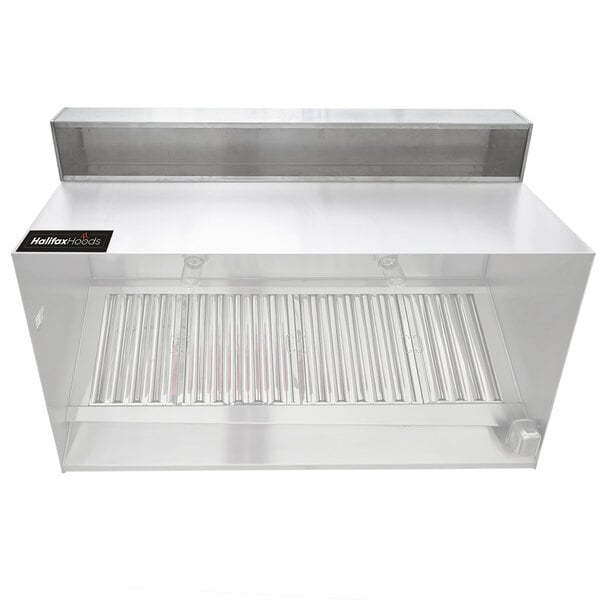

The hood uses (4) 20" x 20" and (4) 20" x 16" baffle-type filters made from stainless steel to provide durability and make cleaning easy. Grease extracted by the filter is collected in a grease trough, which drains into a stainless steel grease cup for disposal. 18-gauge 430 stainless steel is used on all exposed surfaces to give it excellent durability and cleanability, while the MIG-welded frame provides seamless, liquid-tight joints.
4 pre-wired lights illuminate the equipment under your hood so that you can easily see what you're doing while cooking. They require a 115V electrical connection to the junction box. The hood features a box-style canopy design to provide superior performance. This model is also engineered with a 3" air gap on the back of the hood, which provides clearance and protection for combustible walls where code requires. This hood should be used in applications where the ceiling is 10' or taller. 6 hanger brackets are included to make installation easy. It must be hard-wired, cords and plugs are not included.
Customer Q&AAsk a Question
Kidde Systems use APC (Aqueous Potassium Carbonate) wet chemical fire suppression. The tank is typically exposed unless a cabinet is requested. They come pre-filled.
Ansul Systems use Ansulex wet chemical fire suppression. The tank is typically installed in a wall-mounted cabinet. They must be filled and charged.
Both systems meet UL300 standards, and will require a certified fire safety installer to hook up, test, and pass inspection.
Follow these simple steps to add a system to your hood!
1.) Choose whether you would like an Ansul Deluxe or Kidde fire suppression system for your hood, under the "Fire Suppression" dropdown. The Ansul Deluxe system includes the gas shut-off valve, enclosure, chemical, and CO2 cartridge.
2.) A member of our team will reach out to gather more information about your application so that the fire suppression system can be configured correctly. The sooner you provide answers to these questions, the sooner we can proceed with your order!
3.) If our team has any additional questions or concerns based on the information provided, we will work with you to resolve them and find the correct fire suppression solution for your business.
- Length:12 Feet
- Depth:48 Inches
- Ceiling Height:10' or Over
