Accessories & Options

  • Two stainless steel shuttles included
  • Separate hot water faucet for soups & other hot drinks
  • Offers 3 brew volumes: 1/2 - 1 1/2 gallons
  • Features PrecisionBrew technology to create the optimal cup of coffee
  • Makes up to 385 cups per hour
  • 120/208/240V
UPC Code: 074491889758
Grindmaster Shuttle Brewer

Grindmaster Shuttle Brewer

Your P400EST must be wired and connected to a water source before operating. First turn on the water on and then the electric supply. The brewer will now begin to fill. Once full, the brewer takes 15 to 35 minutes to heat (on the initial cycle). For example, at 208V power and 60 degree Fahrenheit incoming water temperature, it will take about 20 minutes to heat up. After the "Water Hot, Ready to Brew" light comes on, run a few water only batches on both sides to verify the brew volume. After a few brew cycles, water level should be about an inch from the top of the shuttle (as per factory settings). The temperature of the water from the hot water faucet should be between 195 and 205 degrees Fahrenheit. You are now ready to brew coffee! Recovery time between brew cycles should be about 4 minutes. If you need to make changes to your machine from the recommended factory settings, disconnect the power, remove the top panel, and follow the "ADJUSTMENT" section of the operation manual. All controls, from brew volume to temperature adjustment, are set at the factory for optimal performance. Follow the manual for daily and weekly cleaning recommendations.

Copy and paste the embed code above.

This video illustrates what you can expect from your P400EST Grindmaster shuttle brewer, including heating and recovery times, temperature and brew volume estimates, and how to make adjustments to the factory settings.

Grindmaster-Cecilware PB-430 120/208 Specs
Width 18 Inches
Depth 18 Inches
Height 30 Inches
Amps 1 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 120/208/240
Wattage 5,000 Watts
Brewer Type Bulk Dispenser
Capacity 1.5 Gallons
Coffee Filter Size 13 3/4" x 5 1/4"
Color Silver
Features Hot Water Faucet

Server Included
NSF Listed Yes
Output 15 Gallons Per Hour
Power Type Electric
Pressure 30 - 80 PSI
Style Double
Type Coffee Brewers
Water Source Direct Connection

Grindmaster-Cecilware PB-430 120/208 Details

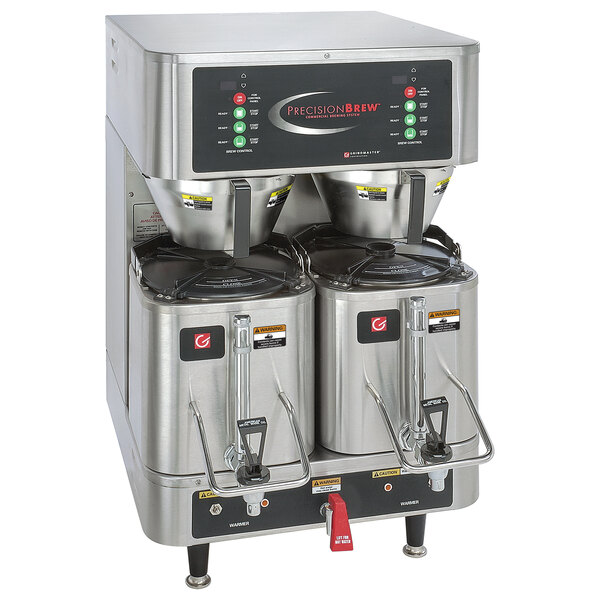

From the renowned PrecisionBrew line of coffee brewers, the Grindmaster PB-430 features digital controls which make offering your customers the perfect cup of coffee more simple than ever! Brew volumes can be easily adjusted from 1/2 gallon to 1 1/2 gallons to minimize waste, while pulse brewing and pre-infusion options are available so that you can create your coffee exactly as you want it.

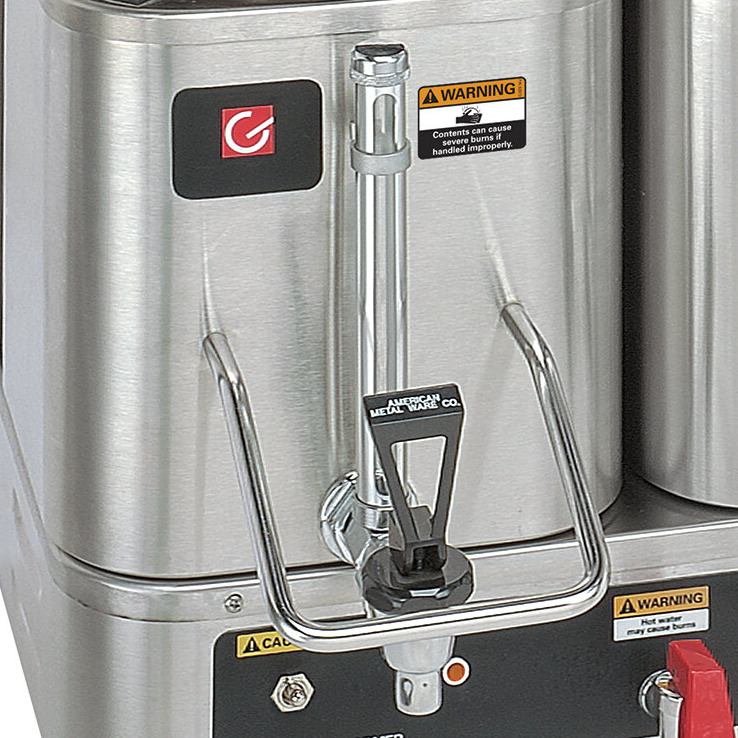

This model brews directly into the included 1.5 gallon radiant heat air-insulated ACS-1 shuttles, which are crafted from durable stainless steel. These shuttles are portable and keep their contents hot without any additional heat source. This model is also capable of brewing into 1.5 gallon air gap shuttles or 3L airpots (sold separately).

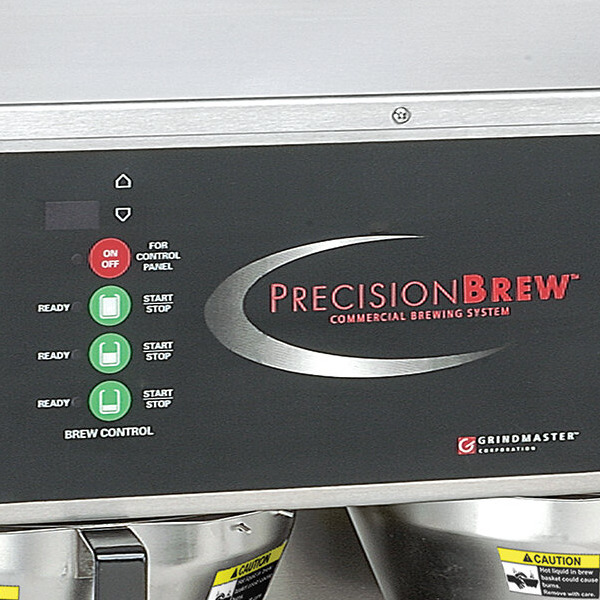

Controlled with PrecisionBrew technology, this model can be programmed to have specific water temperatures, brew volumes, pulse brewing sequences, bypass percentages, and more for efficient service. It even has an energy-saving sleep mode feature. The Pulse brewing feature has up to 10 pulses and can be especially useful, as it gives you complete control over the coffee grounds and water contact time. Use this brewer to offer all your guests a fresh cup of coffee brewed to perfection.

Overall Dimensions
Width: 18"
Depth: 18"
Height: 30"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Canada

    UL Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in Canada.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

Resources and Downloads for
Grindmaster-Cecilware PB-430 120/208

Warranty Info

Please Note: Grindmaster-Cecilware items may not be exported outside of the United States. Exporting these items will void the warranty.
