$408.99/Each

Ships free with Plus

Earn up to $12.27 back (1,227 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Improves air quality in commercial and industrial settings
  • Durable welded steel construction with powder-coated finish
  • 24" aluminum blade with OSHA-compliant, chrome-plated wire guards
  • Thermal overload protection for safe use
  • Energy-efficient 1/3 hp motor produces up to 5000 CFM; 115V, 1 phase
UPC Code:623451388246

Canarm SD24G56G01 Specs

Quantity
1/Each
Shipping Weight
56 lb.
Width
29 1/4 Inches
Depth
18 Inches
Height
29 1/4 Inches
Blade Diameter
24 Inches
Phase
1 Phase
Voltage
115 Volts
Assembled
Fully Assembled
Color
Gray
Horsepower
1/3 HP
Installation Type
Wall Mounted
Material
Aluminum  Steel
Max CFM
5,000 CFM
Motor Type
Open Ventilated
Plug Type
Hardwire
RPM
1,100 RPM
Speeds
1 Speed
Style
Fixed
Type
Wall-Mount Fans

Canarm SD24G56G01 Details

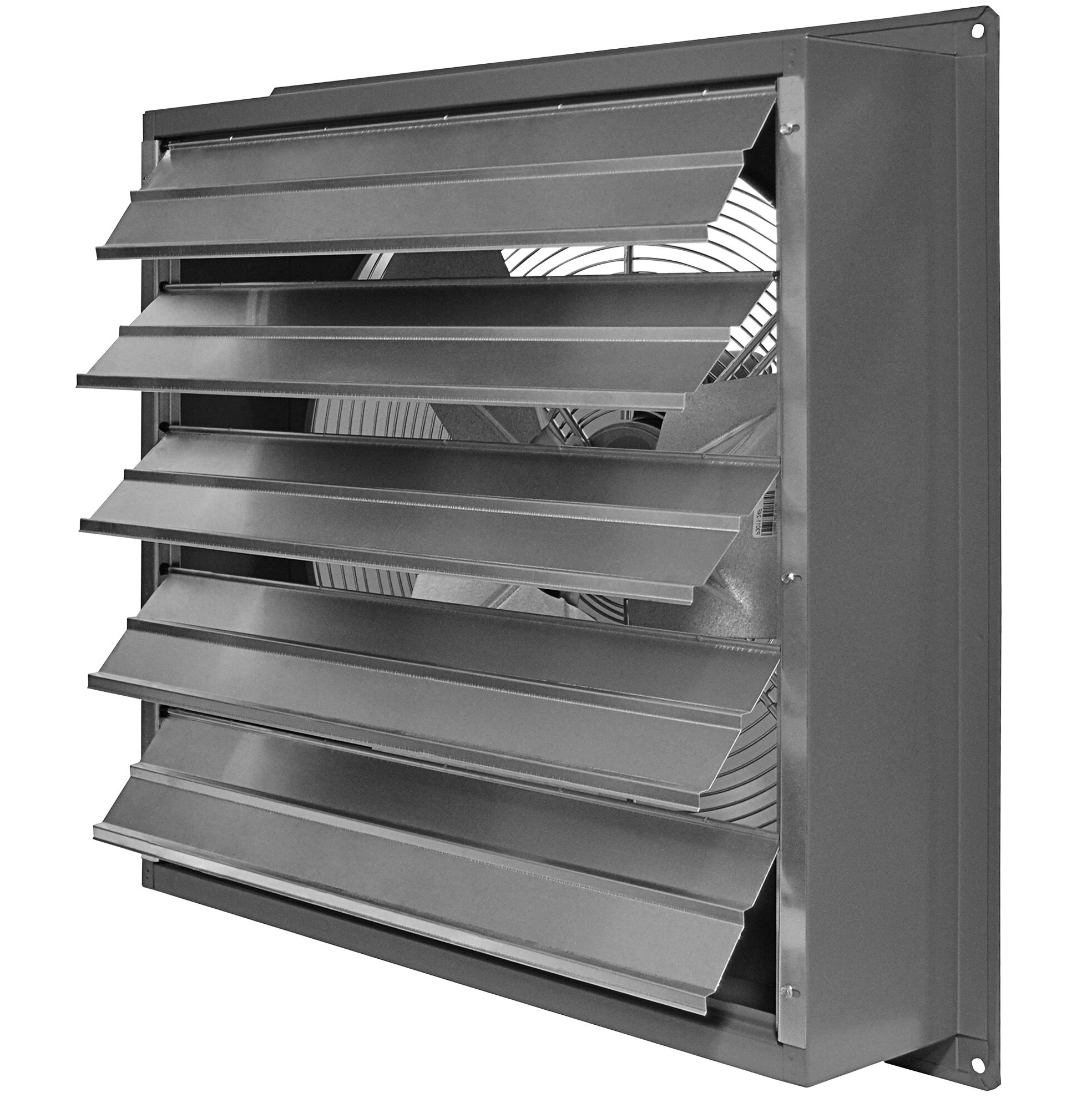

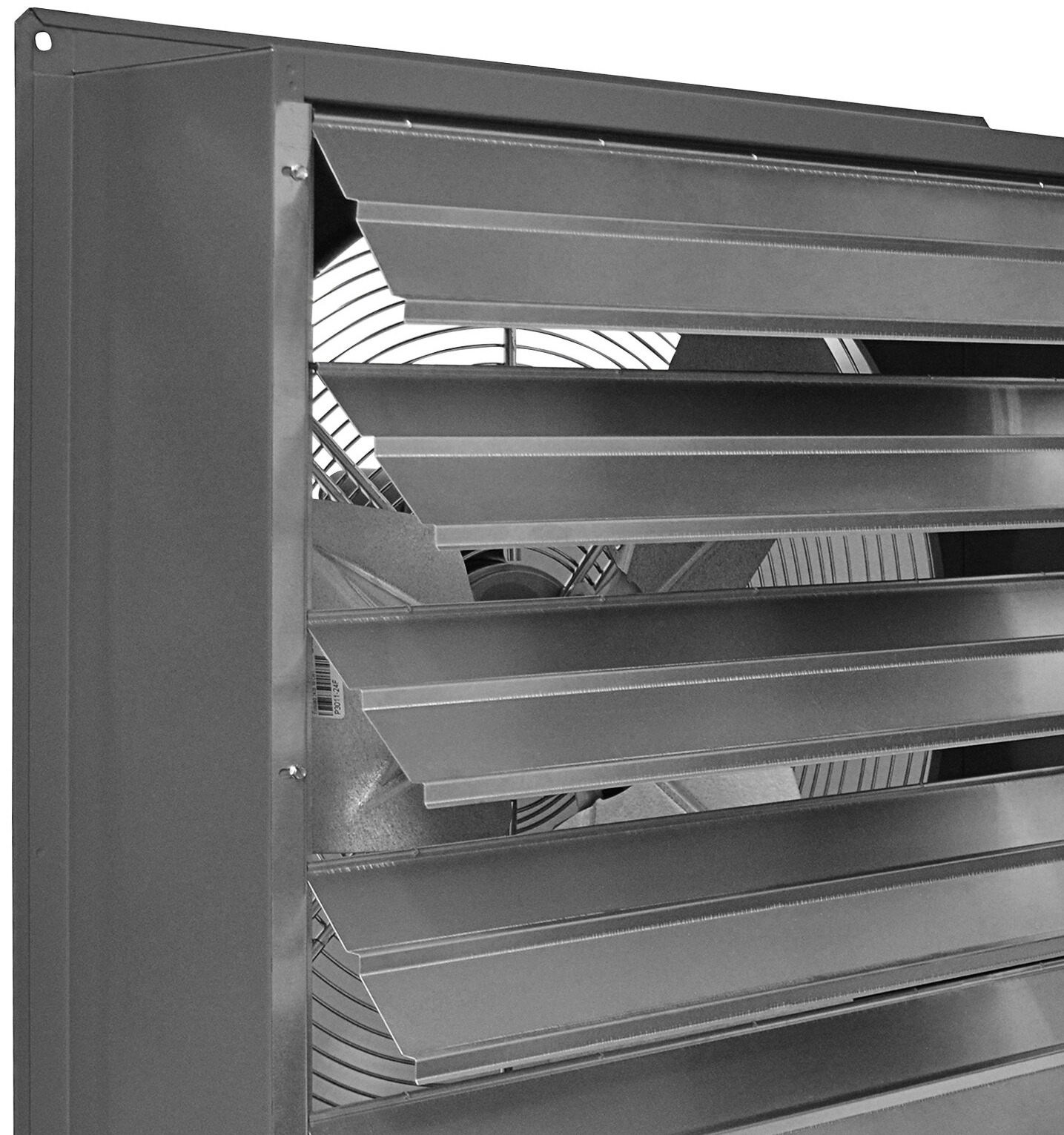

Ideal for industrial and commercial settings, this Canarm 24" 1-speed standard wall exhaust fan SD24-F1 provides ventilation to improve air quality in your facility. This rugged fan includes aluminum shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For energy-efficient operation, it features a 1/3 hp motor than can reach up to 5000 CFM.

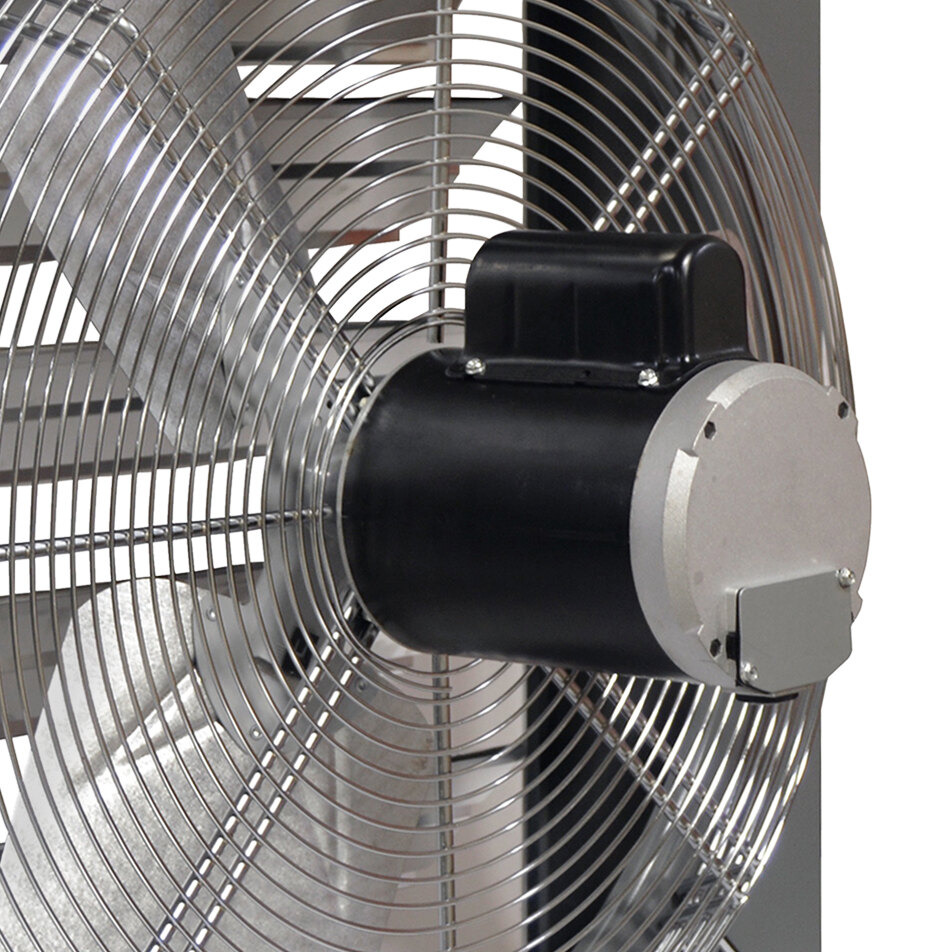

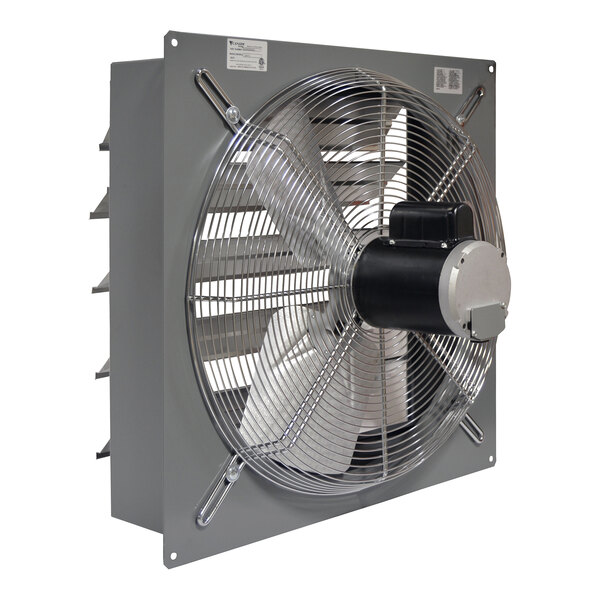

This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 24" aluminum blade protected by OSHA-compliant, chrome-plated wire guards on the intake side of the fan. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 115V, 1 phase electrical connection. It ships fully assembled for your convenience.

Overall Dimensions:
Width: 29 1/4"
Depth: 18"
Height: 29 1/4"

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Fully Assembled

    Fully Assembled

    This item arrives fully assembled, and requires no additional assembly prior to use.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
