Size: 24"

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Improves air quality in commercial and industrial settings
  • Durable welded steel construction with powder-coated finish
  • 24" aluminum blade with OSHA-compliant, chrome-plated wire guards
  • Thermal overload protection for safe use
  • Explosion-proof 1/3 hp motor produces up to 5500 CFM; 115/230V, 1 phase
UPC Code:623451499058

Canarm SD24-XPF Specs

Quantity
1/Each
Shipping Weight
100 lb.
Width
29 1/4 Inches
Depth
20 1/2 Inches
Height
29 1/4 Inches
Blade Diameter
24 Inches
Phase
1 Phase
Voltage
115/230 Volts
Assembled
Fully Assembled
Color
Gray
Horsepower
1/3 HP
Installation Type
Wall Mounted
Material
Aluminum  Steel
Max CFM
5,500 CFM
Motor Type
Open Ventilated
Plug Type
Hardwire
RPM
1,625 RPM
Speeds
1 Speed
Style
Fixed
Type
Wall-Mount Fans

Canarm SD24-XPF Details

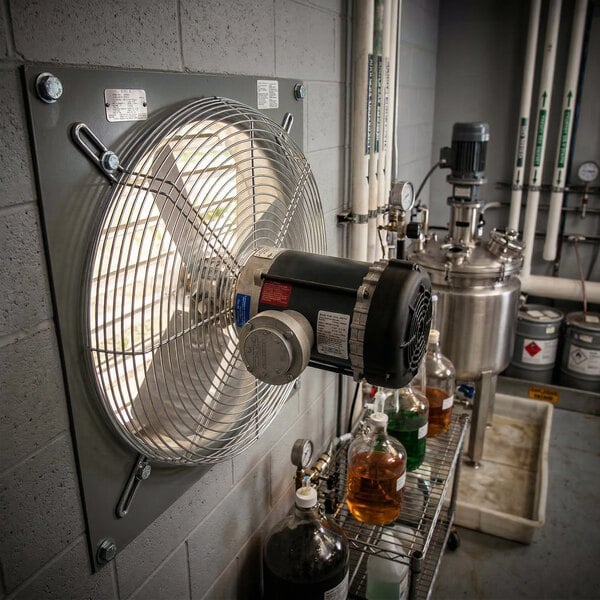

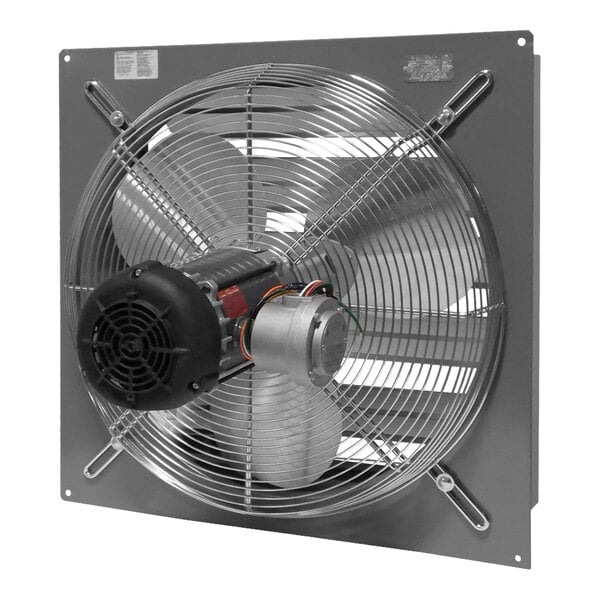

Ideal for industrial and commercial settings, this Canarm 24" 1-speed explosion-proof standard wall exhaust fan SD24-XPF provides ventilation to improve air quality in your facility. This rugged fan includes aluminum shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For energy-efficient operation, it features a 1/3 hp motor than can reach up to 5500 CFM. The motor is also explosion proof, ensuring safe use in a variety of atmospheres.

This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 24" aluminum blade protected by OSHA-compliant, chrome-plated wire guards on the intake side of the fan. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 115/230V, 1 phase electrical connection. It ships fully assembled for your convenience.

Overall Dimensions:
Width: 29 1/4"
Depth: 20 1/2"
Height: 29 1/4"

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Fully Assembled

    Fully Assembled

    This item arrives fully assembled, and requires no additional assembly prior to use.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
