Product Overview

  • Improves air quality in commercial and industrial settings
  • Durable welded steel construction with powder-coated finish
  • 42" aluminum blade with grey powder-coated wire guards
  • Thermal overload protection for safe use
  • Energy-efficient 1 hp motor produces up to 14900 CFM; 230V, 1 phase
UPC Code:623453605082

Canarm SD42-H1D Specs

Quantity
1/Each
Shipping Weight
160 lb.
Width
47 1/4 Inches
Depth
18 Inches
Height
47 1/4 Inches
Blade Diameter
42 Inches
Phase
1 Phase
Voltage
230 Volts
Assembled
Fully Assembled
Color
Gray
Horsepower
1 HP
Installation Type
Wall Mounted
Material
Aluminum  Steel
Max CFM
14,900 CFM
Motor Type
Open Ventilated
Plug Type
Hardwire
RPM
850 RPM
Speeds
1 Speed
Style
Fixed
Type
Wall-Mount Fans

Canarm SD42-H1D Details

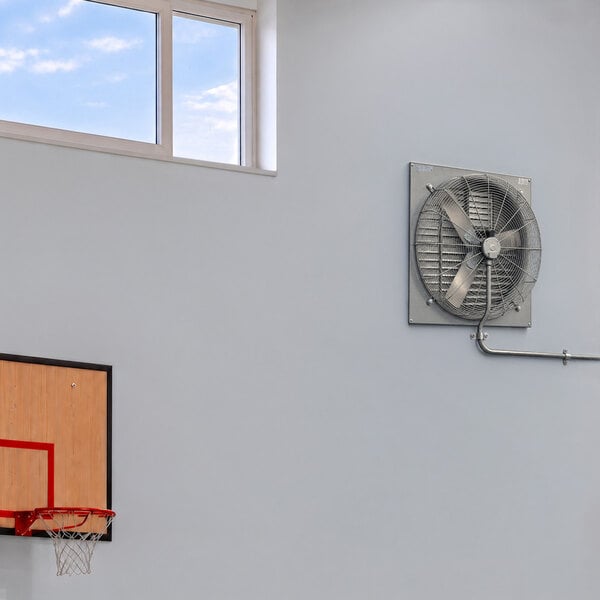

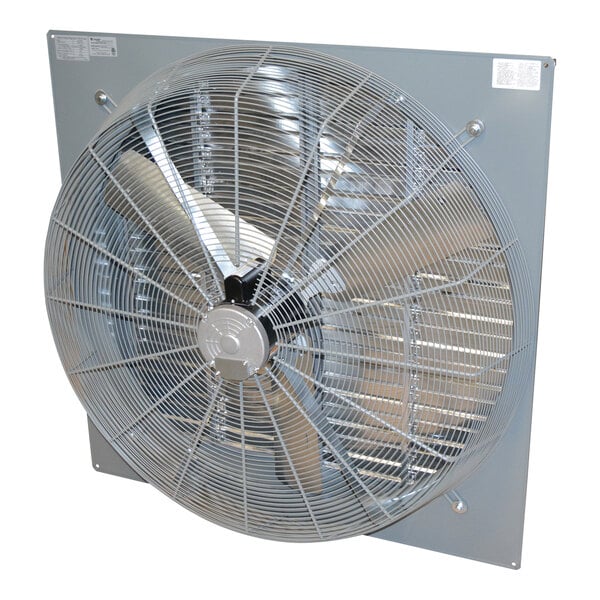

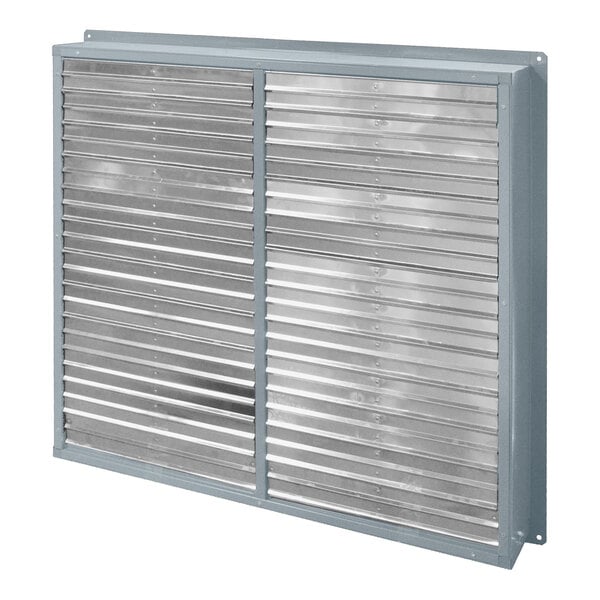

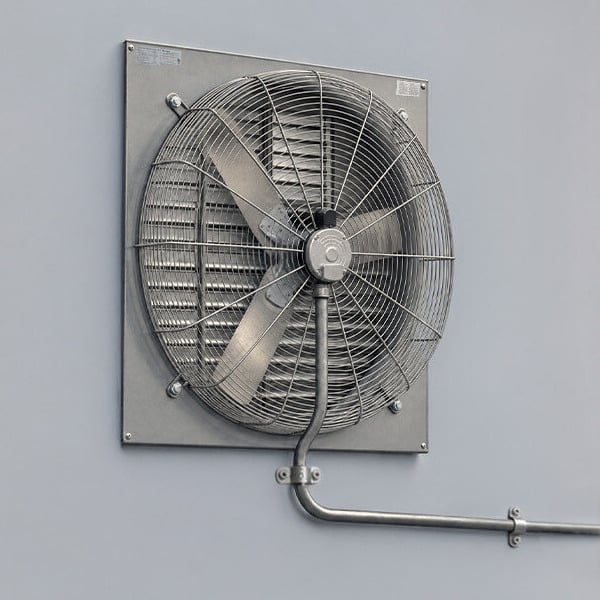

Ideal for industrial and commercial settings, this Canarm 42" 1-speed standard wall exhaust fan SD42-H1D provides ventilation to improve air quality in your facility. This rugged fan includes aluminum shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For energy-efficient operation, it features a 1 hp motor than can reach up to 14900 CFM.

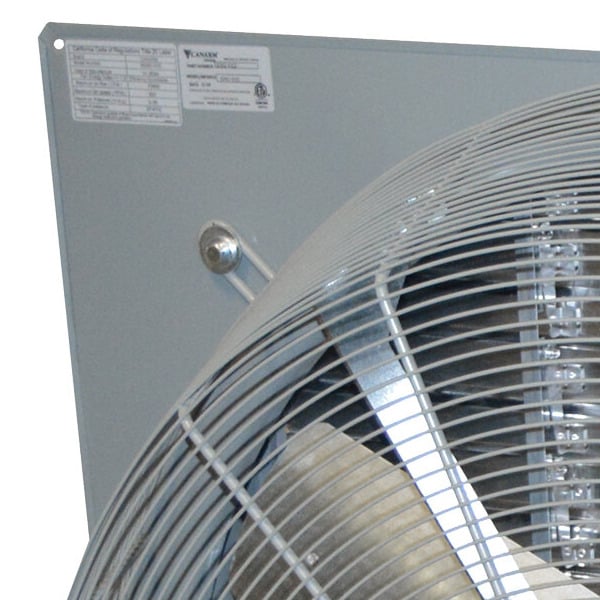

This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 42" aluminum blade protected by grey powder-coated wire guards. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 230V, 1 phase electrical connection. It ships fully assembled for your convenience.

Overall Dimensions:
Width: 47 1/4"
Depth: 18"
Height: 47 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Fully Assembled

    Fully Assembled

    This item arrives fully assembled, and requires no additional assembly prior to use.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
