$1,019.00/Each
Discounted shipping with PlusEarn up to $30.57 back (3,057 points)with a Webstaurant Rewards Visa® Credit Card
Size: 48"
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 48" aluminum blade with grey powder-coated wire guards
- Thermal overload protection for safe use
- Energy-efficient 1 hp motor produces up to 17200 CFM; 230V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 151 lb.
- Width
- 53 1/4 Inches
- Depth
- 19 Inches
- Height
- 53 1/4 Inches
- Blade Diameter
- 48 Inches
- Phase
- 1 Phase
- Voltage
- 230 Volts
- Assembled
- Fully Assembled
- Color
- Gray
- Horsepower
- 1 HP
- Installation Type
- Wall Mounted
- Material
- Aluminum Steel
- Max CFM
- 17,200 CFM
- Motor Type
- Open Ventilated
- Plug Type
- Hardwire
- RPM
- 850 RPM
- Speeds
- 1 Speed
- Style
- Fixed
- Type
- Wall-Mount Fans
Canarm SD48-H1D Details

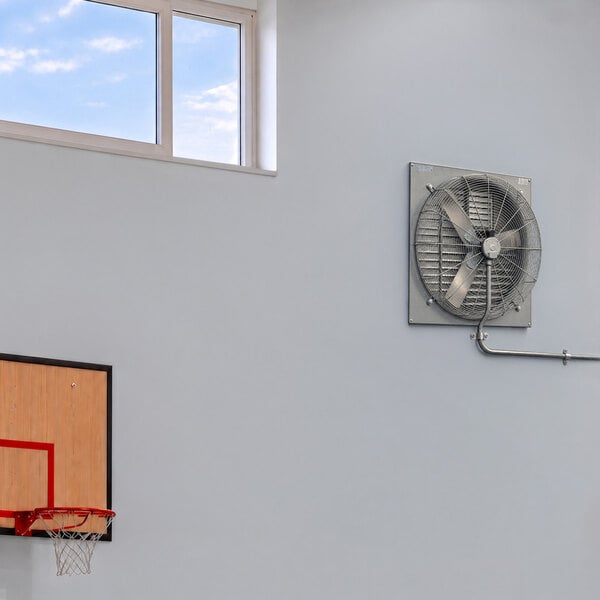

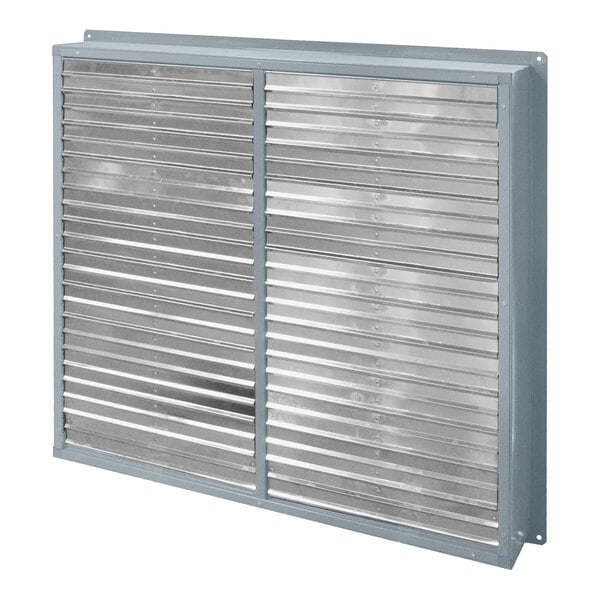

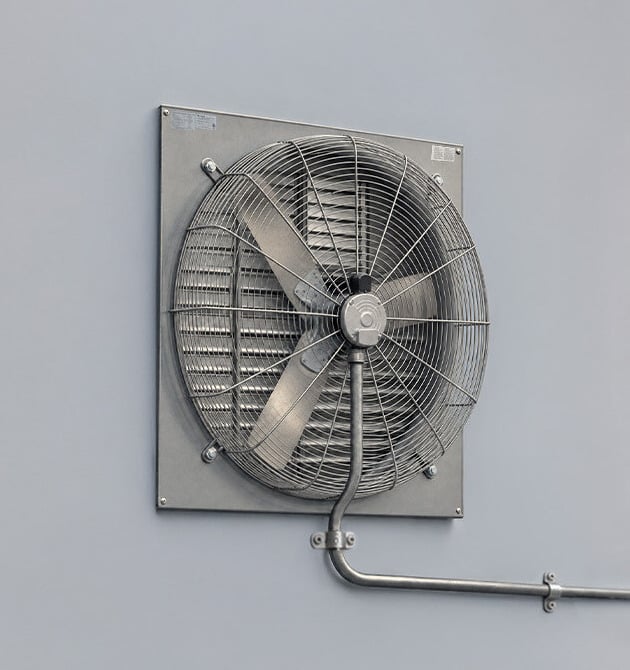

Ideal for industrial and commercial settings, this Canarm 48" 1-speed standard wall exhaust fan SD48-H1D provides ventilation to improve air quality in your facility. This rugged fan includes aluminum shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For energy-efficient operation, it features a 1 hp motor than can reach up to 17200 CFM.

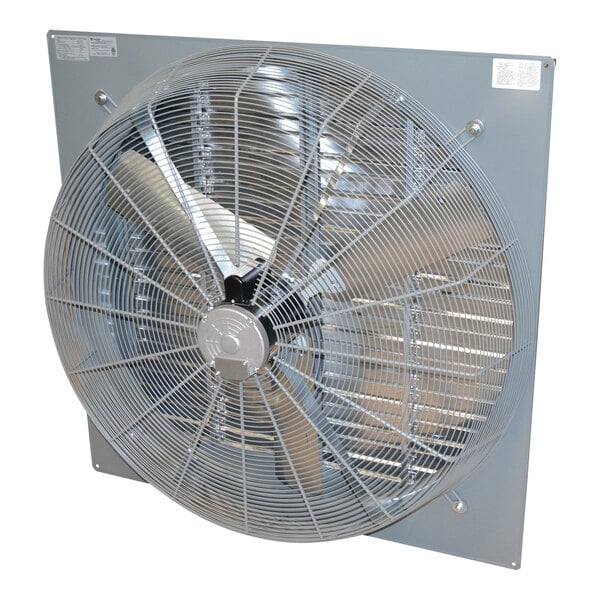

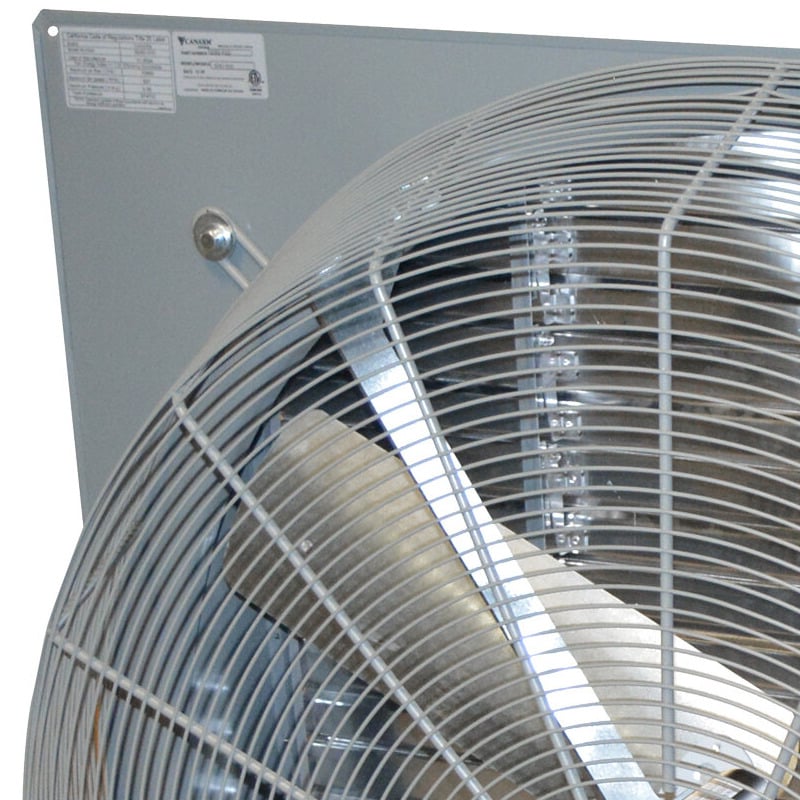

This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 48" aluminum blade protected by grey powder-coated wire guards. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 230V, 1 phase electrical connection. It ships fully assembled for your convenience.
Overall Dimensions:
Width: 53 1/4"
Depth: 19"
Height: 53 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
