Canarm 20" 1-Speed Standard Wall Exhaust Fan S20-F1 - 3,420 CFM, 1 Phase, 1/3 hp
Item number 664sd200411MFR number SD200411
Apply, opens link in this tabEarn up to $11.31 back (1,131 points)
(1,131 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 20" aluminum blade with chrome-plated heavy wire guards
- Thermal overload protection for safe use
- Efficient 1/3 hp motor produces up to 3,420 CFM; 115V, 1 phase
UPC Code:062345100180

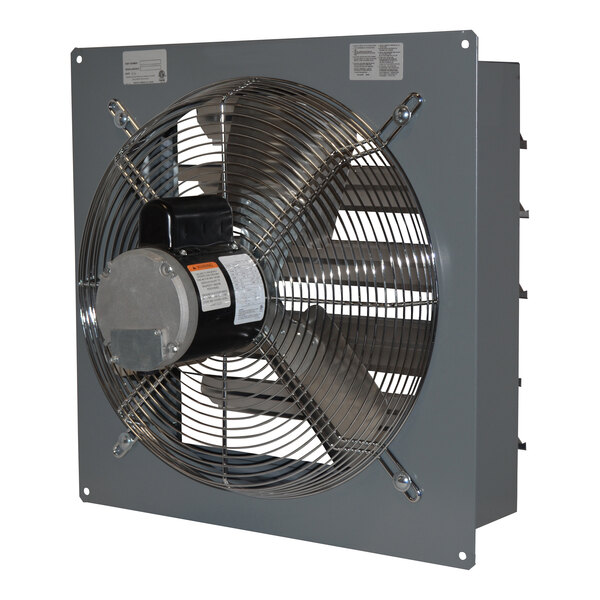

Ideal for industrial and commercial settings, this Canarm standard wall exhaust fan provides ventilation to improve air quality in your facility.
This Canarm exhaust fan includes a durable 20" aluminum blade protected by chrome-plated heavy wire guards on the intake side of the fan. For optimal performance, it features a 1-speed, direct-drive, 1/3 hp motor that reaches up to 3,420 CFM and has a maximum RPM of 1,625. This unit requires a 115V, 1 phase electrical connection.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
Built for Continuous Operation

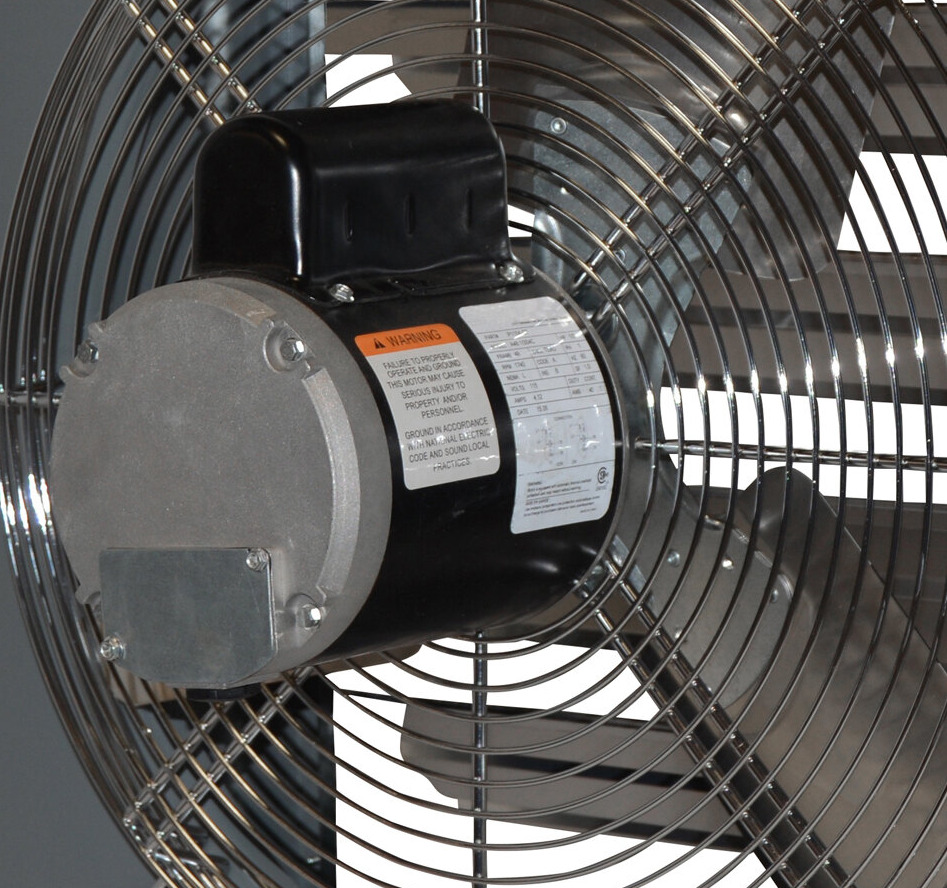

Designed to help protect against dust, dirt, and moisture, the motor is completely enclosed and features thermal overload protection to prevent overheating while providing reliable performance for continuous-duty applications.
Durable Construction

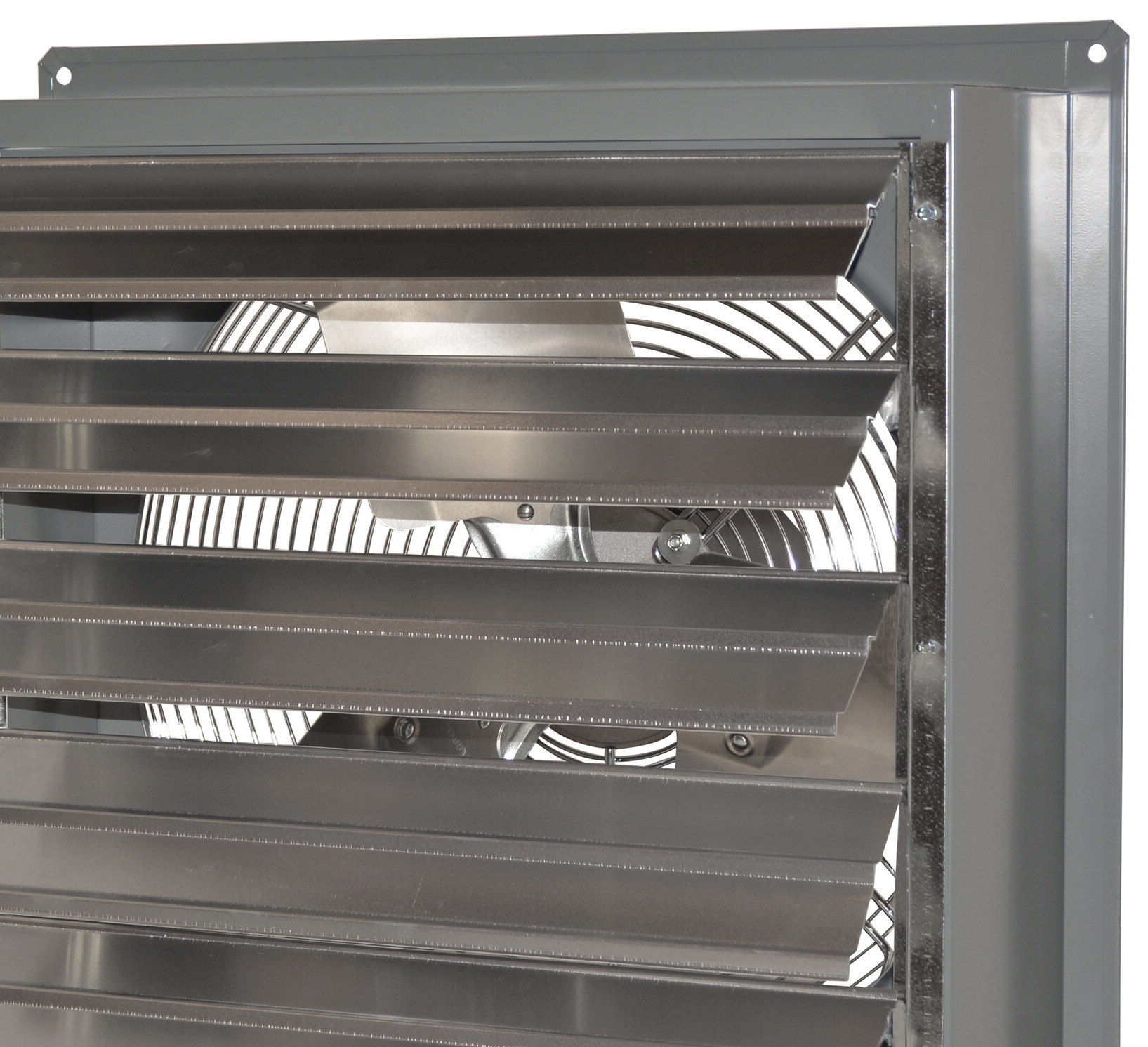

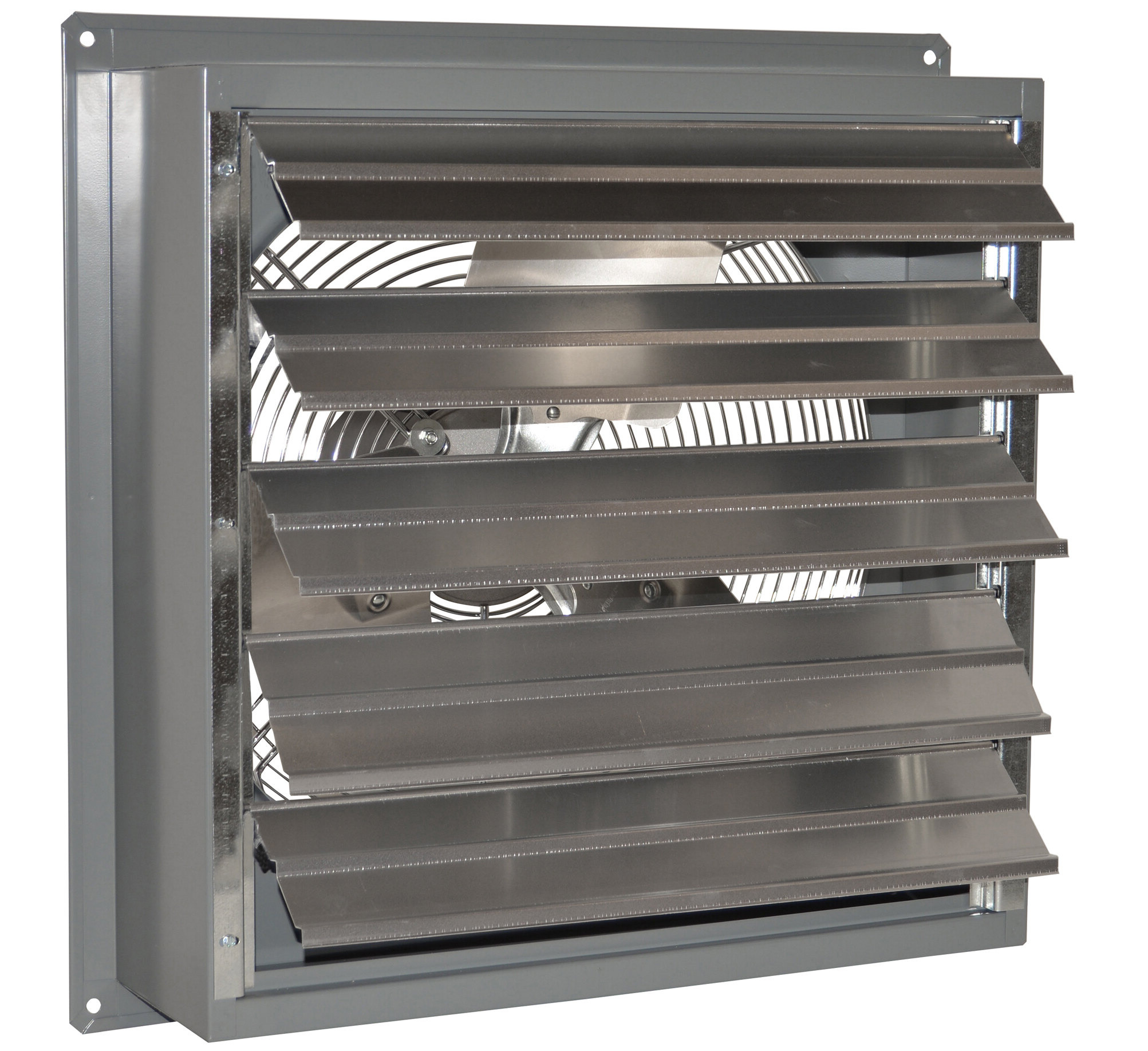

This rugged fan includes durable aluminum louver shutters with nylon bushings to help prevent backdraft when not in use, minimizing unwanted air exchange. Plus, the shutters have a tie bar to maximize airflow and a magnet that secures the louvers in place when not in operation, providing quiet operation and a superior seal. This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use.
Convenient and Versatile
Perfect for use in workshops, garages, warehouses, architectural buildings, and light industrial facilities, this exhaust fan installs from inside the wall without the need for external framing or shutters. This allows you to maximize usable interior space while directly and efficiently exhausting stale or contaminated air, making it a versatile and effective option for retrofit projects or new construction.
Ships Fully Assembled
For added convenience, this Canram standard wall exhaust fan ships fully assembled and is simple to install using only four screws (sold separately), reducing the amount of time it takes to set up.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
What materials will my unit be constructed with?
Canarm exhaust fans have a powder-coated steel housing. However, components such as the blade and/or louvers are constructed of aluminum.
Overall Dimensions:
- Width:
- 25 1/4 Inches
- Depth:
- 18 Inches
- Height:
- 25 1/4 Inches
- Blade Diameter:
- 20 Inches
