Product Overview

  • Makes up to 129 lb. of full cube ice per day
  • Durable 304 stainless steel exterior with polyethylene interior
  • Digital controller allows user to quickly identify issues and the current stage of production

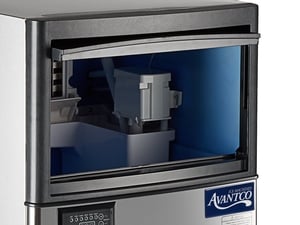

  • Bright LED lights illuminate the ice bin and removable air filter allows for quick cleaning
  • Eco-friendly R290 refrigerant; 115V; NEMA 5-15P
UPC Code:400013671578
Shipping:
Quick Shipping
Usually ships in 1 business day
View all Avantco Ice Machines Undercounter Ice Machines

Works With

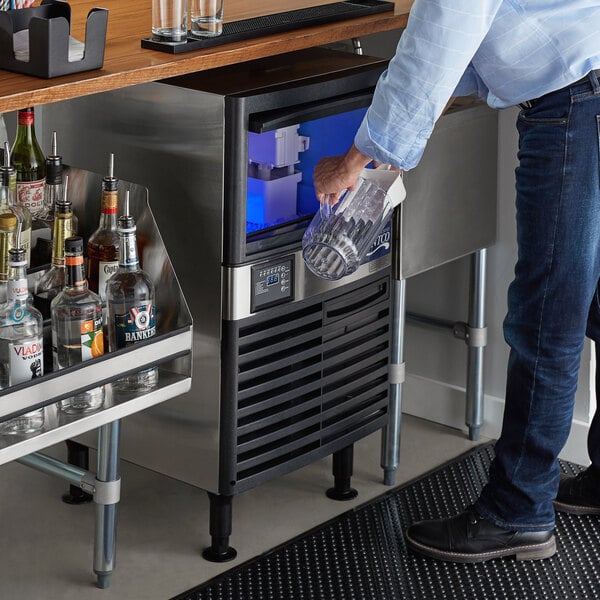

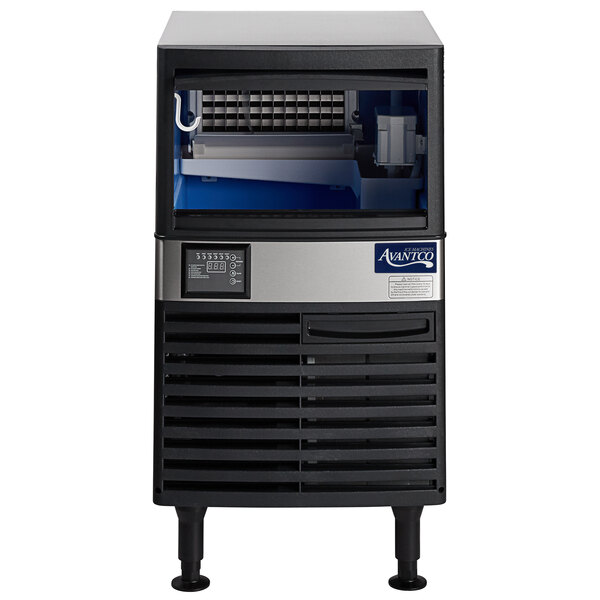

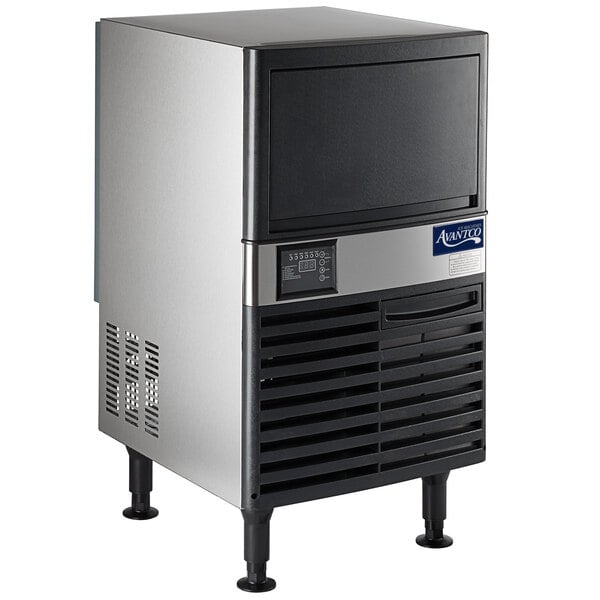

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice UC-F-120-A 19" air cooled undercounter full cube ice machine!

Capable of producing up to 129 lb. of full cube ice per day, these narrow footprint undercounters are great for the tight space needs of busy restaurants, bars or cafes. The narrow footprint design is great for saving on space and includes a 40 lb. bin to hold ice once it is made.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection.

Intuitive Diagnostics

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

Ice Monitoring

This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Oceanloch Mounting Holes

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

Adjustable legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it. This unit requires a 115V electrical connection for operation.

Customer Q&AAsk a Question

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
Why is a water filter automatically added to my cart with this item?
The use of poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality and a compatible water filter will be included when you add this piece of equipment to your cart. You may remove the filter from the cart prior to purchase.
Why is my Ice Machine not storing its claimed bin capacity?
Avantco Ice Machine’s capacity is based on a calculation using the bin’s dimensions. Also, they have a sensor to stop the ice making process which is located in the middle of where the ice pile stacks up. In order to maximize your possible capacity make sure to periodically spread around the ice in the bin and break up the ice sheets if possible.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

Compare to Other Products

Overall Dimensions:
  • Width:19 11/16 Inches
  • Depth:23 5/16 Inches
  • Height:35 1/2 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Need Parts & Accessories?

View replacements or accessories for this item

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

  • Types of Ice Machines
    • Specs
    Quantity1/Each
    Shipping Weight101 lb.
    Width19 11/16 Inches
    Depth23 5/16 Inches
    Height35 1/2 Inches
    Amps5 Amps
    Hertz60 Hertz
    Phase1 Phase
    Voltage115 Volts
    24 Hour Ice Yield129 Pounds
    Ambient Temperature Range40 - 90 Degrees F
    Average Running Decibels66 Decibels
    Bin Storage Capacity40 lb.
    BTU Per Hour1,522 BTU
    Condenser Type Air Cooled
    Ice Type Full Size Cubes
    Installation Type Undercounter
    Material Stainless Steel
    Max Fuse Size 15 Amps
    Net Weight100 LBS
    Packaging Dimensions 22.9"W x 26.4"D x 32.9"H
    Plug Type NEMA 5-15P
    Power kWh/100 lbs. Ice8.7 kWh
    Power Usage8.7 kWh per 100 lbs.
    Refrigerant Type R-290
    Type Ice Machines
    Water Pressure Range18 3/4 - 80 PSI
    Water Temperature Range40 - 90 Degrees F
    Water Usage22.8 Gallons per 100 lbs.
