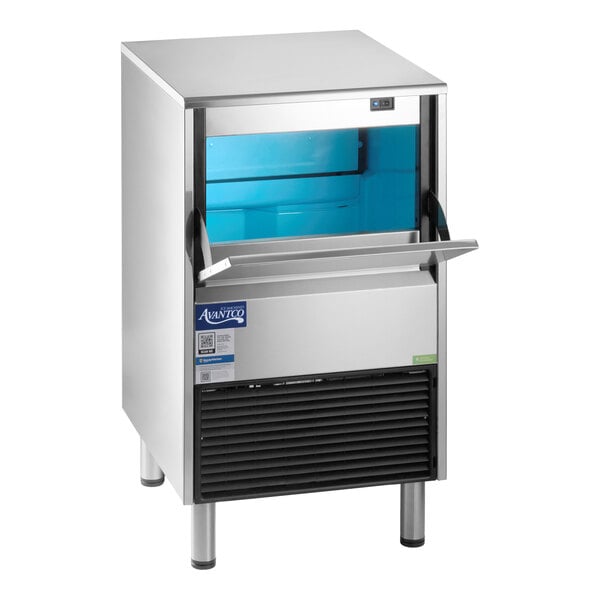

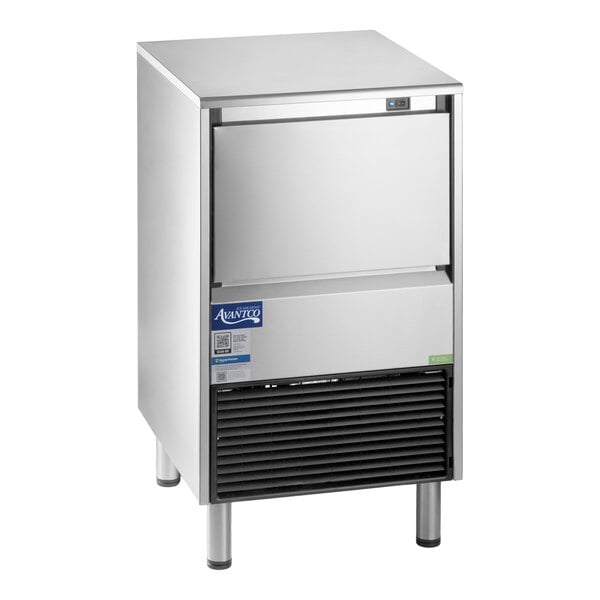

Avantco Ice Diamond EUC-F-130-A Air-Cooled Undercounter Full Cube Ice Machine with 44 lb. Bin - 134 lb., 115V
Item number 194eucf130a
$1,799.00/Each
Ships free with
Earn up to $53.97 back (5,397 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 134 lb. of full cube ice per day and stores up to 44 lb.
- Durable AISI 304 stainless steel frame
- Front-facing ventilation allows for built-in unit installation
- Cleaning mode circulates water and a descaling agent
- Height-adjustable legs allow for leveling and easy cleaning underneath
UPC Code:400017767093
Works With
- Quantity
- 1/Each
- Shipping Weight
- 117.5 lb.
- Width
- 24 1/16 Inches
- Depth
- 25 13/16 Inches
- Height
- 35 13/16 Inches
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 134 Pounds
- Ambient Temperature Range
- 43 - 109 Degrees F
- Bin Storage Capacity
- 44 lb.
- Condenser Type
- Air Cooled
- Features
- Adjustable Legs NSF Certified
- Ice Type
- Cubes Full Size Cubes
- Installation Type
- Undercounter
- Material
- Stainless Steel
- Plug Type
- NEMA 5-15P
- Product Line
- Avantco Ice Diamond
- Refrigerant Type
- R-290
- Stainless Steel Type
- Type 304
- Type
- Ice Machines with Bins
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 14 - 85 PSI
- Water Temperature Range
- 35 - 95 Degrees F
Details

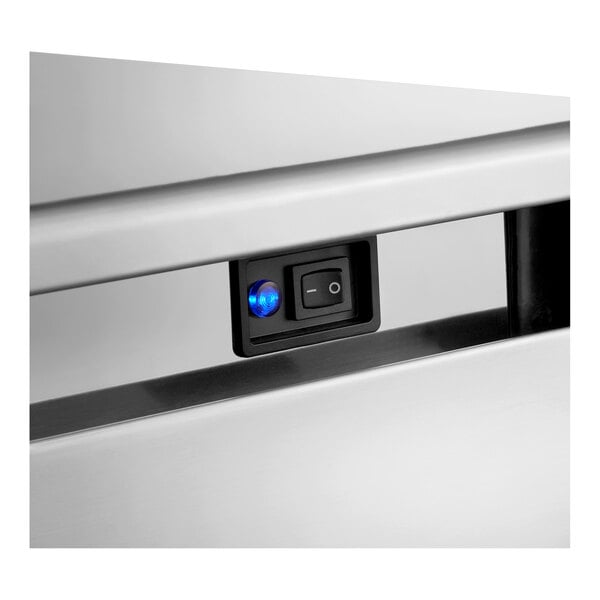

Make sure you've always got plenty of fresh ice on hand with this Avantco Ice Diamond ice machine! This ice machine boasts a space-saving undercounter design, and it has front-facing ventilation for built-in unit installation. It produces up to 134 lb. of full cube ice per day and stores up to 44 lb. of ice in its built-in ice bin. It is easy to use with a lighted on / off rocker switch on its front panel, and it operates using R-290 refrigerant for reduced energy usage. This ice machine features a robust 4-column frame made of AISI 304 stainless steel for long-lasting durability.
This ice machine has a cleaning mode that circulates water and a descaling agent without activating cooling. It includes a sealless pump to prevent wear and tear in hard water conditions. Each of its exterior panels can be removed independently to simplify maintenance. This ice machine has stainless steel legs that adjust up to 1" for leveling on uneven surfaces and easy cleaning underneath. It requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 24 1/16"
Depth: 25 13/16"
Height: 35 13/16"
Bin Capacity: 44 lb.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
5-15P
This unit comes with a NEMA 5-15P plug.
NSF Certified
This item is certified by NSF to applicable standards.
