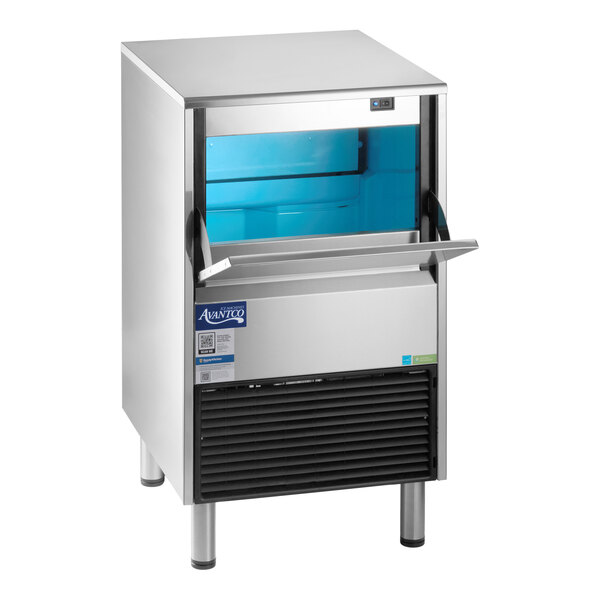

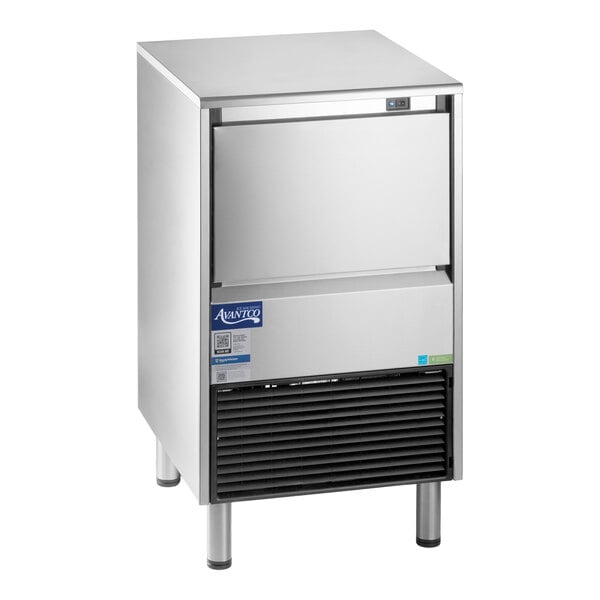

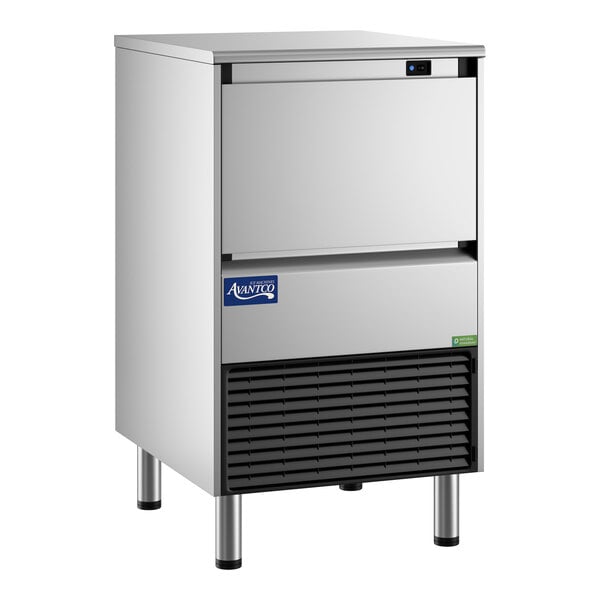

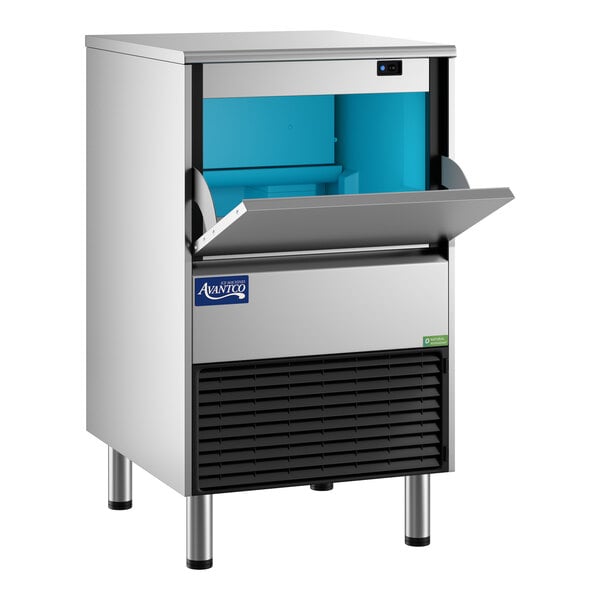

Avantco Ice Diamond EUC-H-130-A Air-Cooled Undercounter Half Cube Ice Machine with 44 lb. Bin - 134 lb., 115V
Item number 194euch130a
$1,799.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Produces up to 134 lb. of half cube ice per day and stores up to 44 lb.
- Durable AISI 304 stainless steel frame
- Front-facing ventilation allows for built-in unit installation
- Cleaning mode circulates water and a descaling agent
- Height-adjustable legs allow for leveling and easy cleaning underneath
- Quantity
- 1/Each
- Shipping Weight
- 119.5 lb.
- Width
- 24 1/16 Inches
- Depth
- 25 13/16 Inches
- Height
- 35 13/16 Inches
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 134 Pounds
- Ambient Temperature Range
- 43 - 109 Degrees F
- Bin Storage Capacity
- 44 lb.
- Condenser Type
- Air Cooled
- Features
- Adjustable Legs NSF Listed
- Ice Type
- Cubes Half Size Cubes
- Installation Type
- Undercounter
- Material
- Stainless Steel
- Plug Type
- NEMA 5-15P
- Product Line
- Avantco Ice Diamond
- Refrigerant Type
- R-290
- Stainless Steel Type
- Type 304
- Type
- Ice Machines with Bins
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 14 - 85 PSI
- Water Temperature Range
- 35 - 95 Degrees F
Details

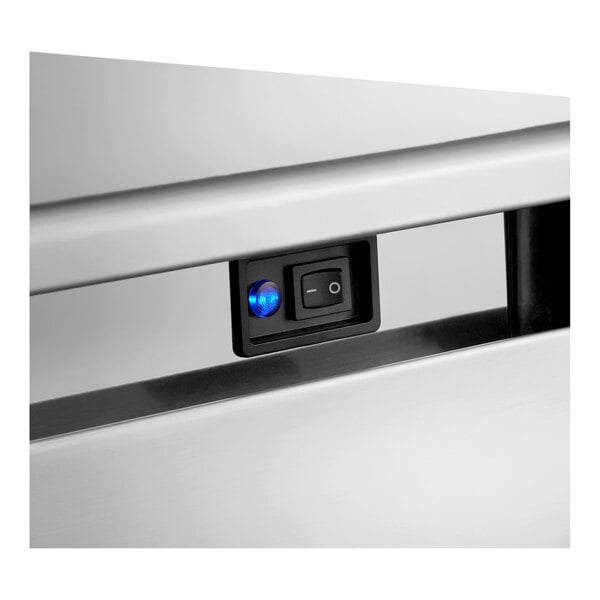

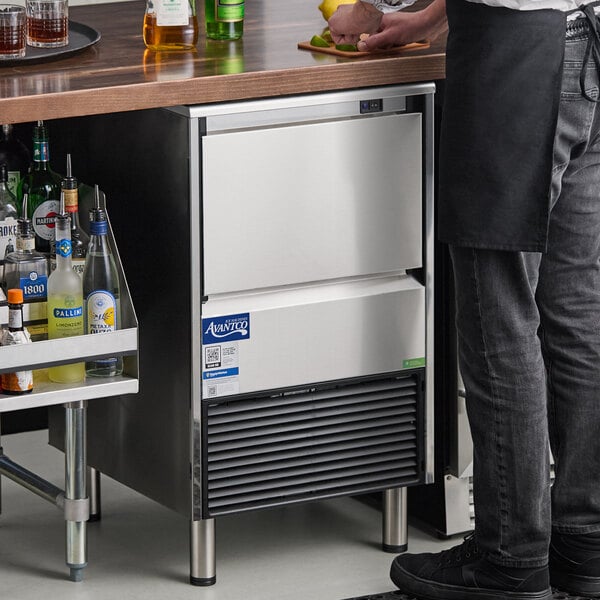

Make sure you've always got plenty of fresh ice on hand with this Avantco Ice Diamond ice machine! This ice machine boasts a space-saving undercounter design, and it has front-facing ventilation for built-in unit installation. It produces up to 134 lb. of half cube ice per day and stores up to 44 lb. of ice in its built-in ice bin. It is easy to use with a lighted on / off rocker switch on its front panel, and it operates using R-290 refrigerant for reduced energy usage. This ice machine features a robust 4-column frame made of AISI 304 stainless steel for long-lasting durability.

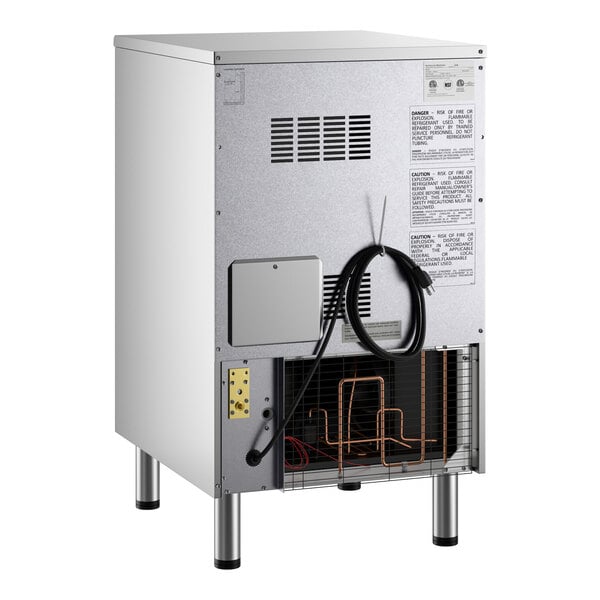

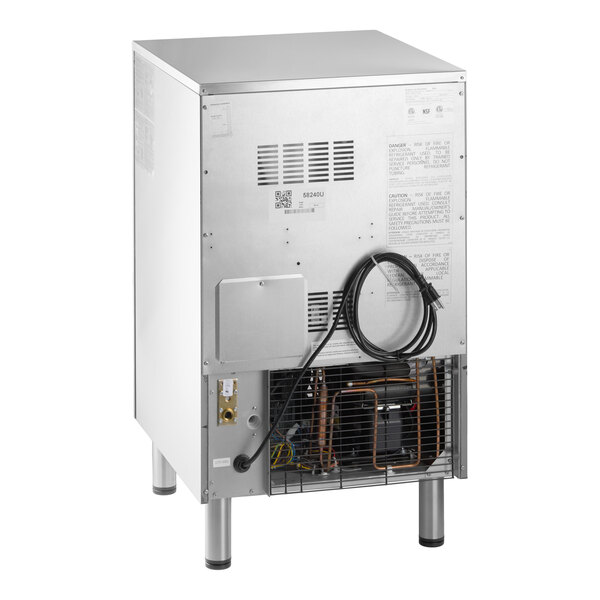

This ice machine has a cleaning mode that circulates water and a descaling agent without activating cooling. It includes a sealless pump to prevent wear and tear in hard water conditions. Each of its exterior panels can be removed independently to simplify maintenance. This ice machine has stainless steel legs that adjust up to 1" for leveling on uneven surfaces and easy cleaning underneath. It requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 24 1/16"
Depth: 25 13/16"
Height: 35 13/16"
Bin Capacity: 44 lb.

ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

5-15P
This unit comes with a NEMA 5-15P plug.

NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
