Regularly

$1,839.00/Each

$1,719.00/Each

Ships free with Plus

Earn up to $55.17 back (5,517 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Corrosion-resistant stainless steel exterior and aluminum interior with 304 stainless steel floor
  • Compact, undercounter size takes up minimal space
  • Easy-to-read digital temperature controller and auto-defrost function
  • Self-closing and stay-open door features for easy loading and unloading of product
  • 115V; 1/5 hp; R290 refrigerant
UPC Code:400016176254

Specs

Quantity
1/Each
Shipping Weight
254 lb.
Width
60 3/16 Inches
Depth
29 1/2 Inches
Interior Width
55 5/8 Inches
Left Door Opening Width
25 11/16 Inches
Right Door Opening Width
25 11/16 Inches
Shelf Width
27 1/4 Inches
Interior Depth
22 7/8 Inches
Shelf Depth
17 Inches
Interior Height
23 1/2 Inches
Work Surface Height
35 1/4 Inches
Caster Diameter
5 Inches
Amps
2.6 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Wattage
285 Watts
Access Type
Doors
BTU (LBP)
860 BTU
Capacity
15 cu. ft.
Casters
With Casters
Compressor Location
Rear Mounted
Compressor Style
Side / Rear Breathing
Construction
Stainless Steel and Aluminum
Door Style
Swing
Door Type
Solid
Features
Casters  Removable Magnetic Door Gaskets  Self-Closing Doors  Stay-Open Doors
Horsepower
1/5 HP
Individual Shelf Capacity
88 lb.
Maximum Ambient Temperature
100 Degrees F
Number of Doors
2 Doors
Number of Shelves
2 Shelves
Plug Type
NEMA 5-15P
Refrigerant Capacity
3.5 oz.
Refrigerant Type
R-290
Shelf Material
Plastic Coated Steel
Starting Amps
7.8 Amps
Starting Wattage
855 Watts
Temperature Range
33 - 40 Degrees F
Top Capacity
441 lb.

Details

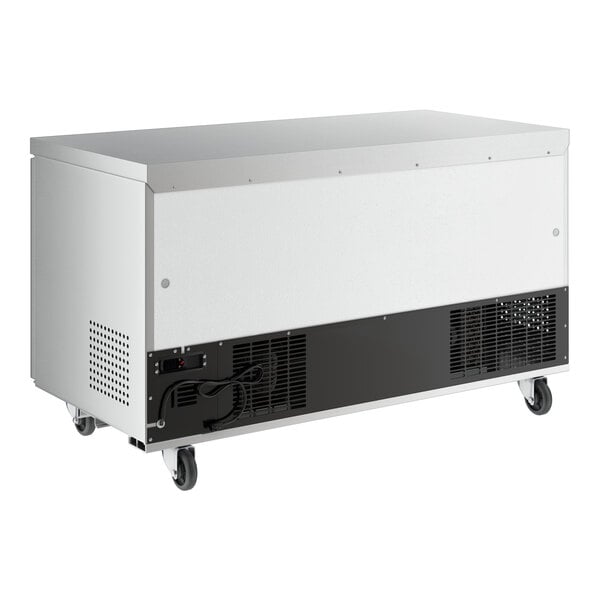

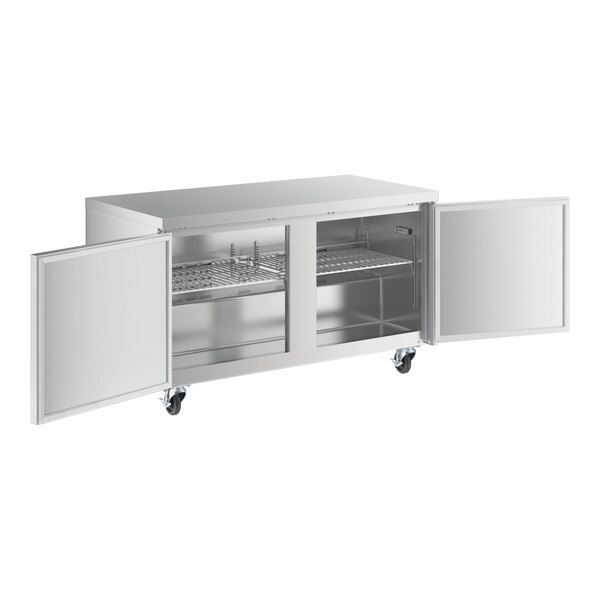

The Avantco AU-60R-HC 60" undercounter refrigerator will provide you with a dependable cold food storage solution. With a spacious refrigerator portion readily accessible through its two doors, the unit opens up to two shelves that will aid in organizing your ingredients. Plus, because they each accommodate up to 88 lb., the epoxy-coated steel shelves are well-equipped for holding heavy bulk ingredients, from dozens of eggs to jars of condiments and sauces.

This unit is designed for outstanding durability to ensure that it withstands busy kitchen environments with ease. It features a stainless steel exterior, which provides both strength and a smooth, sleek appearance. The painted aluminum interior with a 304 stainless steel floor also offers the stability necessary for heavy, regular use. Because of its undercounter design, the refrigerator effortlessly adds cold storage space beneath a pre-existing countertop and doesn't require additional space for its own footprint.

This unit ensures optimal performance by operating with a 1/5 hp refrigeration system that circulates R290 refrigerant to maintain temperatures from 33 to 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. The foamed-in-place polyurethane insulation helps provide structural rigidity and maintain internal temperatures.

Operation of the refrigerator is easy, thanks to its special features. Monitor temperatures by consulting the interior wall-mounted thermometer and use the auto-defrost feature on the pre-programmed digital controller to keep the unit in excellent shape. Take advantage of the included casters and roll the unit aside to thoroughly clean the area. This undercounter refrigerator requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 60 3/16"
Depth: 29 1/2"
Working Height: 35 1/4"
Capacity: 15 cu. ft.

Interior Dimensions:
Width: 55 5/8"
Depth: 22 7/8"
Height: 23 1/2"

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Can this unit be built into cabinetry?

It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.

Does adding optional accessories impact the lead time on this product?

Yes. If optional accessories are added to this product, this product may require additional lead time.

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

Does this item ship to Canada?

This product cannot be shipped to Canada.

How do I correctly install the shelves into this unit?

To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.

How do I know if this unit will fit under or match the height of my ADA-height counter?

Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:

Counter Height: Work surface is more than 34" high; standard-height unit.

ADA Height: Work surface height is 34" or less; complies with ADA regulations.

Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.

If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My unit was delivered, but I don’t see any casters?

The units come with casters preassembled underneath the pallet.

Why is there a step in the interior of this undercounter unit?

This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
Ask your own question!
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Avantco Refrigeration equipment with a labor warranty purchased prior to May 1st, 2024, is warranted for 1-year parts & labor / 5-year compressor. Any equipment installed outdoors, in a temporary structure, food truck, other mobile application, or in a residence or home-based business is covered by a 30-day replacement warranty through the place of purchase.
