Waterloo 0.65 GPM Low Profile Wall-Mounted Pre-Rinse Faucet with 8" Centers

Item number 750prwl8xlf

Video is loading

Free Shipping

Only

$272.99/Each

Ships free with

Earn up to $8.19 back (819 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

23" hose with 0.65 GPM low flow spray valve
Wall-mounted design with 8" adjustable centers and 1/2" NPT inlets
Quarter-turn ceramic cartridges and check valves for high performance
Heavy-duty faucet base and spray valve with chrome-plated brass construction
Includes 10" riser and 6" wall bracket with low profile for height-restricted areas

UPC Code:400013805997

View All Products From Waterloo

View all Waterloo Pre-Rinse Faucets

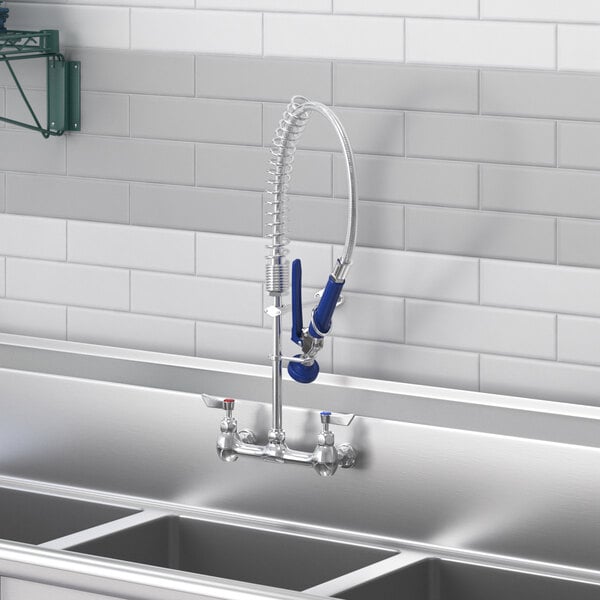

Outfit your facility with this Waterloo low profile wall-mounted pre-rinse faucet!

This Waterloo pre-rinse faucet is perfect for rinsing excess food off your dishes before cleaning them in your commercial dish machine, removing the heaviest soil deposits so that dishes come out clean and ready to use. A 23" long flexible hose gives you plenty of reach to deliver water where you need it, letting you handle glassware and dinnerware, or bulky items like pots and pans. Great for height-restricted installations, its reduced height makes it a perfect fit for commercial kitchens where space is at a premium.

CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Low Flow Spray Valve

The spray valve delivers a low flow rate of 0.65 GPM, giving you the right amount of power needed to blast away food debris while being easy on your water bill. The heavy-duty valve body is designed with a comfort grip handle and uses metal components for maximum durability and leak protection. Additionally, the spring has a compressed bottom to provide greater durability and help retain its shape.

Reliable Design

This faucet features quarter-turn ceramic cartridges that provide a much lower fail rate than compression cartridges. In this design, 2 ceramic discs fit together to create a watertight seal when closed, removing the need for a rubber seat washer. Additionally, the check valves prevent backflow for added dependability.

Easy Installation

This heavy-duty, wall-mounted faucet comes with 8" adjustable centers for easy installation, and the 1/2" NPT inlet connections make it easy to connect it to your facility's water lines. This unit also comes with a 10" riser and a 6" wall bracket to secure it to the wall for added stability. Required installation kits are sold separately.

Waterloo Brand

Waterloo products provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies, ceramic cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install Waterloo products with confidence.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What parts do I need to install my new faucet?

For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!

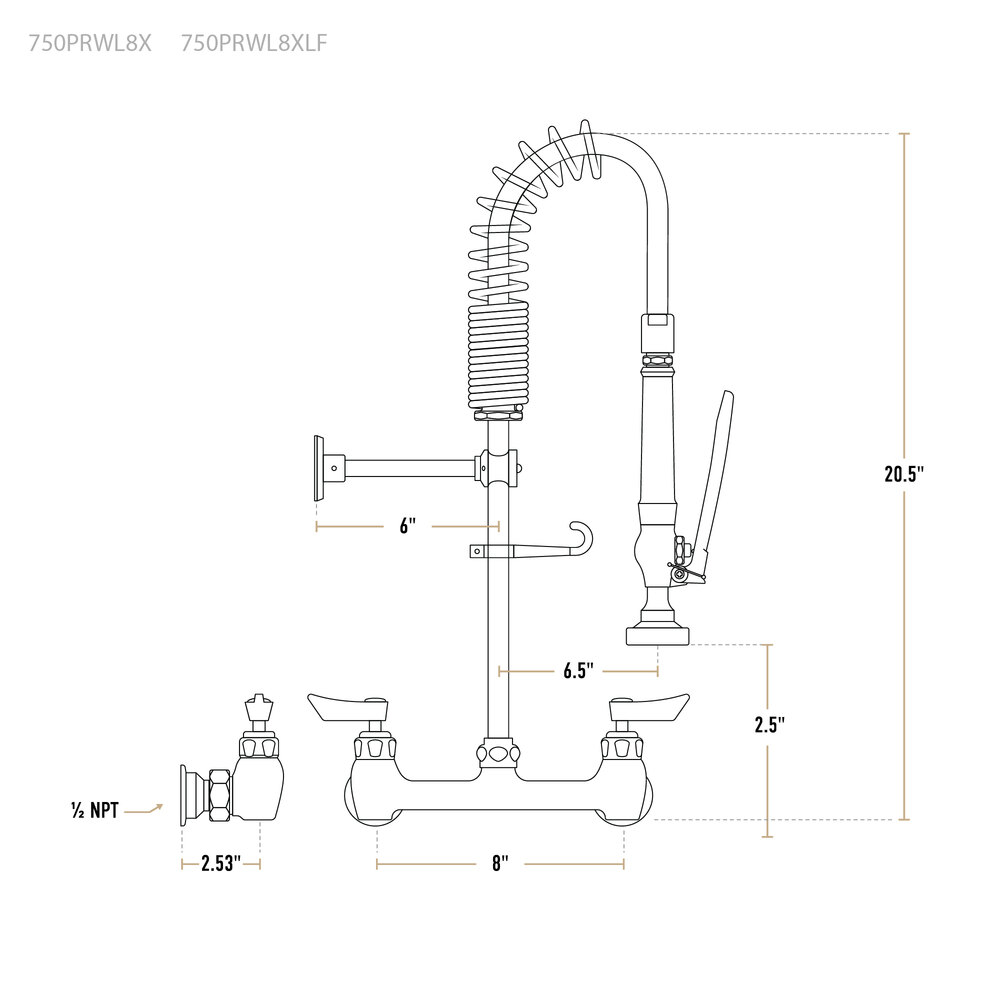

Overall Dimensions:

Hose Length:: 23 Inches
