Fuel Type: Natural Gas

Installation Services

Check if installation is currently available for your area.

Usually Ships in 4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Heavy-duty cast iron char-radiants; stainless steel sides, front, burner box, base, and stub back
  • Slanted cast iron grates
  • 6 burners with 3 pilots and control knobs
  • 32,000 BTU oven with porcelain interior for easy cleaning
  • Front gas manifold with a capped, rear gas connection
  • Natural gas; 131,000 BTU
UPC Code:400012119811

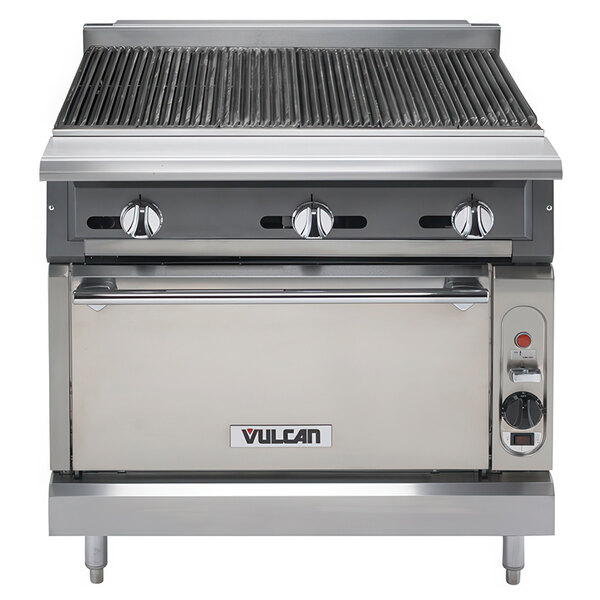

Vulcan VCBB36C Specs

Quantity
1/Each
Shipping Weight
684 lb.
Width
36 Inches
Depth
36 3/4 Inches
Height
40 1/2 Inches
Cooking Surface Width
32 3/8 Inches
Oven Interior Width
27 Inches
Cooking Surface Depth
20 1/2 Inches
Oven Interior Depth
27 Inches
Cooking Surface Height
36 Inches
Oven Interior Height
13 Inches
Base Style
Convection Oven
Burner BTU
16,500 BTU
Control Type
Manual
Features
Made in America  NSF Listed
Gas Connection Size
3/4 Inches
Heating Source
Radiant
Installation Type
Freestanding
Number of Burners
6 Burners
Number of Controls
3 Controls
Oven BTU
32,000 BTU
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Temperature Range
175 - 550 Degrees F
Total BTU
131,000 BTU
Type
Charbroilers
Usage
Medium Duty

Vulcan VCBB36C Details

Make great use of the space in your busy kitchen with a single unit that allows you to simultaneously grill burgers, steaks, and hot dogs while also fulfilling your baking and warming needs with this Vulcan VCBB36C-NAT V series floor model charbroiler with a convection oven! 6 burners provide the charbroiler with 99,000 BTU of intense heating power to make quick work of everything from fish to vegetables. The slanted cast iron grates then use that heat to produce the tantalizing grill marks that guests crave. Because each pair of burners has an individual control while supercharger burner dividers halt heat transfer between radiants, you can easily adjust the temperature for different sections of the charbroiler and simultaneously cook different types of food with effective multi-zone cooking!

The oven features 32,000 BTU of heating power and a thermostat that allows you to adjust the temperature from 175-550 degrees Fahrenheit, while the convection fan circulates air throughout the cavity for even heating and faster cooking. It comes with one rack and accommodates three rack positions for optimum flexibility and has a porcelain bottom, sides, and door to make cleanup a snap! Built for reliable, long-lasting performance in busy commercial kitchens, this heavy-duty charbroiler boasts a stainless steel front, burner box, stub back, and sides. The front gas manifold and a capped, rear gas connection provide a hassle-free, convenient gas connection that allows units to be placed side by side. A natural gas connection and 115V electrical connection are required for operation.

Overall Dimensions:
Width: 36"
Depth: 36 3/4"
Height: 40 1/2"
Cooking Area: 32 3/8" x 20 1/2"

Oven Interior Dimensions:
Width: 27"
Depth: 27"
Height: 13"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • 1 1/4" Gas Connection

    1 1/4" Gas Connection

    This unit comes with a 1 1/4" gas connection to be installed by a professional.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Vulcan VCBB36C

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
