Fuel Type: Liquid Propane

Installation Services

Check if installation is currently available for your area.

Usually Ships in 4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Durable, stainless steel construction
  • Features 4 open top burners
  • Individual pilots and controls for each burner
  • Convection oven base ideal for additional baking
  • Includes 6" adjustable stainless steel legs
  • Front gas manifold and a capped, rear gas connection
  • Requires a liquid propane connection
  • 164,000 BTU
UPC Code:400012121708

Vulcan V4B36C Specs

Quantity
1/Each
Shipping Weight
715 lb.
Width
36 Inches
Depth
41 7/8 Inches
Height
40 1/2 Inches
Nominal Width
36 Inches
Oven Interior Width
27 Inches
Oven Interior Depth
27 Inches
Cooking Surface Height
36 Inches
Oven Interior Height
13 Inches
Burner BTU
33,000 BTU
Features
Made in America  NSF Listed
Gas Connection Size
1 1/4 Inches
Installation Type
Freestanding
Number of Burners
4 Burners
Number of Ovens
1 Oven
Oven BTU
32,000 BTU
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Range Base Style
Convection Oven
Temperature Range
175 - 550 Degrees F
Top Configuration
Burners
Total BTU
164,000 BTU

Vulcan V4B36C Details

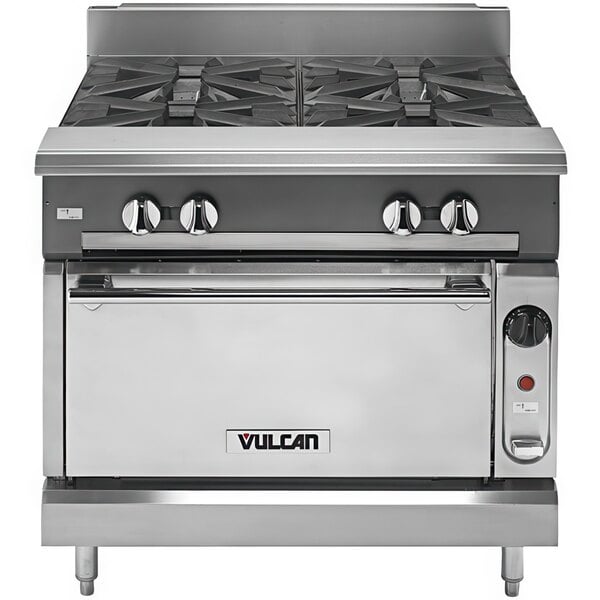

A great addition to your kitchen, this Vulcan V4B36C-L V series liquid propane range with 4 open top burners and an oven base provides efficient cooking and baking possibilities! Each heavy-duty, cast iron burner boasts a powerful 33,000 BTU. The front grates measure 11" x 17" and the rear grates measure 14" x 17" to accommodate both larger and smaller pots and pans. With individual pilots and controls for each burner, you can set this gas range to your exact specifications. The open top burners are ideal for a variety of cooking styles and techniques including boiling or frying for a multi-purpose addition to your kitchen.

Equipped with a 32,000 BTU convection oven base, this unit provides additional baking opportunities in your kitchen. Boasting a porcelain cavity, hot air circulates around food in this oven for uniform, even results. Two oven racks are included and can be moved up and down on 3 rack positions for added versatility. Plus, you can adjust the oven temperature from 175 to 550 degrees Fahrenheit to best fit your needs. The oven sits on 6" adjustable stainless steel legs to create the perfect working height while making it easy to clean underneath for a safe, sanitary kitchen!

Designed with flexibility in mind, this range easily banks with other similar units so you can create the perfect layout in your kitchen. The front gas manifold and a capped, rear gas connection provide a hassle-free connection that allows units to be placed side by side. A liquid propane gas connection and a 115V electrical connection are required for operation.

Overall Dimensions:
Width: 36"
Depth (including convection oven motor): 41 7/8"
Height: 40 1/2"

Interior Dimensions:
Width: 27"
Depth: 27"
Height: 13"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 1 1/4" Gas Connection

    1 1/4" Gas Connection

    This unit comes with a 1 1/4" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Vulcan V4B36C

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
