Other Available Fuel Types:

  • Durable stainless steel front, sides, back riser, and lift-off high shelf
  • 28,000 BTU open top burners with lift-off heads for easy cleaning
  • Flash tube pilot system with one pilot for every 2 burners
  • 12" x 12" cast iron top grates with aeration bowls to direct heat toward pans
  • (2) 30,000 BTU standard ovens with 250 to 500 degree Fahrenheit range and 4 position rack
  • 6" stainless steel adjustable legs
  • 30,000 BTU, 24" manual griddle with a 3/4" thick plate
  • Liquid propane; 258,000 BTU
Shipping:

You May Also Need

Vulcan SX60F-6B24GP Specs
Width 60 Inches
Depth 29 7/8 Inches
Height 58 Inches
Oven Interior Width 26 3/4 Inches
Oven Interior Depth 26 Inches
Oven Interior Height 13 3/4 Inches
Work Surface Height 35 3/4 Inches
Installation Type Freestanding
Made in America Yes
Number of Burners 6
Number of Ovens 2
Number of Racks 1
Plate Thickness 3/4 Inches
Power Type Liquid Propane
Range Base Style Standard Oven
Total BTU 258,000

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?
Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!

Vulcan SX60F-6B24GP Details

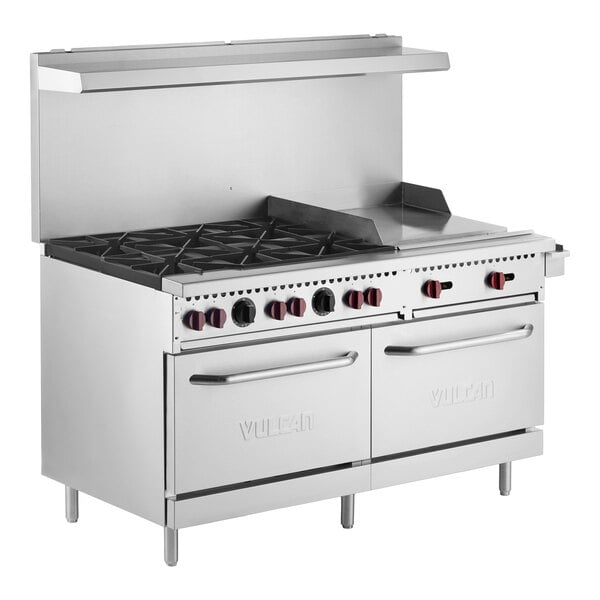

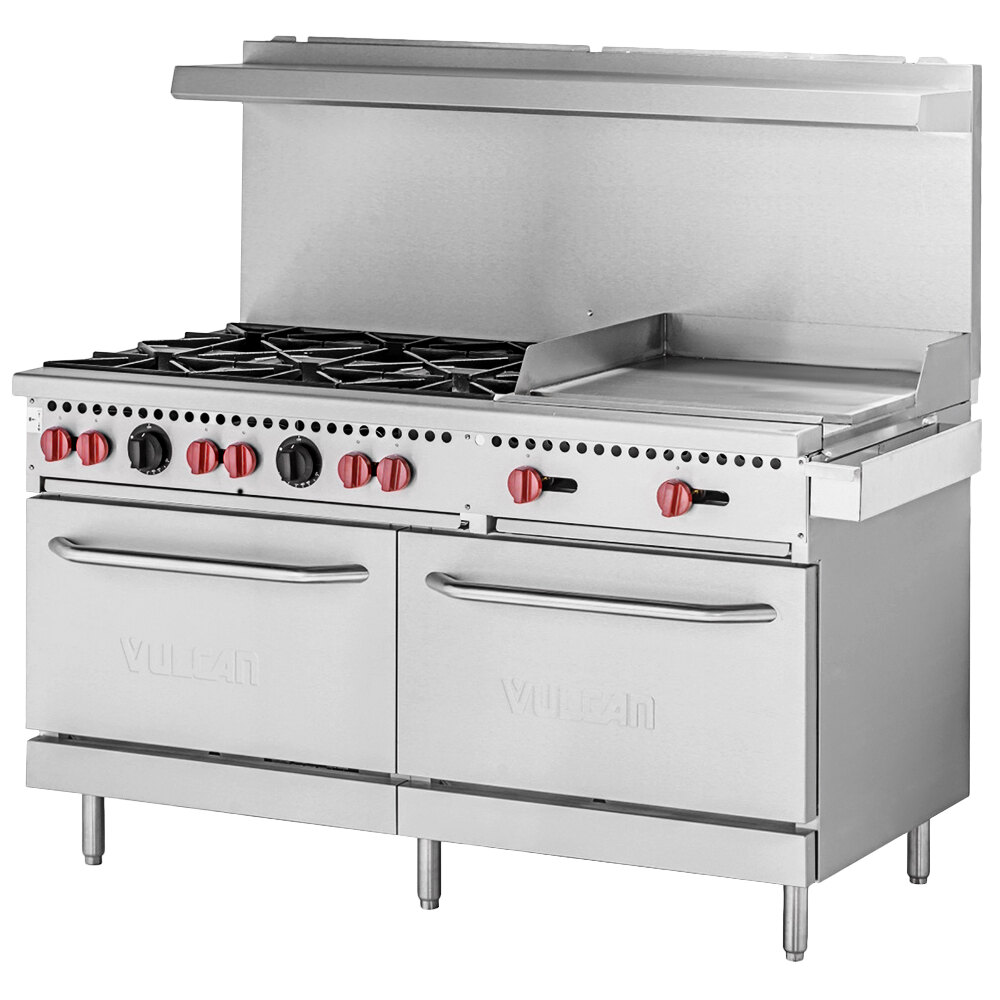

Get the great value you need for your kitchen with this Vulcan SX60F-6B24GP SX series economy 6 burner range with two standard ovens and a 24" griddle! This versatile piece of cooking equipment is perfect for those tight spaces and small kitchens where you need one piece of equipment to do multiple tasks. Since this unit features 6 open top burners, a griddle, and two standard ovens, you can fry, grill, and simmer on top while eliminating wasted space by using the ovens below for your baking and warming needs.

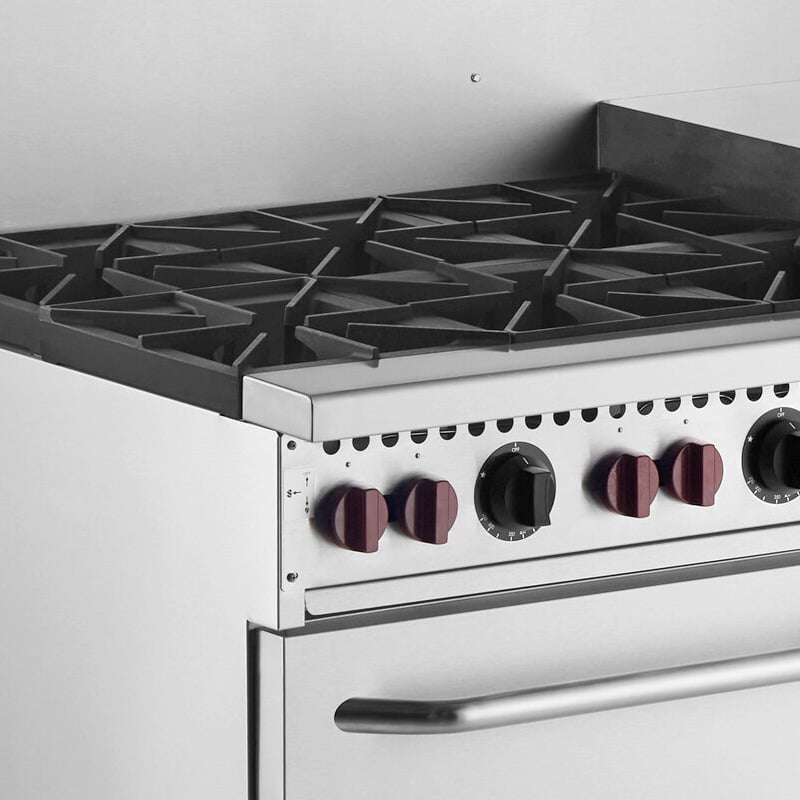

Each of the 6 open top burners deliver 28,000 BTU of heating power each, and thanks to the lift-off heads, cleaning and maintenance are simple. Plus, the 12" x 12" lift-off cast iron grates allow easy access to the burners while supporting your largest stock pots and frying pans. For quick ignition, the unit comes with a shrouded flash tube pilot system per two burners.

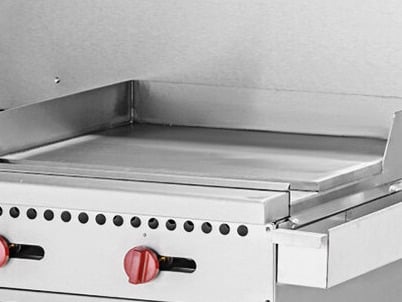

The 30,000 BTU griddle provides a convenient place for grilling burgers, searing pancakes, or frying omelets! With its 3/4" thick plate, this griddle is equipped for a variety of tasks and lower volume production.

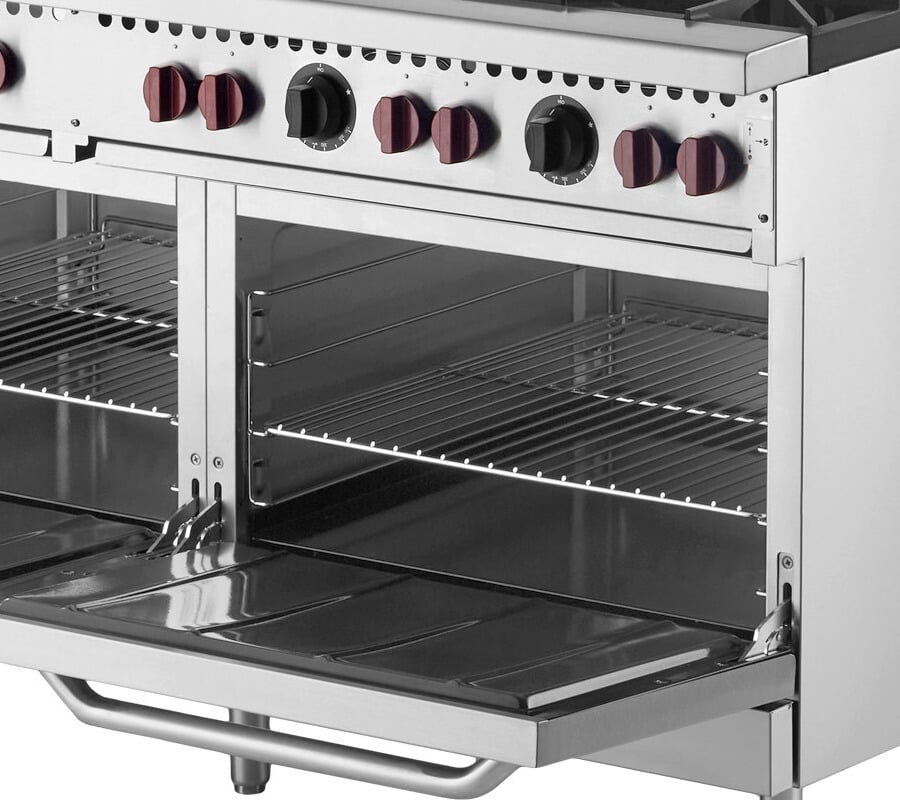

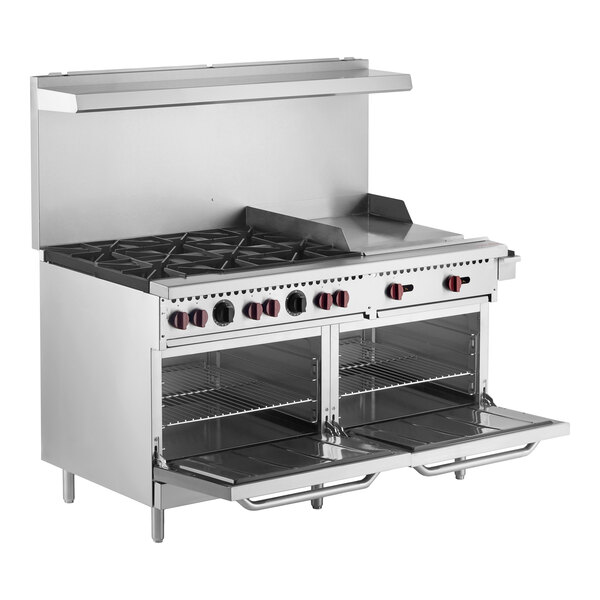

For your baking and warming needs, this range has two standard ovens. The ovens each have a temperature range of 250-500 degrees Fahrenheit and a 30,000 BTU burner for efficiency. One rack comes included with each oven, and with four rack positions you can customize the cavities to best suit your requirements. With separate controls, the ovens may be used alone or in conjunction with the range top. The oven bottoms and door liners are porcelainized for easy clean up.

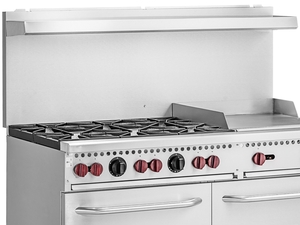

A stainless steel front, sides, backriser, and lift-off high shelf ensure ease of cleaning and long-lasting use in your kitchen. 6" stainless steel adjustable legs come standard. A liquid propane connection is required for operation.

Overall Dimensions:
Left to Right: 60"
Front to Back: 29 7/8"
Working Height: 35 3/4"
Height: 58"

Oven Dimensions:
Left to Right: 26 3/4"
Front to Back: 26"
Height: 13 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents: Prop 65 Warning

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 3/4

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection.

Resources and Downloads for
Vulcan SX60F-6B24GP

Spec Sheet Specsheet Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
