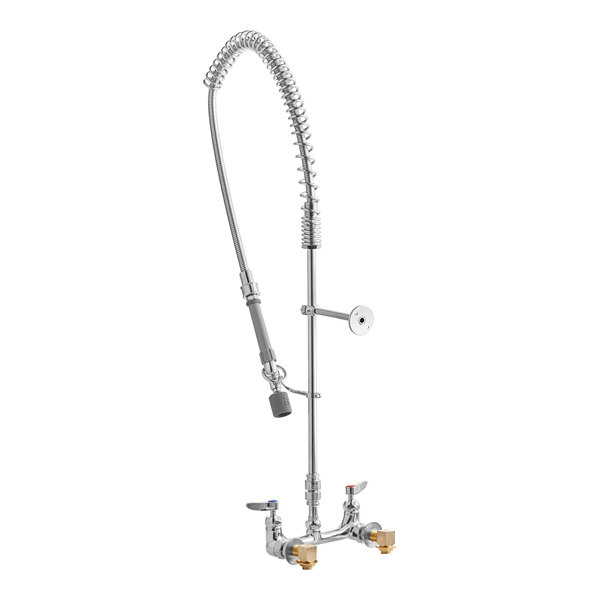

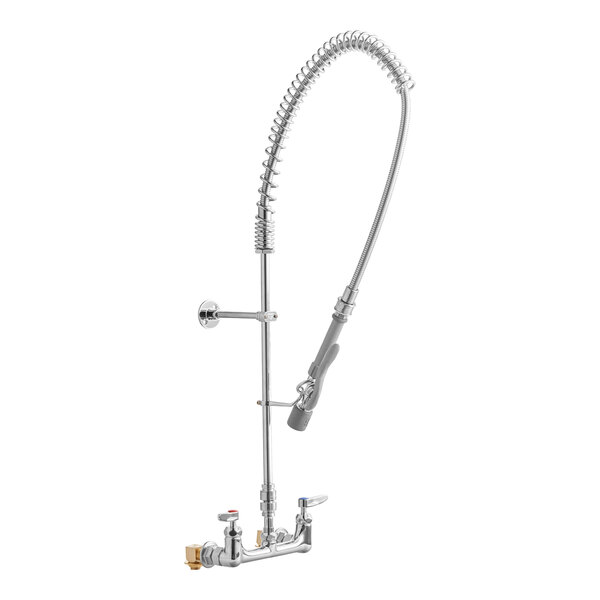

T&S B-0133-CR-VBJSK EasyInstall Wall Mount Mixing Faucet Base with 18" Riser and Pre-Rinse Unit with 1.07 GPM Spray Valve and Vacuum Breaker
Item number 510b133crvbjskMFR number B-0133-CR-VBJSK
This Product is no longer available
Browse our full selection
$236.99/Each
$252.49/Each
$254.99/Each
$256.49/Each
$267.02/Each
$550.82/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- 44" flexible hose is complete with a strong 1.07 GPM spray valve
- 18" rigid riser offers exceptional clearance over dishwashing sinks
- Built with a polished, chrome-plated brass body
- Features quarter-turn Cerama cartridges with check valves
- Convenient wall mount configuration
UPC Code:400016246162
- Quantity
- 1/Each
- Shipping Weight
- 12.5 lb.
- Hose Length
- 44 Inches
- Faucet Width
- 12 5/8 Inches
- Faucet Height
- 36 7/8 Inches
- Add-On Faucet
- None
- Cartridge Type
- Ceramic
- Faucet Centers
- 7 3/4 - 8 1/4 Inches
- Features
- Made in America Vacuum Breaker
- Finish
- Chrome
- Handle Type
- Lever
- Material
- Brass
- Mounting Style
- Wall Mounted
- Mounting Type
- Workboard
- Pre Rinse Unit Type
- Hose and Spring
- Spray Valve Flow Rate
- 1.07 GPM
- Water Inlet Size
- 1/2 Inches
T&S Brass and Bronze Works B-0133-CR-VBJSK Details

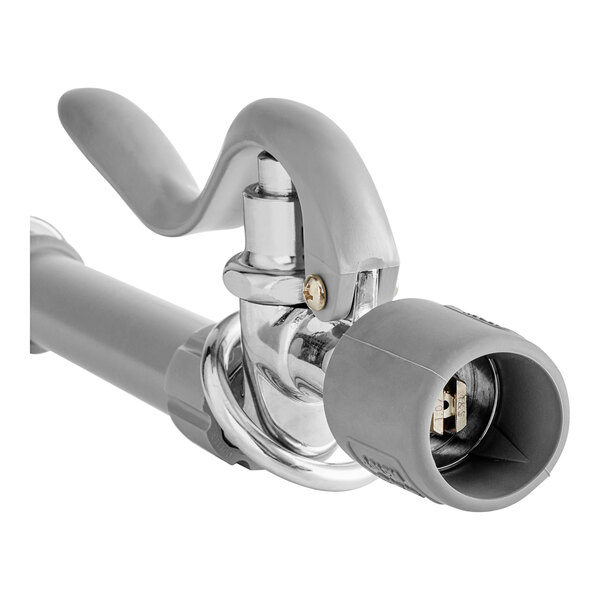

This T&S B-0133-CR-VBJSK EasyInstall wall mount mixing faucet base with 18" riser and pre-rinse unit with 1.07 GPM spray valve and vacuum breaker offers exceptional cleaning power! The pre-rinse unit features a 44" flexible stainless steel hose for superior durability in any setting, while the 1.07 GPM spray valve is designed to deliver maximum spray power and minimal utility costs. A heat-resistant handle protects the user's hands while the spring holds the hose in place and provide additional support without limiting mobility. It attaches to the base with an 18" riser and a 6" adjustable wall bracket and comes standard with a chrome vacuum breaker to prevent backflow during continuous pressure use.
With adjustable centers from 7 3/4" to 8 1/4", the chrome-plated brass 8" mixing faucet base features an EasyInstall configuration for simplified setup. It connects using 1/2" NPT female eccentric inlets with 2" flanges and the 1/2" NPT male elbow installation kit. The lever handles are built with color-coded indexes to allow for quick water temperature identification. Additionally, quarter-turn Cerama cartridges with check valves prevent the crossflow of water to keep your unit running properly.
Overall Dimensions:
Faucet Width: 12 5/8"
Faucet Height: 36 7/8"
Made in America
This item was made in the United States of America.
NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
