Product Overview
- Single flush design, 0.5 GPF
- Semi-red brass valve body with a polished brass finish
- Prevents external volume adjustment to ensure water conservation
- Top spud fixture connection for urinals; 3/4" coupling, 3/4" supply pipe
- 3-second flush delay and true mechanical override button
- Quantity
- 1/Each
- Shipping Weight
- 8.54 lb.
- Length
- 11 1/2 Inches
- Color
- Gold
- Features
- ADA Compliant Made in America
- Finish
- Brass
- Flow Rate
- 0.5 GPF
- Gallons per Flush
- 0.5 Gallon
- Style
- Automatic
- Type
- Flush Valves
- Water Inlet Size
- 3/4 Inches

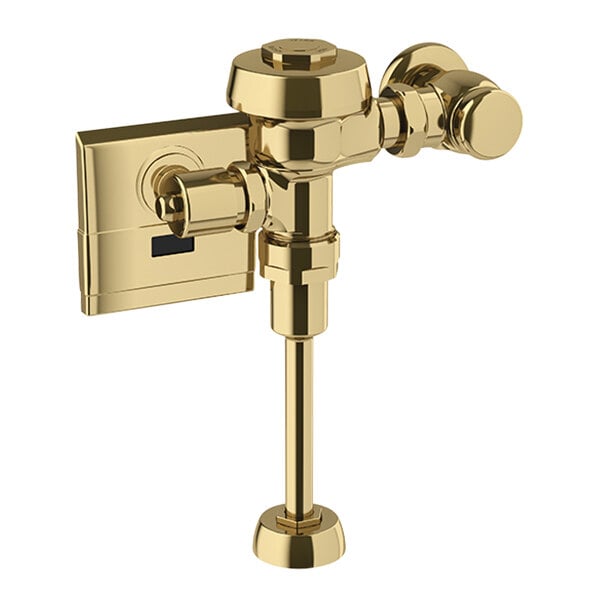

Sloan 3452656 Details
This Sloan 3452656 Royal hardwired flushometer is the smart choice for urinals in your commercial restroom. Boasting a versatile polished brass finish that complements nearly any design aesthetic, this flushometer lends a subtle, modern accent to your toilet fixtures. It also provides the quality and usability you expect and depend on, with a valve body made from semi-red brass for durability, and key components that incorporate PERMEX rubber compound for Chloramine resistance. It also features a dual filtered fixed bypass to prevent clogging.
This flushometer is a great option for improving health and sanitation measures because it removes a common point where germs can transfer from one person to another, the toilet handle. A true mechanical override button is included if manual use is required and, for added convenience, this unit also has a 3-second flush delay. It is a single flush unit and uses 0.5 GPF.
This flushometer is hardwired for durability. It is designed to not allow external volume adjustment, which protects against tampering and helps conserve water for your business. Additional features include a 3/4" IPS angle stop with vandal resistant stop cap and a top spud fixture connection with a 3/4" spud coupling. It requires a 3/4" supply pipe and an 11 1/2" rough-in.
Overall Dimensions:
Rough In: 11 1/2"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
Made in America
This item was made in the United States of America.
UL Certified
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for safe use. Refer to the Enhanced UL Mark in this product's documentation for more details.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
