Other Available Styles:

  • Includes hands-free 11 1/8" gooseneck sensor faucet
  • 20-gauge type 304 stainless steel construction
  • 9" x 9" x 5" bowl with no-drip countertop edge
  • Includes 1 1/2" IPS drain basket
  • 8" high backsplash, (2) 18" stainless steel supply lines
Waterloo Automatic Faucet Installation

Waterloo Automatic Faucet Installation

An automatic faucet from Waterloo provides an efficient and sanitary way for employees to wash their hands. To ensure that your faucet is set up properly, follow this step-by-step installation guide. Place the faucet on the sink, lining it up with the mounting holes. Then tighten the hardware underneath to ensure that the faucet is secure. Connect your flex water lines to the shut off valves, and attach the control module to the wall. Connect the mixing valve to the water lines. Then, attach the flex line to the faucet inlet and the control module outlet. Connect the sensor cable to the module, and screw in the connector cover. Now turn on the water to make sure there is no leaking. The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved. Finally, set a comfortable water temperature using the manual mixing valve. Your brand new Waterloo automatic faucet is now set up and ready to use!

Copy and paste the embed code above.

The Waterloo automatic faucet provides a simple, sanitary way for employees to wash their hands. To learn how to set up your faucet, follow this step-by-step installation guide.

Length 12 Inches
Width 15 3/4 Inches
Height 13 Inches
Bowl Depth 5 Inches
Basket Drain Size 1 1/2 Inches
Bowl Front to Back 9 Inches
Bowl Left to Right 9 Inches
Color Silver
Faucet Included Yes
Features Faucet Included

Hands Free
Gauge 20 Gauge
Installation Type Wall Mounted
Material Stainless Steel
NSF Listed Yes
Number of Drainboards None
Number of Faucets 1
Stainless Steel Type Type 304
Type Hand Sinks

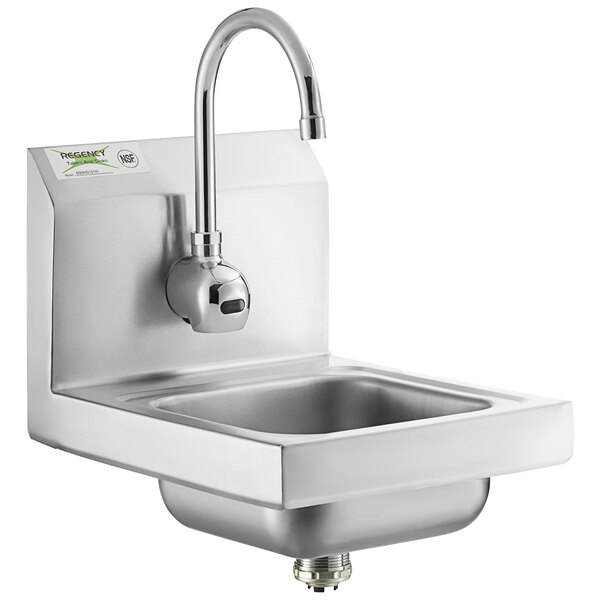

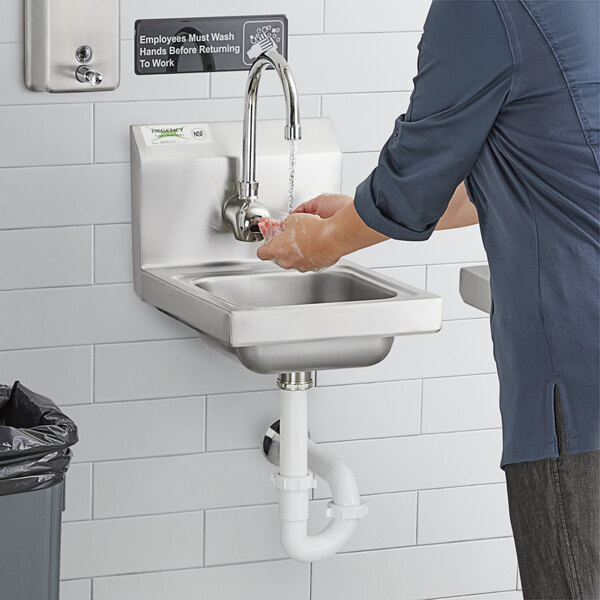

Clean hands keep all aspects of your business running smoothly, and with this Regency 12" x 16" hands-free hand sink, you'll be able to meet health code regulations and help promote a cleaner, healthier work environment for you and your customers. This easy-to-clean, easy-to-install compact sink easily fits in tight spaces and securely attaches to the wall, opening up floor space for other uses.

It features 20-gauge stainless steel construction on the top and bowl, which provides the durability needed to stand up to daily wear and tear, at a price point that won't break the bank. Type 304 stainless steel is used to give the sink additional corrosion resistance where you need it most. It features a 9" x 9" x 5" bowl with no-drip countertop edge that keeps splashes and spills contained and encourages water to flow down into the sink bowl, rather than sitting on the sink or dripping down the side and onto the floor.

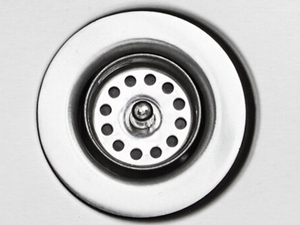

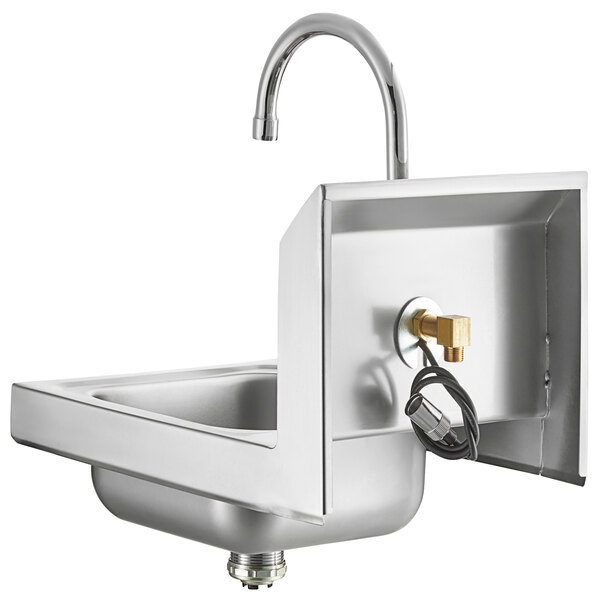

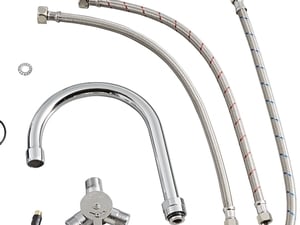

This sink also comes with a Waterloo hands-free sensor faucet with an 11 1/8" gooseneck spout that provides plenty of space for hand-washing. Because a sensor activates water flow instead of your hands, it reduces the opportunity for germs to spread. This also prevents the faucet from running when it's not needed, which helps to cut down on your water bill. The faucet installs through the pre-drilled hole in the sink's backsplash, while a mixing valve and (2) 18" stainless steel supply lines make it easy to attach it to your water lines and set the outlet temperature. A 1 1/2" IPS removable drain basket makes it easy to catch debris and remove it for easy clean-up. An 8" high backsplash guards your walls against water, dirt, and debris.

Overall Dimensions:
Left to Right: 12"
Front to Back: 15 3/4"
Height: 13"

Compartment Dimensions:
Left to Right: 9"
Front to Back: 9"
Height: 5"

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
