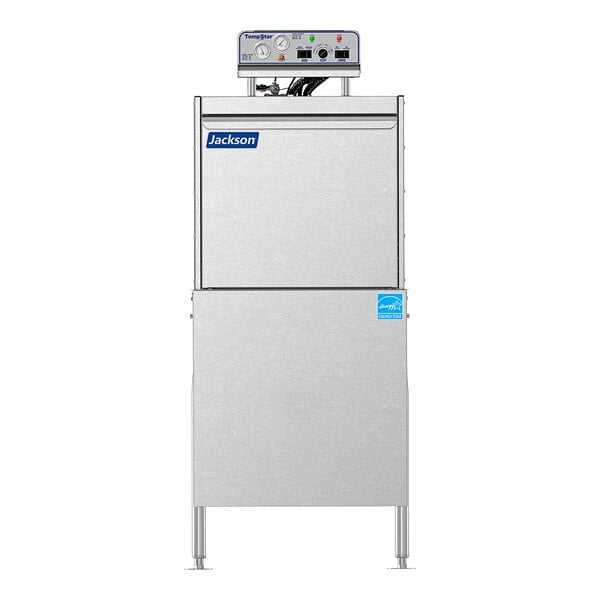

Scratch and Dent Jackson TSTAR-T-A-7-FL TempStar High Temperature Door-Type Dishwasher with Booster Heater - 208-230V
Item number 490tstar7flMFR number TSTAR-T-A-7-FL
Works With
Condition:Outlet
Quick Shipping
Usually ships in 1 business day
Product Overview
- Cleans up to 41 racks per hour using only 0.89 gallons of water per rack
- Includes a 70 degree rise built-in booster heater
- Sani-Sure technology ensures proper rinse temperature
- Features four selectable wash cycles and a multi-cycle timer
- Auto-fill and auto-start provide optimal convenience
Works With
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 274 lb.
- Width
- 25 1/4 Inches
- Depth
- 30 1/2 Inches
- Height
- 64 3/8 Inches
- Dishwasher Height
- Standard
- Amps
- 45.6 - 49.8 Amps
- Phase
- 3 Phase
- Voltage
- 208 - 230 Volts
- Application
- Dishwashers
- Dishwasher Style
- Front Load
- Features
- Auto Fill Booster Heater Included Built-In Drain Pump Energy Star Qualified Made in America Timer
- High or Low Temp
- High Temp
- Incoming Water Temperature
- 180 Degrees F
- Material
- Stainless Steel
- Number of Cycles
- 4 Cycles
- Plug Type
- Hardwire
- Racks (per Hour)
- 41
- Type
- Single Rack
- Wash Cycle Time
- 57 - 297 Seconds
- Water Inlet Size
- 3/4 Inches
- Water Usage
- 0.89 Gallons Per Rack

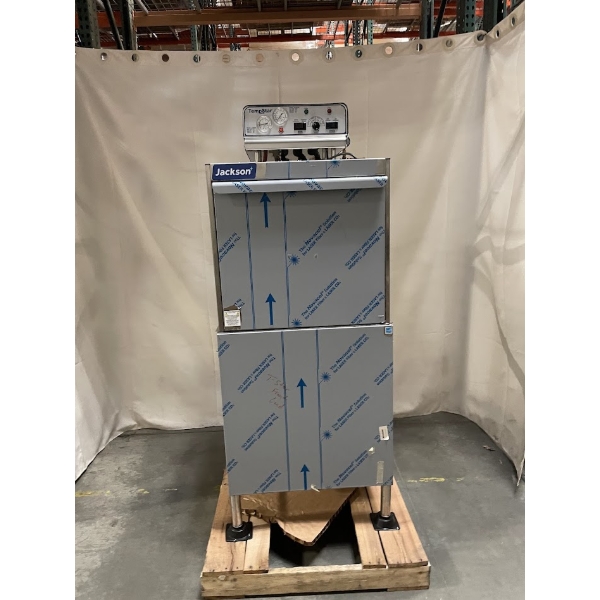

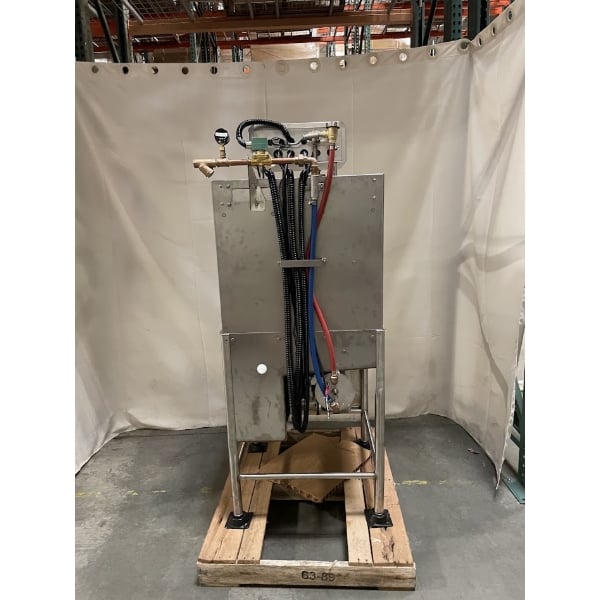

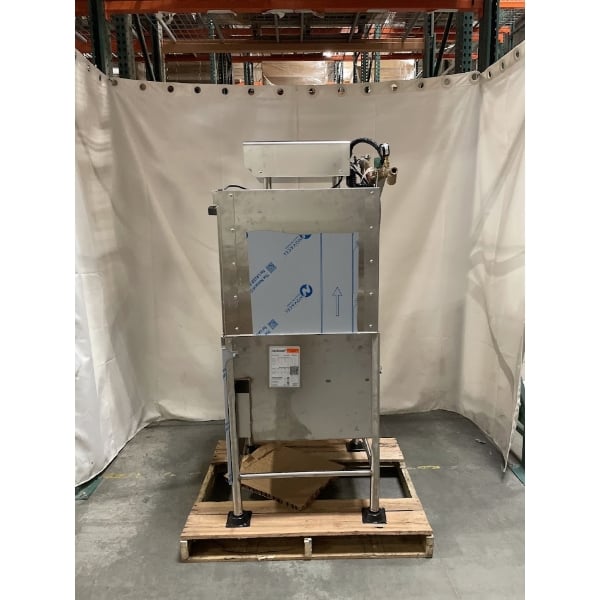

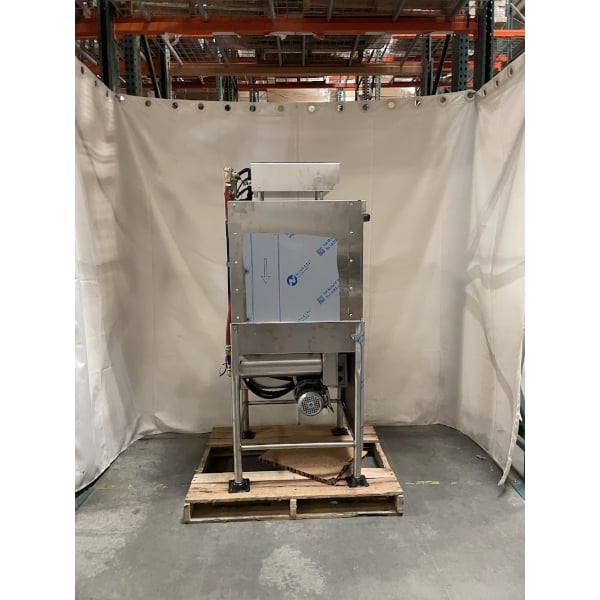

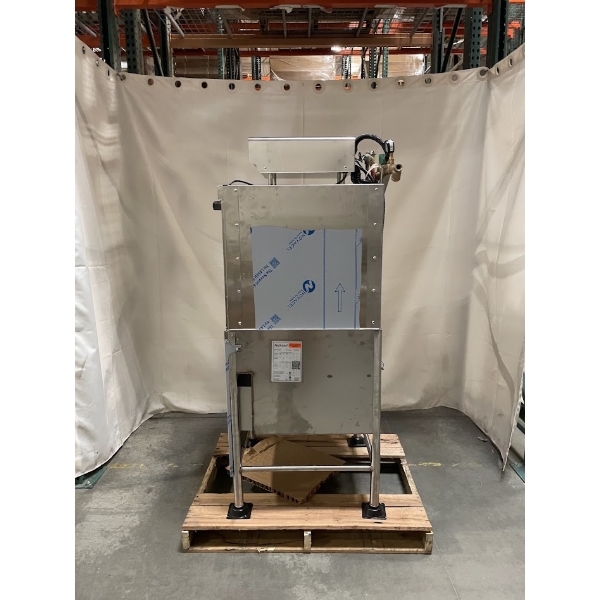

Scratch and Dent Jackson TSTAR-T-A-7-FL Details
- New; never used
- Out of original packaging
Quickly, easily, and efficiently clean full racks of used dishes with the Jackson TempStar high temperature door type dishwasher! Thanks to this durable unit, you can successfully clean up to 41 racks per hour using a mere 0.89 gallons of water per rack. Not only will this increase productivity in your dishroom, but you'll also conserve water, which lowers utility costs and saves money in the long run. This door type machine features a generous 17 1/4" vertical chamber clearance and accepts standard 20" x 20" racks or 18" trays. Keeping your dishes and glasses clean is essential to the life of your business, and this dishwasher meets those needs.
With the high temperature, electric tank heat, this unit helps raise the inlet water temperature to 180 degrees Fahrenheit. It also comes with a 70 degree rise booster heater that helps the unit achieve appropriate rinse temperatures, and because it's already built-in, you won't have to worry about any extra electrical requirements. Plus, the exclusive Sani-Sure feature also aids in assuring proper temperatures for a maximum clean. Made with durable stainless steel and an internal condensing system that minimizes water vapor, this machine is built to withstand heavy-duty use in a humid, commercial dishroom. Specially designed stainless steel nozzles prevent clogging to provide superb cleaning action.
This dishwasher unit is easy to operate thanks to its top-mounted controls. It also features an automatic tank fill and automatic start function, a hi-limit thermostat and low water protection, a built-in pressure regulator and door interlock, and a delime cycle switch to make quick work of removing hard water deposits. Your dishes will be left sparkling clean every time! Plus, the stainless steel pump is conveniently self-draining, and this dishwasher also features four selectable wash cycles and a multi-cycle timer. For added benefit, this warewashing unit is field convertible from straight through to corner and vice versa (kit required). Shipped fully assembled, this unit requires a 208-230V electrical connection for operation.
Overall Dimensions:
Width: 26 3/8"
Depth: 28"
Height: 64 3/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
