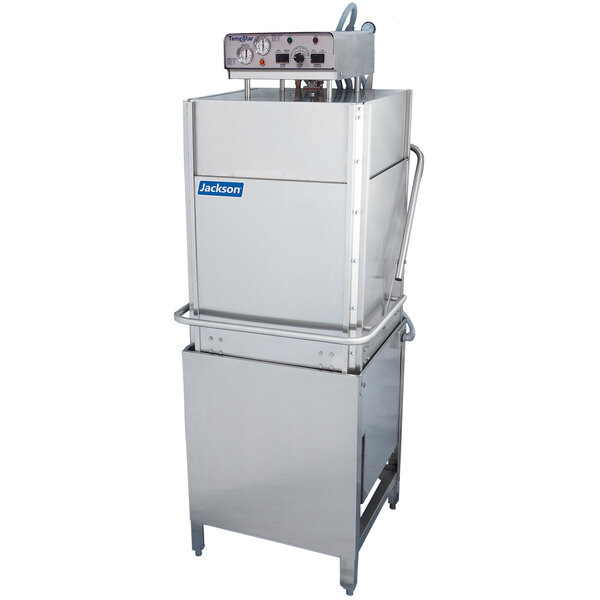

Scratch and Dent Jackson TempStar HH-E Door Type Dishwasher High Hood with Electric Booster Heater - 208/230V, 1 Phase
Item number 490temstrhhvMFR number TEMPSTAR-HH BST 208/2301
Customers Also Viewed
Condition:Outlet
Quick Shipping
Usually ships in 1 business day
Product Overview
- Cleans up to 55 racks per hour using .78 gallons of water per rack

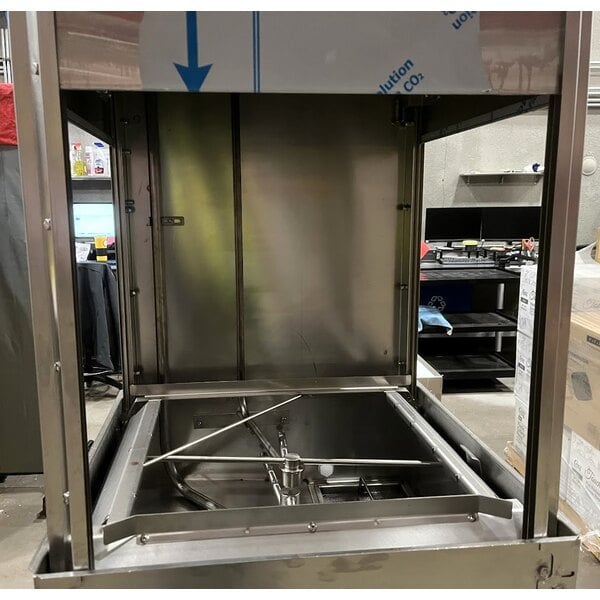

- 20 3/4" x 27" door opening accommodates sheet pans and 60 qt. mixing bowls
- Built in 70 degree rise electric booster heater
- Sani-Sure feature ensures proper rinse temperature
- 4 selectable wash cycles
- 208/230V, 1 phase
Works With
View All Items
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. To ensure that each product in WebstaurantStore Outlet will work correctly upon arrival, it is tested by an experienced technician prior to shipping. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 393 lb.
- Width
- 28 5/8 Inches
- Depth
- 34 3/8 Inches
- Height
- 76 3/8 Inches
- Dishwasher Height
- Tall
- Drain Height
- 11 3/4 Inches
- Amps
- 81.4 - 88.9 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208/230 Volts
- Application
- Dishwashers
- Booster Tank Capacity
- 3 gal.
- Dishwasher Style
- Straight / Corner
- Features
- Booster Heater Included Energy Star Qualified Made in America NSF Listed
- High or Low Temp
- High Temp
- Horsepower
- 2 hp
- Interior Clearance
- 27 Inches
- Number of Cycles
- 4 Cycles
- Plug Type
- Hardwire
- Racks Per Hour
- 55
- Type
- Single Rack
- Wash Cycle Time
- 60 Seconds
- Wash Tank Capacity
- 8 gal.
- Water Inlet Size
- 3/4 Inches
- Water Temperature
- 155 - 180 Degrees F
- Water Usage
- 0.78 Gallons Per Rack
Scratch and Dent Jackson TEMPSTAR-HH BST 208/2301 Details
- New; never used
- Out of original packaging
Quickly, easily, and efficiently clean full racks of used dishes with the Jackson TempStar HH-E high temperature door type dish machine! Keeping your dishes and glasses clean is essential to the life of your business, and thanks to this durable unit, you can successfully clean up to 55 racks per hour using a mere .78 gallons of water per rack. Not only will this increase productivity in your dishroom, but you'll also conserve water, which lowers utility costs and saves money in the long run. This door type machine features a generous 20 3/4" x 27" opening that accepts full size sheet pans and 60 qt. mixing bowls, so you can wash taller, bulkier items with ease. Thanks to the auto-start feature, the washing cycle begins as soon as you close the door.
This high temperature warewashing machine comes with a 70 degree rise booster heater that helps the unit achieve appropriate rinse temperatures, and because it's already built-in, you won't have to worry about any extra electrical requirements. Plus, an exclusive Sani-Sure feature also aids in assuring proper temperatures.
Made with rugged stainless steel, this machine is built to withstand heavy-duty use in a humid, commercial dishroom. Specially designed stainless steel nozzles prevent clogging to provide superb cleaning action. The included delimer switch makes quick work of removing hard water deposits, so your dishes will be left sparkling clean every time.
Other great features of this dish machine include the multi-cycle timer, hi-limit thermostat and low water protection, and a self-draining pump. For added benefit, this warewashing unit is field convertible from straight through to corner and vice versa. It requires a 208/230V, 1 phase electrical connection.
Overall Dimensions:
Width: 28 5/8"
Depth: 34 3/8"
Height: 76 3/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Made in America
This item was made in the United States of America.
