Product Overview
- Self-contained Capsule Pak is top-mounted to maximize interior storage space
- Panels are constructed of durable 26-gauge, corrosion-resistant, embossed, galvanized steel
- Aluminum floor seals the structure and adds a durable surface for storage
- Features a self-closing door with cam lift hinges and deadbolt locking handle
- Designed for outdoor use and includes a weather protection kit
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$189.99/Each
$8.92/Each
$199.99/Each
$902.68/Each
$301.48/Each
$89.99/Each
$609.00/Each
$1,249.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 1853 lb.
- Width
- 96 Inches
- Depth
- 120 Inches
- Height
- 79 Inches
- Nominal Width
- 8 Feet
- Nominal Depth
- 10 Feet
- Height (with refrigeration unit)
- 100 Inches
- Nominal Height
- 6 3/5 Feet
- Refrigeration Unit Height
- 21 Inches
- Amps
- 11.33 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 208 - 230 Volts
- BTU Per Hour
- 3,210 BTU
- Capacity
- 404 cu. ft.
- Compressor Location
- Top Mounted
- Door Style
- Swing
- Door Type
- Solid
- Features
- LED Lighting Made in America NSF Listed
- Floor
- With Floor
- Horsepower
- 1 HP
- Plug Type
- NEMA 6-15P
- Refrigerant Type
- R-449A
- Refrigeration Type
- Self-Contained
- Usage
- Outdoor
Customer questions about this product
How can I determine the size of this product's interior?
My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?
If you have any questions, please contact Special Orders prior to making your purchase.
Where will the door be located on my walk-in unit?
If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.
Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.
If you do not choose another floor plan, you will be shipped the standard configuration.
Will I need any additional components for my outdoor walk-in?
When I order this product, can I request liftgate delivery?
Norlake KODF810-CX Details

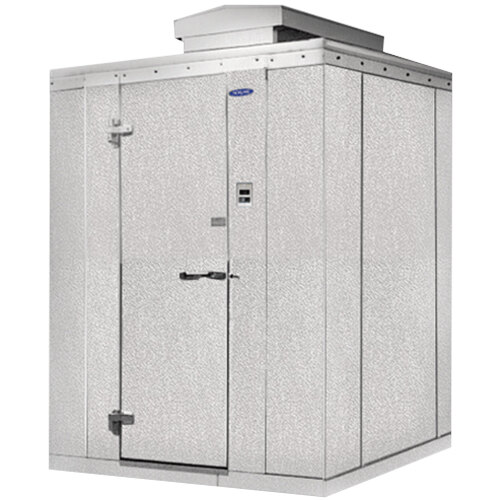

The Norlake Kold Locker 8' x 10' x 6' 7" outdoor walk-in freezer offers versatility and superior storage space all in one rugged, easy-to-assemble unit!
An innovative, self-contained, top-mounted Capsule Pak cooling unit provides 100% usable interior storage space by utilizing a flush coil design, which keeps all cooling components outside the walk-in freezer. Ambient controls and a refrigeration hood ensure the Capsule Pak functions properly at temperatures down to - 20 degrees Fahrenheit.
The 1 hp, 208-230V cooling unit has a temperature range of - 10 to - 8 degrees Fahrenheit. The self-contained Capsule Pak installs easily and uses R449A refrigerant.
The panels on the Norlake Kold Locker outdoor walk-in freezer are made of coated 26-gauge, corrosion-resistant, embossed galvanized steel. The panels are insulated with 4" thick CFC-free HFC polyurethane to maintain consistent temperatures. An aluminum floor seals the structure and provides a durable surface for storage.
A weather protection kit is included to protect the Kold Locker from the elements. It includes 35 mm-thick roof materials, flashing strips, and roof trim.
A self-closing door secures easily to the Norlake Kold Locker walk-in with cam lift hinges and has a 26" opening. A NL9800 deadbolt locking handle with independent padlock and an inside safety release protects your supplies and your employees. A convenient digital thermometer ensures safe temperatures are maintained, and a vapor-proof light provides excellent interior visibility.
Overall Dimensions:
Width: 96"
Depth: 120"
Height (without refrigeration unit): 79"
Height (with refrigeration unit): 100"
Capsule Pak Height: 21"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
6-15P
This unit comes with a NEMA 6-15P plug.
Made in America
This item was made in the United States of America.
