Product Overview
- Flush coil design keeps all cooling components outside
- Made with 26 gauge corrosion-resistant embossed galvanized steel
- 4" thick insulation maintains consistent temperatures
- Externally-mounted thermometer allows for easy temperature monitoring
- Designed for outdoor use
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$62.99/Each
$8.92/Each
$222.08/Each
$609.00/Each
$1,249.00/Each
$189.99/Each
$199.99/Each
$301.48/Each
- Quantity
- 1/Each
- Shipping Weight
- 1887 lb.
- Width
- 96 Inches
- Depth
- 96 Inches
- Height
- 103 Inches
- Door Width
- 26 Inches
- Nominal Width
- 8 Feet
- Refrigeration Unit Width
- 43 Inches
- Nominal Depth
- 8 Feet
- Refrigeration Unit Depth
- 48 1/4 Inches
- Height (with refrigeration unit)
- 118 Inches
- Nominal Height
- 8 3/5 Feet
- Refrigeration Unit Height
- 15 Inches
- Amps
- 6.38 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- BTU Per Hour
- 6,700 BTU
- Capacity
- 549 cu. ft.
- Compressor Location
- Top Mounted
- Door Style
- Swing
- Door Type
- Solid
- Features
- LED Lighting Made in America NSF Listed
- Floor
- With Floor
- Horsepower
- 3/4 HP
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Refrigeration Type
- Self-Contained
- Usage
- Outdoor
Customer questions about this product
How can I determine the size of this product's interior?
My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?
If you have any questions, please contact Special Orders prior to making your purchase.
Where will the door be located on my walk-in unit?
If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.
Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.
If you do not choose another floor plan, you will be shipped the standard configuration.
Will I need any additional components for my outdoor walk-in?
Can this item fit through a standard height 80" doorway ?
When I order this product, can I request liftgate delivery?

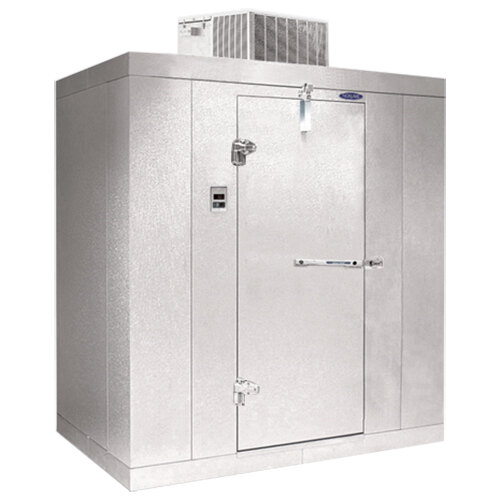

Norlake KODB8788-CX Details
The Norlake Kold Locker 8' x 8' x 8' 7" outdoor walk-in cooler offers versatility and superior food storage space all in one easy-to-assemble unit! A self-contained, 1 hp top-mounted Capsule Pak refrigeration unit provides maximum interior storage space by utilizing a flush coil design, which keeps all cooling components outside the walk-in cooler. The Capsule Pak installs easily and uses R290 refrigerant to maintain a temperature of 35 degrees Fahrenheit.
The heart of the Kold Locker design is in the panels, which are made of coated 26 gauge corrosion-resistant embossed galvanized steel for durability, and assemble very quickly thanks to an innovative gasket design that provides an air-tight seal without using messy silicone sealants. The panels are also insulated with 4" thick CFC-free HFC polyurethane to maintain consistent temperatures. An aluminum floor seals the walk-in and provides a durable surface for storage.
A self-closing, 26" wide door secures easily to the Norlake Kold Locker walk-in with cam lift hinges. To protect your foods, a deadbolt locking handle with independent padlock secures the door and an inside safety release prevents you from becoming accidentally stuck inside the walk-in. An externally mounted digital thermometer allows you to easily verify that the walk-in is maintaining the correct temperature, while a vapor proof light provides excellent interior visibility for added convenience! Since this walk-in is designed for outdoor use, it also features a white membrane roof and trim, and a hood to protect the refrigeration unit.
Walk-In Dimensions:
Width: 96"
Depth: 96"
Height (without refrigeration unit): 103"
Height (with refrigeration unit): 118"
Refrigeration Unit Dimensions:
Width: 43"
Depth: 48 1/4"
Height: 15"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
5-15P
This unit comes with a NEMA 5-15P plug.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
Made in America
This item was made in the United States of America.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
