Product Overview

  • Single gauge secondary draft regulator mounted on a metal panel for simple installation
  • Includes all necessary hoses and connectors
  • Regulates CO2 coming from the primary regulator, going to 4 kegs
  • Includes a flow control inlet nipple filter
  • Monitors pressure up to 60 PSI; pressure relief valve ensures safety by releasing at 51-53 PSI
  • Forged brass, die cast regulator construction
  • 3/8" outlet barbs with shut-off; extra outlet nipple included for pass through installation
UPC Code:83415-E-PP
Shipping:Usually Ships in 1-3 Business Days

Micro Matic 83415-E-PP Specs

Shipping Weight
17.57 lb.
Made in America
Regulator Panels and Panel Kits

Micro Matic 83415-E-PP Details

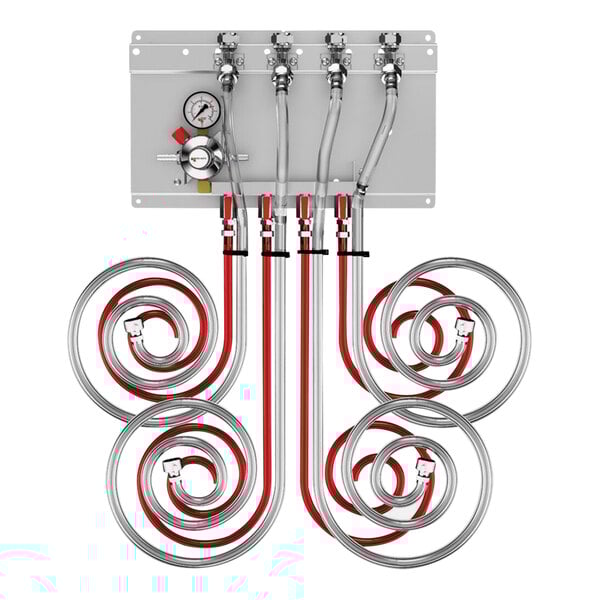

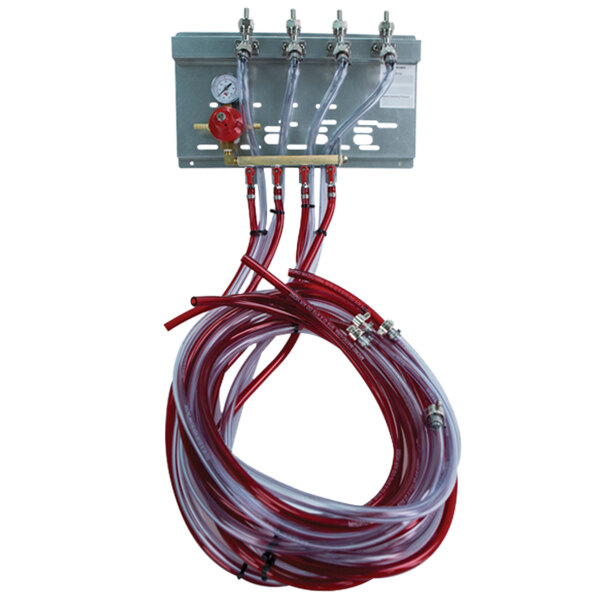

Get everything you need to successfully install a secondary CO2 regulator for your draft beer system with this Micro Matic 83415-EAM quadruple keg secondary CO2 regulator panel kit! Not only does this kit include core components like the panel and regulator, but it comes with all of the necessary hoses and connectors as well. A metal panel makes installation on a walk in cooler wall a breeze and features a pre-taped pipe plug and two hose barbs for convenience.

The regulator, meanwhile, allows you to safely and effectively control the flow of CO2 to 4 kegs in your draft beer system. If adjusting the pressure on the primary regulator that's attached to your CO2 tank is problematic, this secondary regulator connects to the primary unit via a gas hose so you can control the gas flow from right inside your walk in. It comes with a single gauge that has a 0-60 PSI range so you can quickly monitor the amount of CO2 flowing from your gas tank to each of your unique kegs. Regulating CO2 is key in providing guests with quality draft beer because if the pressure's too low, your beer may taste flat and if it's too high, the beer may pour with excessive foam. Models before 9/1/2021 include a PRV pull ring and models produced after will no longer have them. If you have any questions please reach out to a customer service rep.

The pressure on this forged brass regulator is easily adjusted by turning the set screw with a flathead screwdriver. It features (4) 3/8" outlets with a shut-off valve so you can quickly and easily stop gas flow and, for added safety and peace of mind, this model has an integrated pressure relief valve that stops the gas flow if pressure gets too high (at 51-53 PSI). An extra outlet nipple is included for your convenience, for simple pass through installation to additional panels.

Kit Includes:
- Panel
- single gauge CO2 regulator
- (4) 3/8" ID stainless steel tailpieces
- (4) 3/8" barbs
- (4) 8' x 3/8" vinyl jumper hoses with connections
- (4) 8' x 5/16" gas hoses
- (1) outlet beer nipple

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
