Product Overview

  • Provides 100% usable interior storage space with Capsule Pak refrigeration system
  • Self-contained Capsule Pak installs easily and uses R-290 refrigerant
  • Aluminum floor seals the structure and adds a durable surface for storage
  • Self-closing door has 26" opening and secures easily to the walk-in
  • Designed for outdoor use with included weather protection kit
UPC Code:400015959063

Master-Bilt QODB8788-C Specs

Quantity
1/Each
Shipping Weight
1715 lb.
Width
96 Inches
Depth
120 Inches
Height
103 Inches
Door Width
26 Inches
Nominal Width
8 Feet
Nominal Depth
8 Feet
Height (with refrigeration unit)
118 Inches
Nominal Height
9 Feet
Refrigeration Unit Height
15 Inches
Amps
6.38 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
BTU Per Hour
6,700 BTU
Compressor Location
Top Mounted
Door Style
Swing
Door Type
Solid
Features
Made in America  NSF Listed  Self-Closing Doors
Floor
With Floor
Horsepower
3/4 HP
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Refrigeration Type
Self-Contained
Temperature Range
35 - 38 Degrees F
Usage
Outdoor

Master-Bilt QODB8788-C Details

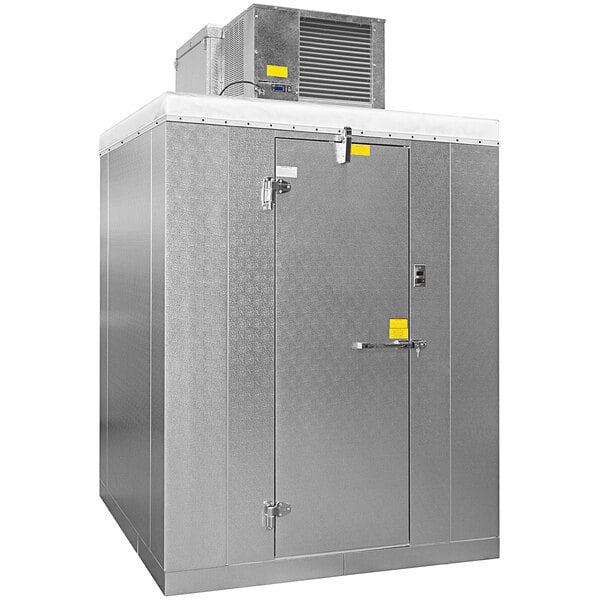

Bring versatility and superior storage with this easy-to-assemble Master-Bilt QODB87810-C quick ship 8' x 8' x 8' 7" outdoor walk-in cooler with top-mounted refrigeration. This walk-in cooler uses an innovative, self-contained, top-mounted Capsule Pak refrigeration system, providing 100% usable interior storage space and utilizing a flush coil design to keep all cooling components outside the unit. The Capsule Pak installs easily and uses R-290 refrigerant. Plus, the 115V cooling unit has a temperature range of 35 to 38 degrees Fahrenheit.

With panels made of coated 26 gauge corrosion-resistant and embossed galvanized steel, this Master-Bilt unit is durable for long-lasting use. The panels are also insulated with 4" thick EPA-compliant polyurethane to maintain consistent temperatures. An aluminum floor seals the structure and provides a durable surface for storage. To withstand outdoor locations, this unit comes with a weather protection kit, including 35 mm thick roof materials, flashing strips, and roof trim.

This unit has a secure, self-closing door with an NL2400 adjustable and spring-loaded door hinges and has a 26" opening. For increased safety and to protect your supplies, this unit comes with a deadbolt locking handle with an independent padlock to secure the door, and an inside safety release promotes increased safety for your staff. An externally-mounted digital thermometer allows you to easily verify that the walk-in is maintaining the correct temperature, while a vapor-proof light provides excellent interior visibility for added convenience!

Overall Dimensions:
Width: 96"
Depth: 120"
Height (without refrigeration unit): 103"
Height (with refrigeration unit): 118"
Capsule Pak Height: 15"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

How can I determine the size of this product's interior?

The interior of a Master-Bilt cooler can be determined by subtracting 8" from each exterior measurement. Each side panel is 4" thick, and each exterior measurement contains two panels. For Master-Bilt freezers, the panels will be 4"-5" thick, so subtracting 8"-10" from each exterior measurement will give you a good idea of interior size.

My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?

Oregon residents: The state of Oregon charges a tagging fee for inbound shipments of this item. You will be contacted regarding this fee after placing your order.

If you have any questions, please contact Special Orders prior to making your purchase.

Where will the door be located on my walk-in unit?

The "Walk-In Floor Plans" document on this page has a diagram with all of the possible floor plan options for Master-Bilt walk-in units. This shows the standard and alternate door configurations for each size option.

If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.

Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.

If you do not choose another floor plan, you will be shipped the standard configuration.

Will I need any additional components for my outdoor walk-in?

Yes, depending on the state in which you live, you may need additional accessories for your unit to be compliant with your local codes.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

When I order this product, can I request liftgate delivery?

This item is too large and heavy for a liftgate. It can be delivered with a truck-level loading dock or forklift. Contact our Customer Solutions team prior to placing your order if you would like to discuss other delivery options.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.
