$2,229.00/Each

Ships free with Plus

Earn up to $66.87 back (6,687 points)with a Webstaurant Rewards Visa® Credit Card

Other Available Voltages:

Usually Ships in 8-10 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • For use with Manitowoc iF0900C remote ice cube machines
  • To be installed indoors or outdoors, away from ice machine
  • Remote design lowers ambient temperature near your ice machine
  • Cool vapor defrost (CVD) technology is quieter than traditional hot gas evaporators
  • 208-230V, 3 Phase
UPC Code:400013615039

Manitowoc Ice CVDF0900-263 Specs

Quantity
1/Each
Shipping Weight
195 lb.
Width
34 Inches
Depth
24 1/8 Inches
Height
25 3/4 Inches
Amps
9.5 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 - 230 Volts
Condenser Type
Remote
Features
NSF Listed
Plug Type
Hardwire
Type
Remote Condensers

Customer questions about this product

How do I ensure my new Manitowoc product’s warranty is activated?

To ensure your warranty is activated with the manufacturer, you can register your product online at Manitowoc’s website under the services tab. Go to http://manitowocice.com/Service/Warranty#Warranty-Registration

How do I match up ice machines, bins, and dispensers?

To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in the Works With items on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the Works With items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!

Ask your own question!

Manitowoc Ice CVDF0900-263 Details

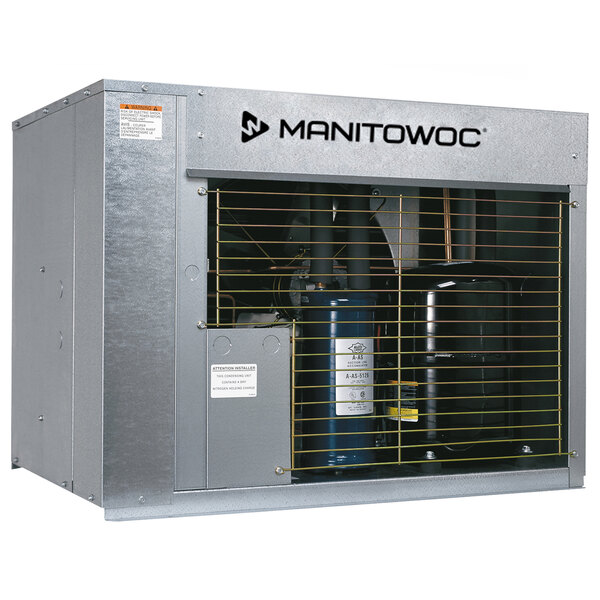

When used in conjunction with an iF0900C remote ice cube machine, this Manitowoc CVDF0900 remote ice machine condenser provides quieter operation than comparable remote condenser units! The secret is the unit's cool vapor defrost (CVD) technology, which is quieter and more efficient than the hot gas evaporator systems utilized by traditional remote condenser machines. Just connect your ice machine via a remote tubing line kit (sold separately), and this remote condenser will effectively dissipate heat at a convenient location, away from the ice machine.

In addition to a quieter operation, this remote condenser will help lower the ambient temperature around your ice machine, which drastically improves efficiency while providing a more comfortable environment for your staff. This unit requires a 208-230V, 3 phase electrical connection for operation.

- Maximum line length: 100'

- Maximum vertical rise: 35' above machine

- Maximum vertical drop: 15' below machine

Overall Dimensions:
Left to Right: 34"
Front to Back: 24 1/8"
Height: 25 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Resources and Downloads for
Manitowoc Ice CVDF0900-263

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. PLEASE NOTE: Parts carry a 90 day limited warranty.

1 Compatible Model
