Product Overview

  • Corrosion-resistant stainless steel exterior with aluminum interior
  • Features a self-closing and stay-open locking door
  • Includes 3 epoxy-coated shelves with 88 lb. capacity each
  • Digital temperature controller with automatic defrost function
  • R-290 refrigerant; 115V; 1/2 hp

Specs

Quantity
1/Each
Shipping Weight
260 lb.
Width
29 Inches
Depth
32 3/16 Inches
Height
82 1/2 Inches
Power Cord Length
98 Inches
Interior Width
24 3/8 Inches
Right Door Opening Width
24 5/16 Inches
Interior Depth
27 1/8 Inches
Interior Height
51 9/16 Inches
Amps
4.9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Wattage
456 Watts
Capacity
23.1 cu. ft.
Compressor Location
Bottom Mounted
Construction
Stainless Steel and Aluminum
Door Type
Solid
Hinge Location
Right
Horsepower
1/2 HP
Individual Shelf Capacity
88 lb.
Installation Type
Freestanding
Number of Doors
1 Door
Number of Shelves
3 Shelves
Plug Type
NEMA 5-15P
Refrigerant Capacity
3.5 oz.
Refrigerant Type
R-290
Sections
1 Section
Starting Amps
14.7 Amps
Starting Wattage
1,368 Watts
Temperature Range
-7 - 0 Degrees F
Type
Freezers

Details

Your establishment relies on refrigeration for proper food safety and with this Main Street Equipment BMR-23-F 29" solid door freezer, you receive performance you can depend on! A painted aluminum interior gives you increased durability, while a 430 stainless steel door and exterior sides give it a sleek appearance. For convenience, 3 epoxy-coated shelves with 88 lb. capacity each feature shelf clips for customization when desired.

Designed to maintain temperatures from -7 to 0 degrees Fahrenheit, this freezer boasts a bottom-mounted 1/2 hp compressor that uses R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. In addition, the bottom-mounted design makes it easy for employees to load and unload products due to the raised bottom shelf. For optimal temperature retention, the entire cabinet is foamed in place using polyurethane insulation. Other helpful features include the stay-open locking door mechanism, automatic defrosting, and a digital temperature control with a digital display. This item requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 29"
Depth: 32 3/16"
Height: 82 1/2"
Capacity: 23.1 cu. ft.

Interior Dimensions:

Width: 24 3/8"
Depth: 27 1/8"
Height: 51 9/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Can I use this reach-in refrigerator to cool hot food?

No, reach-in refrigerators are intended for keeping cold food chilled, not chilling hot food. If you are looking for a unit to quickly chill hot food, check out our Avantco Refrigeration blast chillers.

Does this item ship to Canada?

This product cannot be shipped to Canada.

How do I correctly install the shelves into this unit?

To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My unit was delivered, but I don’t see any casters?

The units come with casters preassembled underneath the pallet.

What type of environment is best suited for this reach-in?

It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Main Street refrigeration with a labor warranty purchased prior to May 15th, 2024, is warranted for 6-month parts & labor / 5-year compressor. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Customer Reviews

1.0

Rated 1 out of 5 stars

1 Customer Reviews

0 reviews rated this 5 out of 5 stars.

0 reviews rated this 4 out of 5 stars.

0 reviews rated this 3 out of 5 stars.

0 reviews rated this 2 out of 5 stars.

1 reviews rated this 1 out of 5 stars.

Frequently Mentioned

  • freezers
  • buyer
  • compressor
  • delivered
  • fast
  • freezer
  • honor
  • installed
  • kitchenreadywarrantycom
  • once
Rated 1 out of 5 stars
Rated 1 out of 5 stars

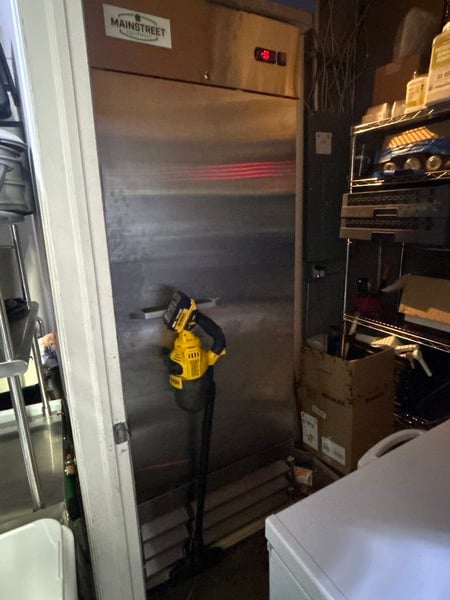

Review by
