Product Overview
- Cleans up to 223 racks per hour using 0.35 gallons of water per rack
- Energy recovery exhaust system captures steam to preheat incoming water
- Generous 19 3/4" clearance and 22" pre-wash section
- Pre-wash features 3 upper and 1 lower pre-wash arms
- Wash arms are self-cleaning; Dual Rainbow Rinse features arched rinse arm
- Automatic operation with auto-fill and digital LED control panel
- Right to left operation
- 230V, 3 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$14.99/Each
$14.99/Each
$118.99/Case
$184.49/Each
Out Of Stock$61.99/Case
$82.49/Case
$178.99/Case
$122.99/Case
- Quantity
- 1/Each
- Shipping Weight
- 1193 lb.
- Width
- 86 Inches
- Depth
- 30 Inches
- Height
- 82 Inches
- Amps
- 115.5 Amps
- Hertz
- 60 Hertz
- Phase
- 3 Phase
- Voltage
- 230 Volts
- Booster Wattage
- 27 Kilowatts
- Conveyor Horsepower
- 1/4 HP
- Direction
- Right to Left
- Features
- Booster Heater Included Made in America NSF Listed
- High or Low Temp
- High Temp
- Minimum Water Inlet Temperature
- 55 Degrees F (110 Recommended)
- Plug Type
- Hardwire
- Racks Per Hour
- 223
- Type
- Conveyor Dishwashers
- Wash Horsepower
- 3 HP
Customer questions about this product
How can I be sure that this product will fit my space?
Can this item fit through a standard height 80" doorway ?

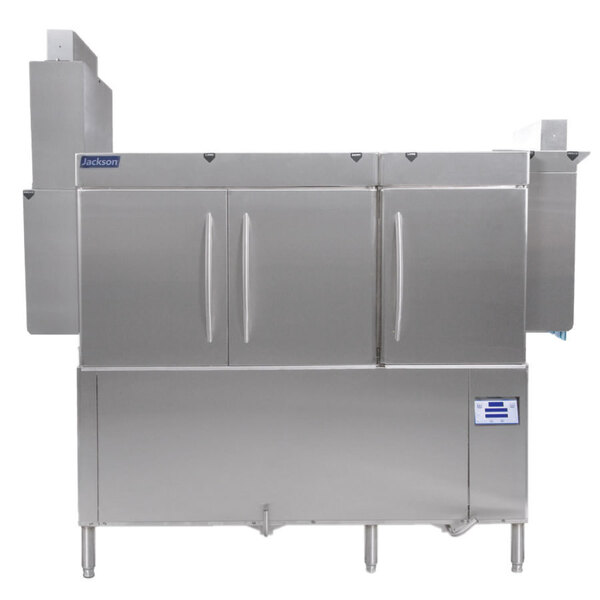

Jackson RACKSTARH R/L 66 ER 230/3 Details
The Jackson RackStar 66 high temperature right to left conveyor dish machine can clean up to 223 racks per hour! Since each rack requires only 0.35 gallons of water, this machine helps to efficiently reduce your water bill, saving you money for other expenses around the kitchen. With the exclusive "Energy Guard" system, the machine only operates when a rack is being washed or rinsed, again saving water and energy.
This dishwasher also features an energy recovery system to make the best use of the energy you put into the unit. It utilizes exhaust heat and steam that is then repurposed to preheat the incoming cold water. By preheating the incoming water, it makes sure that it is warm before it reaches the booster heater so that less energy is then required to heat it to proper temperatures.
Featuring 19 3/4" of clearance, this dish machine accommodates large sheet pans, mixing bowls, and other food preparation and serving supplies. Once in the machine, dishes encounter the unit's 22" pre-wash section that's outfitted with a total of 4 pre-wash arms, 3 upper and 1 lower. In the wash section, the dishes are then processed by the self-cleaning wash arms, which provide superior wash action. The subsequent "Rainbow Rinse" boasts an arched rinse arm to guarantee consistent, thorough rinsing. A self-draining stainless steel wash pump delivers maximum performance, eliminating wash water, while you use the exhaust vent fan control to manipulate the fan to best suit your facility's needs.
Fully automated, the unit is framed with sleek, durable stainless steel with splash shields, adjustable vent cowl collars, and stainless steel legs and strainer pans. It also features an efficient 27kW booster heater and double-wall insulated doors that help to trap heat inside the unit and keep the surrounding area cool and comfortable. This particular unit operates from right to left and uses an electric heat tank. It requires a 230V, 3 phase electrical connection.
Overall Dimensions:
Width: 86"
Depth: 30"
Height: 82"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Need Parts & Accessories?
Show replacement parts and accessories for Jackson RACKSTARH R/L 66 ER 230/3 today!
Resources and Downloads for
Jackson RACKSTARH R/L 66 ER 230/3
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
