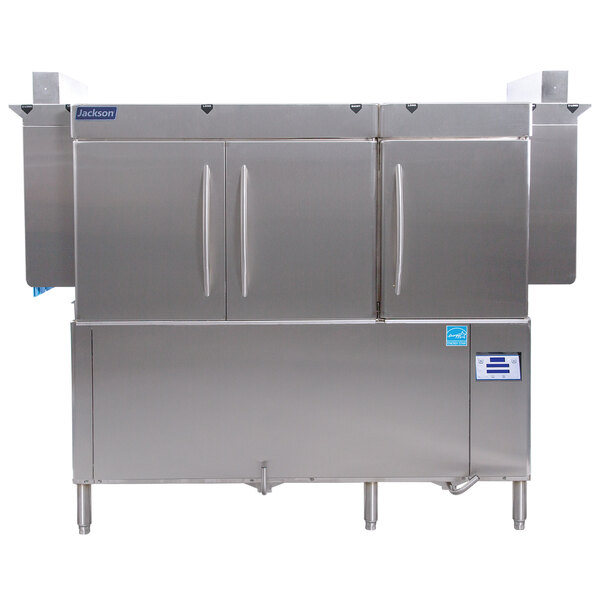

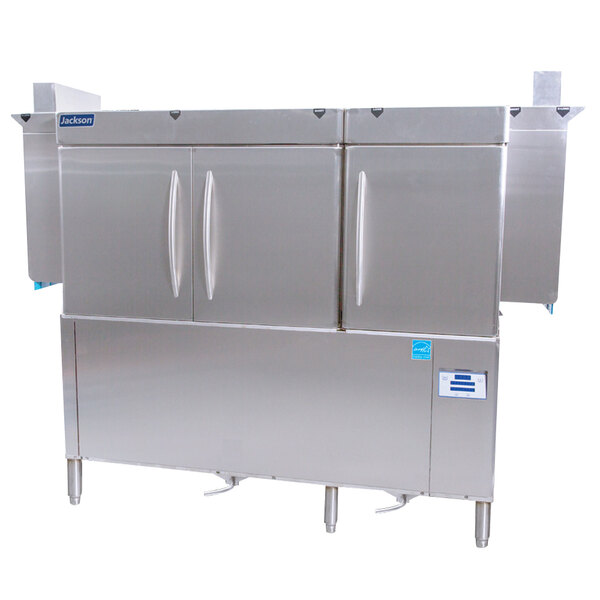

Jackson RackStar 66 Single Tank High Temperature Conveyor Dish Machine - Left to Right - 230V, 3 Phase
Installation Services
Special Order Shipping
An estimated delivery date will be provided after placing the order
Product Overview
- Cleans up to 223 racks per hour using 0.35 gallons of water per rack
- Generous 19 3/4" clearance and 22" pre-wash section
- Pre-wash features 3 upper and 1 lower pre-wash arms
- Wash arms are self-cleaning; Dual Rainbow Rinse features arched rinse arm
- Automatic operation with auto-fill and digital LED control panel
- Sleek stainless steel design and doors with double-wall insulation
- Energy Guard controls and exhaust vent fan control
- 2 hp pre-wash pump motor; 3 hp wash pump motor
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items
$15.99/Each
$15.99/Each
$122.49/Case
$92.99/Case
$119.99/Each
$138.49/Case
$99.99/Case
$108.99/Case
- Quantity
- 1/Each
- Shipping Weight
- 1115 lb.
- Width
- 86 Inches
- Depth
- 30 Inches
- Height
- 68 1/2 Inches
- Conveyor Length
- 66 Inches
- Drain Height
- 4 7/8 Inches
- Amps
- 50.5 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 230 Volts
- Wattage
- 15 Kilowatts
- Conveyor Horsepower
- 1/4 hp
- Conveyor Speed
- 6.07 Feet Per Minute
- Direction
- Left to Right
- Features
- Made in America NSF Listed
- High or Low Temp
- High Temp
- Interior Clearance
- 19 3/4 Inches
- Minimum Water Inlet Temperature
- 110 Degrees F (140 Recommended)
- Plug Type
- Hardwire
- Racks Per Hour
- 223
- Type
- Conveyor Dishwashers
- Wash Horsepower
- 3 hp
- Wash Tank Capacity
- 25 gal.
- Water Inlet Size
- 1/2 Inches
- Water Temperature
- 160 - 180 Degrees F
- Water Usage
- 0.35 Gallons Per Rack
Jackson RACKSTAR HT L/R 66 230/3 Details
The Jackson RackStar 66 high temperature left to right conveyor dish machine can clean up to 223 racks per hour! Since each rack requires only 0.35 gallons of water, this machine helps to efficiently reduce your water bill, saving you money for other expenses around the kitchen. With the exclusive "Energy Guard" system, the machine only operates when a rack is being washed or rinsed, again saving water and energy.
Featuring 19 3/4" of clearance, this dish machine accommodates large sheet pans, mixing bowls, and other food preparation and serving supplies. Once in the machine, dishes encounter the unit's 22" pre-wash section that's outfitted with a total of 4 pre-wash arms, 3 upper and 1 lower. In the wash section, the dishes are then processed by the self-cleaning wash arms, which provide superior wash action. The subsequent "Dual Rainbow Rinse" boasts an arched rinse arm to guarantee consistent, thorough rinsing. A self-draining stainless steel wash pump delivers maximum performance, eliminating wash water, while you use the exhaust vent fan control to manipulate the fan to best suit your facility's needs.
Fully automated, the unit is framed with sleek, durable stainless steel with splash shields, adjustable vent cowl collars, and stainless steel legs and strainer pans. It also features an efficient 15kW wash tank heater and double-wall insulated doors that help to trap heat inside the unit and keep the surrounding area cool and comfortable. This particular unit operates from left to right and uses an electric heat tank. It requires a 230V, 3 phase electrical connection.
Overall Dimensions:
Width: 86"
Depth: 30"
Height: 68 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
