$62,964.00/Each

Contact us for details

Ships free with Plus

Start a Live Chat(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)

Due to a manufacturer's price increase, this price will increase by 3.00% on 01/01/25

Accessories & Options

Earn up to $1,888.92 back (188,892 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Uses .77 gallons per rack
  • Up to 287 racks per hour
  • 25" clearance to accommodate larger items
  • Adjustable conveyor speed allows for extended wash and rinse for heavy soil
  • Self-draining stainless steel wash pumps
  • Incoming water pressure regulator
  • Stainless steel splash shields on both ends
  • 230V, 3 Phase

Shipping Restrictions

This item cannot ship to CO, DC, MA, NJ, NV, NY, OR, RI, VT or WA
UPC Code:400011746278

Jackson AJ100H L-R 230/3 Specs

Quantity
1/Each
Shipping Weight
1150 lb.
Width
116 Inches
Depth
25 Inches
Height
75 1/2 Inches
Conveyor Length
100 Inches
Amps
80.7 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
230 Volts
Conveyor Horsepower
1/4 HP
Conveyor Speed
8 Feet Per Minute
Direction
Left to Right
Features
Made in America  NSF Listed
High or Low Temp
High Temp
Interior Clearance
25 Inches
Minimum Water Inlet Temperature
110 Degrees F
Plug Type
Hardwire
Racks Per Hour
287
Rinse Horsepower
2 HP
Type
Conveyor Dishwashers
Wash Horsepower
2 HP
Wash Tank Capacity
15.4 gal.
Water Inlet Size
3/4 Inches
Water Usage
0.77 Gallons Per Rack

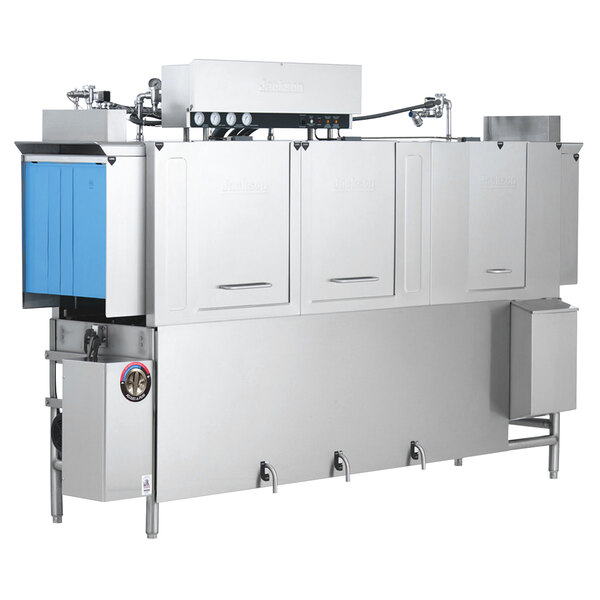

Jackson AJ100H L-R 230/3 Details

The Jackson AJ-100 dual tank high temperature conveyor dishmachine can clean up to 287 racks per hour! With 25" of clearance, it is able to accommodate oversize sheet pans, mixing bowls, and other large kitchen items.

A powerful 36" pre-wash section uses specially designed upper and lower arms to effectively remove food soil, while a 15 kW wash tank heater helps maintain proper water temperatures.

The Jackson AJ-100 conveyor dish machine features completely self-draining pre-wash, wash, and recirculating rinse pumps, and externally operated lever drains. Its exclusive "Energy Guard" system operates the machine only when a rack is being washed or rinsed, saving water and energy. The Adjust-A-Peak system allows the user to adjust the conveyor speed to quicken wash time for light washes, or slow wash time down for heavily-soiled loads.

Other useful features include easy-to-use, exclusively electromechanical controls, standard splash shields on both ends of the machine to eliminate messes, heavy gauge stainless steel construction for increased durability, and an auto-fill feature. It requires a 230V, 3 phase electrical connection.

Overall Dimensions:
Width: 116"
Depth: 25"
Height: 75 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

How can I be sure that this product will fit my space?

Upon receiving the order, a member of our Special Order Team will contact you to confirm the specifications of your order’s measurements to be sure that your Conveyor Dishwasher will fit exactly as expected.

Is this dishwasher available in all 50 states?

Due to energy regulations this dishwasher is not available in Colorado, District of Columbia, Massachusetts, Nevada, New Jersey, New York, Oregon, Rhode Island, Vermont, and Washington.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

Need Parts & Accessories?

Show replacement parts and accessories for Jackson AJ100H L-R 230/3 today!

Resources and Downloads for
Jackson AJ100H L-R 230/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
