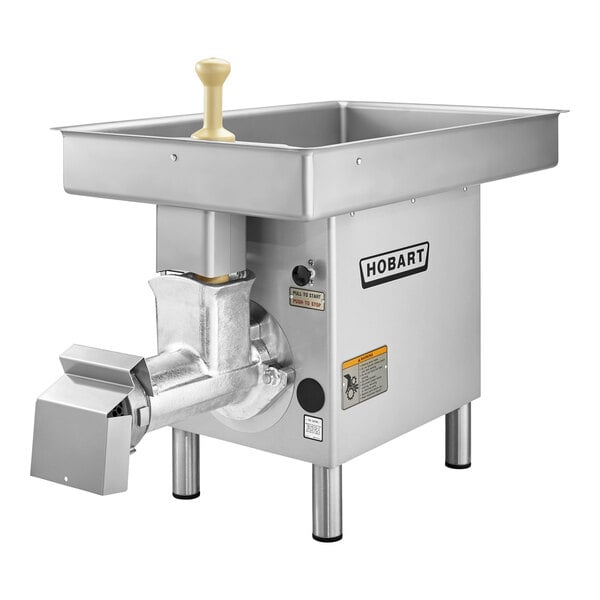

Hobart 4732-35-STD # 32 Meat Chopper with Feed Pan - 3 hp
Contact us for details
Call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)
- Fresh meat capacity of 35 to 40 lb. per minute
- Compact design, epoxy enamel finish
- Includes 14 gauge stainless steel pan
You May Also Need View All Items
#32 Stainless Steel Cross Grinder Knife
$8.39 / Each
#32 Stainless Steel Curved Grinder Knife
plus $7.99 / Each
#32 Stainless Steel Flat Grinder Plate - 1/2"
#32 Stainless Steel Flat Grinder Plate - 1/4"
#32 Stainless Steel Flat Grinder Plate - 1/8"
#32 Stainless Steel Flat Grinder Plate - 3/8"
plus $12.49 / Each
#32 Stainless Steel Sausage Stuffer Plate
plus $14.99 / Each
#32 Sausage Stuffer Flange and 3/4" Stuffer Tube for #32 Meat Grinders
plus $2.99 / Each
The Hobart model 4732 chopper is designed to grind 35-40 pounds of fresh or tempered frozen, up 24 degrees Fahrenheit meat per minute through a 1/8" plate. It uses a 3 horsepower Hobart-built motor and is available for single or three phase service. A tin feed pan is standard equipment. Cut the meat into chunks about the size of a fist. And place in the feed pan. The fineness of cut depends on the size holes in the chopper plate. The knife and plate must be kept clean and sharp for a fine cut. The tightness of the adjusting ring does not regulate fineness of cut. Therefore, only moderate tightness is recommended. The adjusting ring should be hand tight.
The meat deflector should be placed over the adjusting ring. Start the machine by pulling the start/stop switch knob. Feed meat under the guard and into the feed pan opening. Warning: Never place hands in the feed pan opening. Use the feed stomper. The feed stomper should be used to dislodge over sized pieces and to dislodge meat which may become stuck in the feed pan opening, or cylinder opening. It is not necessary to force meat through the chopper. When the product is run through the chopper for a second time, more speed is attained by feeding small quantities at a time. Allow the machine to feed at its own pace.
The chopper should be thoroughly cleaned at the end of each day, or any time the machine is not to be used for an extended period of time. To disassemble for cleaning, disconnect the electrical power supply. Fold the meat deflector straight up to remove. Using the spanner wrench, loosen the adjusting ring, then unscrew and remove the adjusting ring with both hands. Place it in the sink for cleaning. Hook the spanner wrench around the plate stud, and pull the worm end out of the cylinder. Then remove the plate, the knife, and then the worm.
Take the parts to a sink for cleaning. Using the spanner wrench, loosen but do not remove the cylinder nuts. With one hand on the bottom of the cylinder for support, it's heavy, turn the cylinder clockwise and remove to the sink. The feed pan is permanently attached to the machine, and is designed to be cleaned in place. To clean the feed pan, place a bucket under the feed chute of the pan, and thoroughly clean using hot soapy water. After rinsing, the pan should be sanitized.
Thoroughly clean all removed parts in the sink, using hot soapy water, and sanitizer. Wipe the machine housing with a damp cloth. Prior to reassembly, a light coating of tasteless mineral oil should be applied to the inside of the cylinder, the threads on the cylinder and adjusting ring, worm edges, knife and plate, and any other exposed non-plated metal surfaces.
To reassemble the machine, first install the cylinder. With the cylinder in position, rotate it counterclockwise until the ears are under the cylinder nuts. Tighten the cylinder nuts finger tight. Slide the worm on the cylinder and rotate it to engage the square shag with the attachment drive. With the spanner wrench, tighten the cylinder nuts. Caution: Do not over tighten the cylinder nuts. Install the knife, cutting edges out. And the plate. Screw the adjusting ring on hand tight. Store the feed stomper here.
This concluded operator training for the Hobart model 4732 chopper. To obtain service and parts information concerning this chopper, contact your local Hobart service office.
Learn how to properly assemble, clean, and operate your Hobart model 4732 chopper with this informative, step-by-step video.
|Hobart 4732-35-STD Specs|
|Width||23 1/2 Inches|
|Depth||46 3/16 Inches|
|Capacity||35 - 40 lb. per minute|
|Type||Meat Choppers / Grinders|
Customer questions about this product
- What do I need to do to complete my order for this meat grinder / chopper?
- Under “Accessories & Options” (top right of the page), any fields marked with an asterisk (*) MUST be selected at time of order; you need to choose one of the available options in that field for the product to work properly. However, you can find all of our available options on the site too. If, for example, you wanted to order several different grinder plate sizes, you can find additional ones in our Meat Grinder Accessories category!
Hobart 4732-35-STD Details
For rapid, on-demand meat chopping for processing fresh, boned meat, choose the Hobart 4732-35-STD # 32 meat chopper! This compact-design chopper can be fed at a rapid pace with continuous chopping action. Plus, it won't mash or crush meat, allowing food product to keep its natural color and flavor! This chopper has a fresh meat capacity of 35 to 40 lb. per minute through a 1/8" plate, and 25 to 30 lb. of second cutting beef per minute through a 1/8" plate (plates sold separately).
- Includes 14 gauge stainless steel feed pan with guard
- Designed for use with standard # 32 knives and plates (sold separately)
- Powered by a 3 hp motor
- Oil bath transmission with double lip seal to prevent loss of oil and moisture damage
- All food contact surfaces are easily cleanable
- Also features a magnetic-type contractor, # 32 tinned chopping end and feed stomper, and waterproof junction box
- Requires a 230V single phase electrical connection; connection is a 3/4" female conduit thread
Width: 23 1/2"
Depth: 46 3/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date,
please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
