Other Available Voltages:
- 6 gallon storage capacity
- Castone lined tank backed by 10 year limited warranty
- 9 kW
- 480V, 3 Phase
- Shipping Weight
- 118 lb.
- 13 Inches
- 20 3/4 Inches
- 19 3/4 Inches
- 18.8 Amps
- 60 Hertz
- 3 Phase
- 480 Volts
- 9 Kilowatts
- Made in America
- Flow Rate
- 52 - 90 GPH
- Plug Type
- Power Type
- Tank Capacity
- 6 Gallons
- Medium Duty
Customer questions about this product
Can this booster water heater replace a primary water heater?
No, it is not designed for that purpose. This unit should only be used as a secondary water heater.
Hatco C-9 480/3 Details

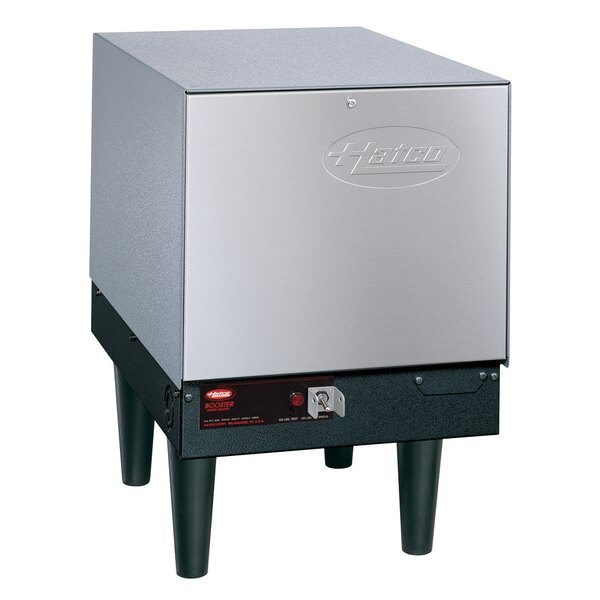

The space saving Hatco C9 9 kW compact booster water heater has a 6 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware.
The Hatco C9 electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing.
Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.
Overall Dimensions & Specs:
Depth: 20 3/4"
Height (including legs): 19 3/4"
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 90 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 52 GPH
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
